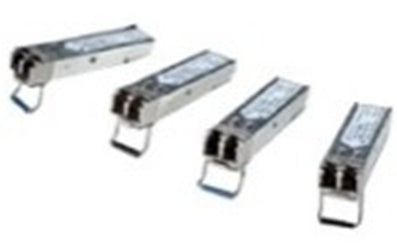

Cisco SFP-OC48-IR1 | 2.5G OC-48/STM-16 SFP Transceiver, 1310nm, 15km
SKU:SFP-OC48-IR1
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This OC-48/STM-16 intermediate-reach SFP transceiver is part of the Cisco SFP optics range for Packet-over-SONET/SDH (POS) and ATM applications. It is built for intermediate-reach SONET/SDH links of about 15 km over single-mode fibre, plugging into SFP-based POS, TDM and ATM interfaces on Cisco routers and shared port adapters.
The module runs at 2.488 Gbps (OC-48/STM-16) with a 1310 nm class transmitter covering 1260 to 1360 nm and a dual LC/PC connector. Transmit power is 0 to -5 dBm and receive power range is 0 to -18 dBm, with a 1 dB optical path penalty. Digital Optical Monitoring reports optical output power, optical input power, temperature, laser bias current and supply voltage. It is rated for a case temperature of -5 to 85 C and meets the GR-253, ITU G.957 and G.707 optical standards.
It is listed for use with SPA-1XOC48-ATM, SPA-1XOC48-POS/RPR and the Cisco 10720 (10720-RPR-SFP). The module is powered by the host slot, so no separate power supply is needed.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable SFP form factor for Cisco router POS, TDM and ATM interfaces
- Compatible with SONET/SDH standards
- Digital diagnostic monitoring of output power, input power, temperature, laser bias current and supply voltage
- Extended case temperature range of -5 to 85 C
- Class 1 laser safety rating
- Dual LC/PC connector for single-mode fibre
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Data rate: OC-48/STM-16 (2.488 Gbps)
- Reach: Intermediate-Reach, 15 km typical
- Fibre type: Single-mode
- Transmitter wavelength range: 1260 to 1360 nm (1310 nm class)
- Transmit power range: 0 to -5 dBm
- Receiver power range: 0 to -18 dBm
- Optical path penalty: 1 dB
- Connector: Dual LC/PC
- Digital Optical Monitoring: Yes (SFF-8742 MSA digital diagnostics)
- Operating case temperature: -5 to 85 C (23 to 185 F)
- Storage temperature: -5 to 85 C (23 to 185 F)
- Dimensions (H x W x D): 8.6 x 13.7 x 56.5 mm
- Laser safety: Class 1 per IEC60825-1 and CFR 21, Part 1040.01
- Optical standards: GR-253, ITU G.957, G.707
FAQs
Q: What fibre does this SFP use?
A: It is designed for single-mode fibre with dual LC/PC connectors. Patch cords with APC connectors are not supported.
Q: Which Cisco platforms does it work with?
A: It plugs into SFP-based POS, TDM and ATM interfaces on Cisco routers. It is listed with the SPA-1XOC48-ATM, SPA-1XOC48-POS/RPR and the Cisco 10720 (10720-RPR-SFP).
Q: Does it support digital optical monitoring?
A: Yes. It supports SFF-8742 MSA digital diagnostics for optical output power, optical input power, temperature, laser bias current and supply voltage.
Q: Does it need a separate power supply or licence?
A: No. It is powered by the host router or shared port adapter slot, and no licence is required for the module itself.
