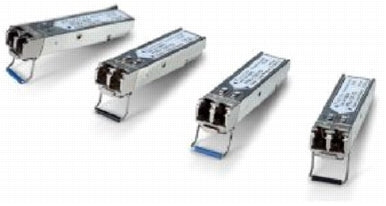

Cisco SFP-OC3-IR1 | OC-3/STM-1 SFP Transceiver, IR-1, SMF 1310nm, 15km

SKU:SFP-OC3-IR1

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This OC-3/STM-1 SFP transceiver is an intermediate-reach optic for Cisco routers that carry Packet-over-SONET/SDH, TDM or ATM traffic. It suits 155 Mbps links run over single-mode fibre in metro and regional networks where a short-reach optic would not span the distance.

The optic operates at 155 Mbps over single-mode fibre in the 1310 nm class (1261 to 1360 nm), with a typical reach of 15 km. Transmit power is -8 to -15 dBm and receiver power is -8 to -28 dBm, with a 1 dB optical path penalty. It uses a dual LC/PC connector and supports digital optical monitoring through SFF-8742 MSA digital diagnostics. The case temperature range is -5 to +85 C, and the module measures 8.6 x 13.7 x 56.5 mm.

It plugs into SFP-based POS, TDM and ATM interfaces on Cisco router products and needs patch cords with PC or UPC connectors. It is a Class 1 laser product and meets the GR-253, ITU G.957 and G.707 optical standards.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable SFP form factor
- Compatible with SONET/SDH and ATM standards
- Real-time digital diagnostics for optical output power, optical input power, temperature, laser bias current and supply voltage
- Extended operating case temperature range of -5 to +85 C
- Class 1 laser safety compliance

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product type: SFP OC-3/STM-1 Intermediate-Reach transceiver
- Data rate: OC-3/STM-1 (155 Mbps)
- Typical distance: 15 km
- Fibre type: single-mode
- Transmitter wavelength range: 1261 to 1360 nm
- Transmit power range: -8 to -15 dBm
- Receiver power range: -8 to -28 dBm
- Optical path penalty: 1 dB
- Connector: Dual LC/PC (patch cords with APC connectors not supported)
- Digital optical monitoring: Yes (SFF-8742 MSA digital diagnostics)
- Operating case temperature: -5 to +85 C (23 to 185 F)
- Storage temperature: -5 to +85 C (23 to 185 F)
- Dimensions (H x W x D): 8.6 x 13.7 x 56.5 mm
- Laser safety: Class 1 laser per IEC60825-1 and CFR 21, Part 1040.01
- Optical standards: GR-253, ITU G.957, G.707

FAQs

Q: What fibre and connector does this optic need?
A: It runs over single-mode fibre at 1310 nm and uses a dual LC/PC connector. Patch cords need PC or UPC connectors, as APC connectors are not supported.

Q: What interfaces does it work with?
A: It plugs into SFP-based POS, TDM and ATM interfaces on Cisco router products.

Q: How far can it reach?
A: The typical distance is 15 km over single-mode fibre, with transmit power of -8 to -15 dBm and receiver power of -8 to -28 dBm.

Q: Does it support digital optical monitoring?
A: Yes. It supports SFF-8742 MSA digital diagnostics, reporting optical output power, optical input power, temperature, laser bias current and supply voltage.

Q: Does this optic need a separate licence?
A: No licence is listed for this transceiver. It is powered from the host SFP port.
