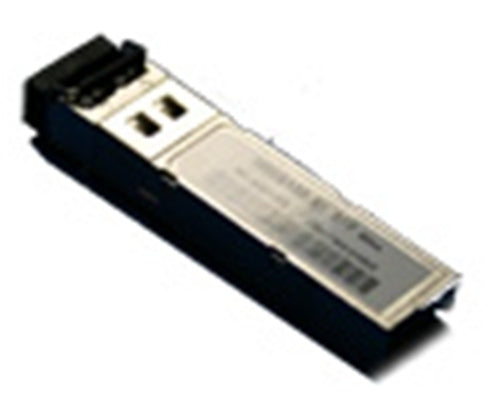

Cisco SFP-OC12-SR | OC-12/STM-4 SFP Transceiver, Single-Mode, 2km, LC

SKU:SFP-OC12-SR

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco SFP-OC12-SR is a hot-swappable SFP transceiver from the Cisco SONET/SDH SFP module family. It provides an OC-12/STM-4 (622 Mbps) short-reach link over single-mode fibre and suits Packet-over-SONET/SDH, TDM and ATM connections on Cisco routers, such as intra-office or campus links.

The module transmits in the 1261 to 1360 nm range (1310 nm nominal) and reaches a typical distance of 2 km. Transmit power is -8 to -15 dBm and the receiver power range is -8 to -23 dBm, with a 1 dB optical path penalty. It uses a dual LC/PC connector, so patch cords with PC or UPC connectors are required. Digital optical monitoring reports output power, input power, temperature, laser bias current and supply voltage. The operating case temperature range is -5 to 85 C, and the module complies with GR-253, ITU G.957 and G.707.

It plugs into SFP-based POS, TDM and ATM interfaces on Cisco routers, including SPA OC-12/STM-4 shared port adapters. No licence or subscription is required. Check the host platform's transceiver compatibility matrix for exact support.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable SFP form factor for Cisco router POS, TDM and ATM interfaces
- Real-time digital diagnostics for optical output power, input power, temperature, laser bias current and supply voltage
- Compliant with SONET/SDH standards
- Extended operating case temperature range of -5 to 85 C
- Short-reach single-mode link at up to about 2 km over dual LC fibre
- Class 1 laser safety rating

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Data rate: OC-12/STM-4 (622 Mbps)
- Form factor: SFP, hot-swappable
- Fibre type: Single-mode
- Typical distance: 2 km
- Transmitter wavelength range: 1261 to 1360 nm (1310 nm nominal)
- Transmit power range: -8 to -15 dBm
- Receiver power range: -8 to -23 dBm
- Optical path penalty: 1 dB
- Connectors: Dual LC/PC (patch cords with APC connectors are not supported)
- Digital optical monitoring: Yes (SFF-8472 MSA digital diagnostics)
- Operating case temperature range: -5 to 85 C (23 to 185 F)
- Storage temperature range: -5 to 85 C (23 to 185 F)
- Dimensions (H x W x D): 8.6 x 13.7 x 56.5 mm
- Laser safety: Class 1 per IEC60825-1 and CFR 21, Part 1040.01
- Optical standards: GR-253, ITU G.957, G.707

FAQs

Q: Does the SFP-OC12-SR need a licence or subscription?
A: No. The module does not require a licence or subscription. It is powered from the host router SFP port.

Q: Which interfaces and platforms does it work with?
A: It plugs into SFP-based POS, TDM and ATM interfaces on Cisco routers, including SPA OC-12/STM-4 shared port adapters. Check the host platform's transceiver compatibility matrix for exact support.

Q: What fibre and patch cords should I use?
A: Use single-mode fibre with dual LC patch cords that have PC or UPC connectors. Patch cords with APC connectors are not supported.

Q: What distance can it cover?
A: It is a short-reach optic with a typical distance of 2 km over single-mode fibre at a nominal 1310 nm wavelength.

Q: Does it support digital optical monitoring?
A: Yes. It reports optical output power, input power, temperature, laser bias current and supply voltage through SFF-8472 digital diagnostics.
