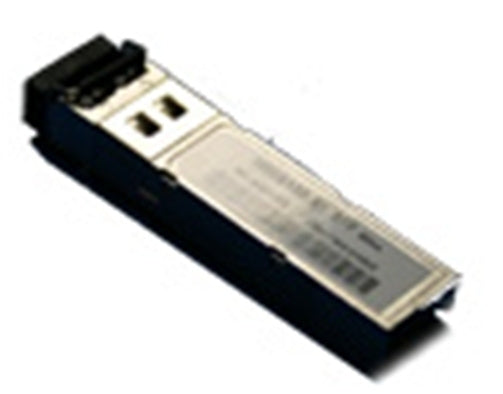

Cisco SFP-OC12-MM | SONET/SDH OC-12/STM-4 SFP Transceiver, MMF, 1310nm, 500m

SKU:SFP-OC12-MM

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The SFP-OC12-MM is a hot-swappable multimode SFP transceiver from the Cisco SONET/SDH SFP module family. It carries OC-12/STM-4 traffic at 622 Mbps and is intended for Cisco router interfaces running Packet-over-SONET/SDH, TDM and ATM, where a short-reach multimode link is needed between two routers.

The optic uses a 1310 nm transmitter (1270 to 1380 nm range) over 62.5/50 um multimode fibre, with a typical reach of 500 m. It connects through a dual LC/PC connector and is rated for Class 1 laser safety. Use patch cords with PC or UPC connectors only, as APC patch cords are not supported. The module supports digital optical monitoring to the SFF-8742 MSA, reporting optical output and input power, temperature, laser bias current and supply voltage.

It plugs into SFP-based POS, TDM and ATM interfaces on Cisco router products and is powered from the host SFP port, so no separate power supply is needed. No licence or subscription is required. Check the platform's SFP installation notes for supported hosts.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable SFP form factor for Cisco router POS, TDM and ATM interfaces
- Compatible with SONET/SDH and ATM standards
- Real-time digital diagnostics for optical output and input power, temperature, laser bias current and supply voltage
- Extended operating case temperature range of -5 to 85 C
- Dual LC/PC connector for standard multimode patch cords
- Class 1 laser safety rating

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Data rate: OC-12/STM-4 (622 Mbps)
- Fibre type: Multimode (MMF)
- Typical distance: 0.5 km (500 m) on 62.5/50 um MMF
- Transmitter wavelength range: 1270 to 1380 nm (1310 nm nominal)
- Optical interface type: OC12-SR0, 1310 nm MMF
- Transmit power range: -14 to -20 dBm
- Receiver power range: -6 to -26 dBm
- Connector: Dual LC/PC (APC patch cords not supported)
- Digital optical monitoring: Yes (SFF-8742 MSA)
- Operating case temperature: -5 to 85 C (23 to 185 F)
- Storage temperature: -5 to 85 C (23 to 185 F)
- Dimensions (H x W x D): 8.6 x 13.7 x 56.5 mm
- Laser safety: Class 1 per IEC60825-1 and CFR 21, Part 1040.01
- Standards: GR-253, ITU G.957, G.707
- Power: Supplied by the host SFP port (3.3 V)

FAQs

Q: Does the SFP-OC12-MM need a licence or subscription?
A: No. It is a passive optical module and requires no licence or subscription.

Q: How is the transceiver powered?
A: It draws power from the host SFP port at 3.3 V. No separate power supply is needed.

Q: What does it plug into?
A: It fits SFP-based POS, TDM and ATM interfaces on Cisco router products. Check the platform's SFP installation notes for supported hosts.

Q: What fibre and patch cords should I use?
A: Use multimode fibre (62.5/50 um) with dual LC connectors. Patch cords must have PC or UPC connectors, as APC patch cords are not supported.

Q: How far can it reach?
A: The typical distance is 500 m over multimode fibre at a 1310 nm nominal wavelength.
