Cisco SFP-H25G-CU2M | 25G SFP28 Passive DAC Cable, 2m, Brown Pull Tab
SKU:SFP-H25G-CU2M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

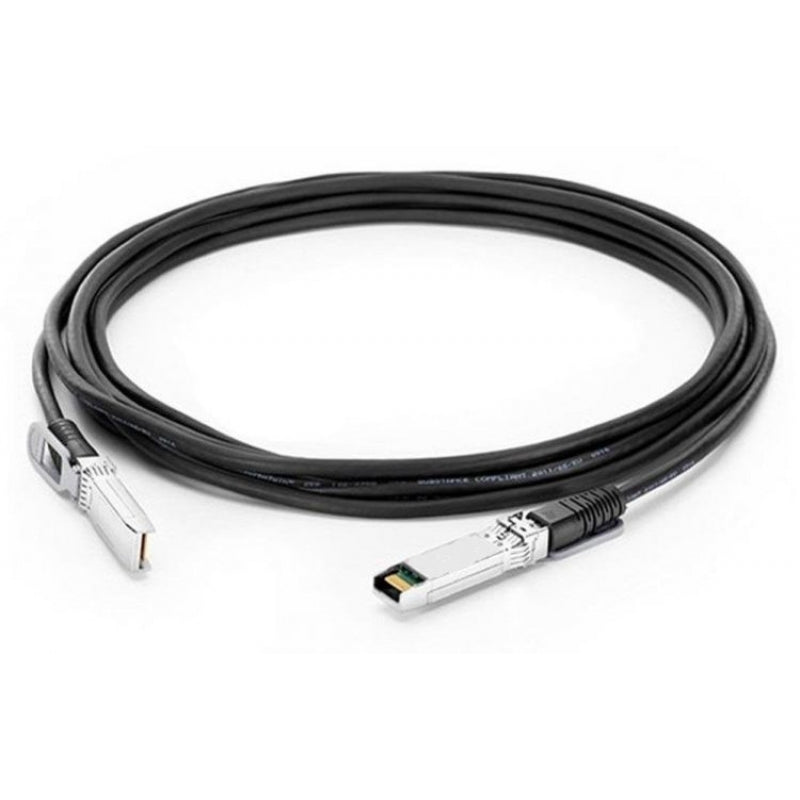

This is a 25GBASE-CR1 passive copper direct-attach cable with an SFP28 connector on each end, built for very short 25 Gigabit Ethernet links between SFP28 ports. It suits switch-to-server and switch-to-switch connections within a rack or across adjacent racks in data centre and high-performance computing networks, where a low-cost copper link is preferred over fibre optics and separate transceivers.
The cable is 2 m long and has a brown pull tab. At this length no host FEC is required on the port, which keeps configuration simple compared with the 2.5 m to 5 m versions of the same cable family that need BASE-R/FC-FEC or RS-FEC. It is a passive assembly with no external power, uses the SFP28 form factor (SFF-8402) and complies with IEEE 802.3by. It supports FCoE with appropriate host software support. The operating temperature range is 0 to 70 C, and the cable carries RoHS 6 compliance.
It is intended for Cisco switches with SFP28 ports and interoperates with other IEEE-compliant 25G interfaces. Platform support can be checked in the Cisco Transceiver Module Group Compatibility Matrix. No licence or subscription is required.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Passive copper design with no external power
- Compliant with IEEE 802.3by for 25G Ethernet
- Tested on Cisco SFP28 ports for performance, quality and reliability
- Cost-effective 25G connectivity within and across adjacent racks
- No FEC needed on the host port at 2 m
- Supports FCoE with appropriate host software
- Interoperable with other IEEE-compliant 25G interfaces
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Type: 25GBASE-CR1 SFP28 to SFP28 passive copper direct-attach cable
- Data rate: 25 Gbps
- Length: 2 m
- Form factor: SFP28 (SFF-8402)
- Cable type: Direct-attach copper cable assembly
- Pull tab colour: Brown
- Host FEC requirement: None at 2 m
- FCoE: Supported with appropriate host software support
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Standards: SFF-8402, SFF-8472, IEEE 802.3-2015, IEEE 802.3by-2016
- Compliance: RoHS 6, cable jacket UL E116441, ELV
FAQs
Q: Does this cable need a licence or subscription?
A: No. It is a passive cable and requires no licence or subscription.
Q: Does the host port need FEC enabled at 2 m?
A: No. At 2 m no host FEC is required. Longer versions of this cable family at 2.5 m and above need BASE-R/FC-FEC or RS-FEC.
Q: How is this cable powered?
A: It is passive and takes no external power. It draws only the small amount of power supplied through the SFP28 port.
Q: Which devices does it work with?
A: It is intended for Cisco switches with SFP28 ports and interoperates with other IEEE-compliant 25G interfaces. Check the Cisco Transceiver Module Group Compatibility Matrix for platform support.
Q: How does it differ from other lengths of the same cable?
A: This is the 2 m version with a brown pull tab. It is the longest length in the family that needs no host FEC.
