Cisco

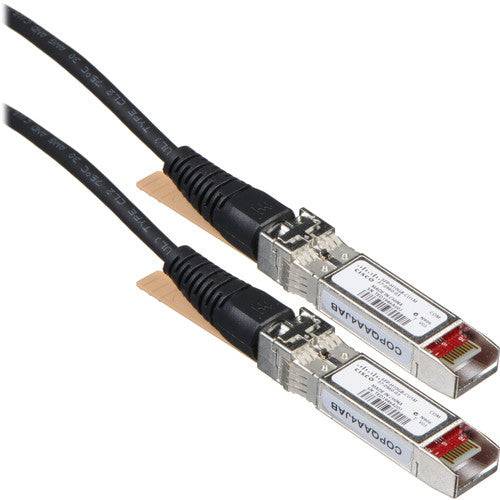

Cisco SFP-H10GB-CU7M | 10G SFP+ DAC Cable, 7m, Passive Twinax

SKU:SFP-H10GB-CU7M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a 10 Gigabit Ethernet direct-attach copper twinax cable with an SFP+ connector at each end. At 7 metres long it suits short links between switches and servers or storage within a rack, or across adjacent racks in data centres and equipment rooms.

It is a passive twinax assembly, so no external power is needed. Power is drawn from the host SFP+ port, and passive Cisco twinax cables draw about 0.1 W. The cable follows the SFP+ MSA SFF-8431 specification, operates across a 0 to 70 C commercial temperature range and carries a UL-compliant cable jacket. It is ELV and RoHS compliant.

It plugs into SFP+ ports on Cisco switches and routers that support SFP+ direct-attach cables. Passive DAC cables can have platform-specific length limits, so check the Cisco Transceiver Module Compatibility Matrix for your platform and software version before deployment.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cost-effective short-reach alternative to optical modules for 10G links
- Suited to connections within a rack and across adjacent racks
- Passive twinax design with no external power required
- Low power draw from the host SFP+ port
- SFP+ MSA SFF-8431 compliant
- ELV and RoHS compliant with a UL-compliant cable jacket

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Data rate: 10 Gigabit Ethernet
- Connectors: SFP+ to SFP+
- Cable type: Twinax copper direct-attach
- Length: 7 m
- Type: Passive twinax
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Connector dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Connector weight: 75 g or less
- Standard: SFP+ MSA SFF-8431
- Cable jacket: UL #E116441 compliant
- Environmental: ELV and RoHS compliant

FAQs

Q: Does this cable need a licence or external power?
A: No. It is a passive twinax cable with no licence requirement, and it draws its power from the host SFP+ port.

Q: What ports does it connect to?
A: It connects SFP+ ports on Cisco switches and routers that support SFP+ direct-attach cables, with one SFP+ connector at each end.

Q: Will a 7m passive cable work on every host?
A: Not necessarily. Passive DAC cables can have platform-specific length limits, so check the Cisco Transceiver Module Compatibility Matrix for your platform and software version.

Q: How far can this cable reach?
A: The cable is 7 metres long, which suits links within a rack or between adjacent racks. For longer runs, use an optical transceiver with fibre.
