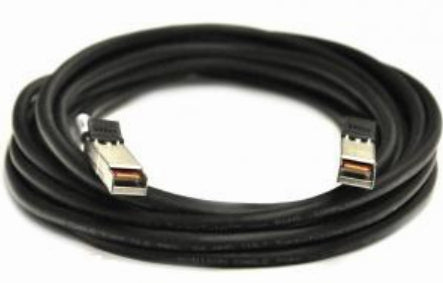

Cisco SFP-H10GB-CU5M | 10G SFP+ Passive DAC Cable, 5m, 24AWG/26AWG, Gray
SKU:SFP-H10GB-CU5M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This Cisco 10GBASE-CU SFP+ direct-attach cable is a passive twinax copper assembly with SFP+ connectors on both ends. At 5 m it suits 10 Gigabit Ethernet links inside a rack or between adjacent racks, such as top-of-rack to server runs in data centres, enterprise wiring closets and service provider transport applications. It belongs to the Cisco 10GBASE SFP+ range.
The cable is a 24AWG or 26AWG twinax copper assembly, passive, with a gray bail latch on the SFP+ connectors. It draws a maximum of 0.1 W, powered from the host SFP+ port, and operates from 0 to 70 C. It follows IEEE 802.3 10-Gigabit Ethernet and the SFP+ MSA SFF-8431 for passive twinax cables. Passive twinax is offered up to 5 m. Longer runs use the 7 m and 10 m active cables or optics.
It works with many Cisco platforms, including Catalyst 2960-S/X/XR, 3560, 3750, 3850 and 4500/4500-X, Nexus 2000/3000/4000/9000, ASR 1000/9000, CRS, MDS 9000 and UCS switches. Not every platform supports every module, so check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for platform and software support.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable, plugs into an SFP+ port on a Cisco switch without powering down
- Passive design with a maximum power draw of 0.1 W from the host port
- Compact SFP+ form factor for high port density per chassis
- Cost-effective 10G connectivity within racks and across adjacent racks over very short distances
- Cisco quality ID lets a Cisco platform identify whether the module is certified and tested by Cisco
- Supports a pay-as-you-populate model for investment protection and ease of technology migration
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product type: 10GBASE-CU passive twinax direct-attach cable
- Connectors: SFP+ to SFP+
- Cable length: 5 m
- Cable: 24AWG or 26AWG twinax copper assembly
- Bail latch colour: Gray
- Maximum power consumption: 0.1 W
- Operating temperature: 0 to 70 C (32 to 158 F), commercial
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Connector dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Standards: IEEE 802.3 10-Gigabit Ethernet
- Standards: SFP+ MSA SFF-8431 (passive twinax cables)
- Safety: cable jacket UL #E116441 compliant
- Compliance: ELV and RoHS compliant
FAQs
Q: Does this cable need a licence or subscription?
A: No. It is a passive cable and needs no licence or subscription.
Q: How is the cable powered?
A: It is passive and draws a maximum of 0.1 W, powered from the host SFP+ port. No external power is needed.
Q: Which Cisco platforms is it supported on?
A: It is supported on many Cisco platforms, including Catalyst 2960-S/X/XR, 3560, 3750, 3850 and 4500/4500-X, Nexus 2000/3000/4000/9000, ASR 1000/9000, CRS, MDS 9000 and UCS switches. Check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for your platform and software release.
Q: What distance does this cable cover?
A: It is a 5 m passive cable, which is the longest passive twinax length offered. For runs of 7 m or 10 m, use the active cables or optics.
Q: How does it differ from other SFP-H10GB cables?
A: This SKU is the 5 m passive version with a 24AWG or 26AWG cable assembly and a gray bail latch. Other SKUs in the range differ by length and by passive or active construction.
