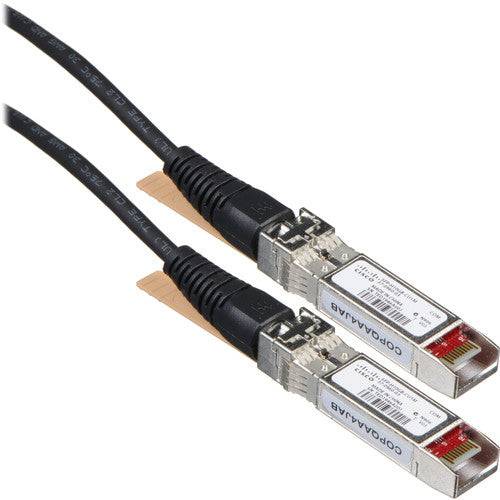

Cisco SFP-H10GB-CU3M-CCL | 10G SFP+ Passive Copper DAC Cable, 3m, 30AWG

SKU:SFP-H10GB-CU3M-CCL

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco 10GBASE-CU SFP+ direct attach cable from the 10GBASE SFP+ Modules range is a passive twinax copper assembly with an SFP+ connector at each end. It provides a low-cost 10 Gigabit Ethernet link for short-reach top-of-rack and adjacent-rack connections in data centres, enterprise wiring closets and service provider transport.

The cable is 3 m long and built from 30 AWG twinax. Being passive, it needs no external power and draws a maximum of 1 W from the host SFP+ port. It is built to the SFP+ MSA SFF-8431 passive twinax specification and the IEEE 802.3 10 Gigabit Ethernet standard, with an orange bail latch. No licence or subscription is required.

It fits Cisco switches and routers with SFP+ ports, and Cisco documents the supported platforms in its transceiver compatibility matrix. The cable is hot-swappable, so it can be fitted or replaced without powering down the host device.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable, plugs into an SFP+ port without powering down the host
- Passive twinax design with no external power required
- SFP+ form factor for high port density per chassis
- Cost-effective 10G connectivity for short runs within and across adjacent racks
- Cisco quality ID lets a Cisco platform identify whether the module is certified and tested by Cisco
- Supports a pay-as-you-populate model for investment protection

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Type: 10GBASE-CU SFP+ to SFP+ direct attach cable
- Cable construction: Passive twinax copper
- Length: 3 m
- Cable gauge: 30 AWG
- Maximum power consumption: 1 W
- Operating temperature: 0 to 70 C (commercial)
- Storage temperature: -40 to 85 C
- Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Bail latch colour: Orange
- Standards: IEEE 802.3 10 Gigabit Ethernet
- Standards: SFP+ MSA SFF-8431 passive twinax
- Safety: Cable jacket UL #E116441 compliant
- Environmental: ELV and RoHS compliant

FAQs

Q: Does this cable need a licence or external power?
A: No. It is a passive cable powered from the host SFP+ port, with a maximum consumption of 1 W, and it needs no licence or subscription.

Q: What equipment does it connect to?
A: It plugs into SFP+ ports on Cisco switches and routers and is built to the SFP+ MSA SFF-8431 passive twinax specification. Cisco documents supported platforms in its transceiver compatibility matrix.

Q: How far can this cable reach?
A: This cable is 3 m long, suited to connections within a rack or between adjacent racks. For longer runs, Cisco also lists other SFP+ twinax lengths and active optical cables.

Q: Can it be fitted while the switch is running?
A: Yes. The cable is hot-swappable, so it can be installed or replaced without powering down the device.

Q: How does this SKU differ from other SFP+ DAC cables?
A: This version is a passive 3 m, 30 AWG assembly. Other lengths and active versions are available as separate part numbers.
