Cisco SFP-H10GB-CU3M | 10GBASE-CU SFP+ DAC Cable, 3m, Passive Twinax

SFP-H10GB-CU3M

Stock Status: Enquire

$82.50 inc. GST
$75.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

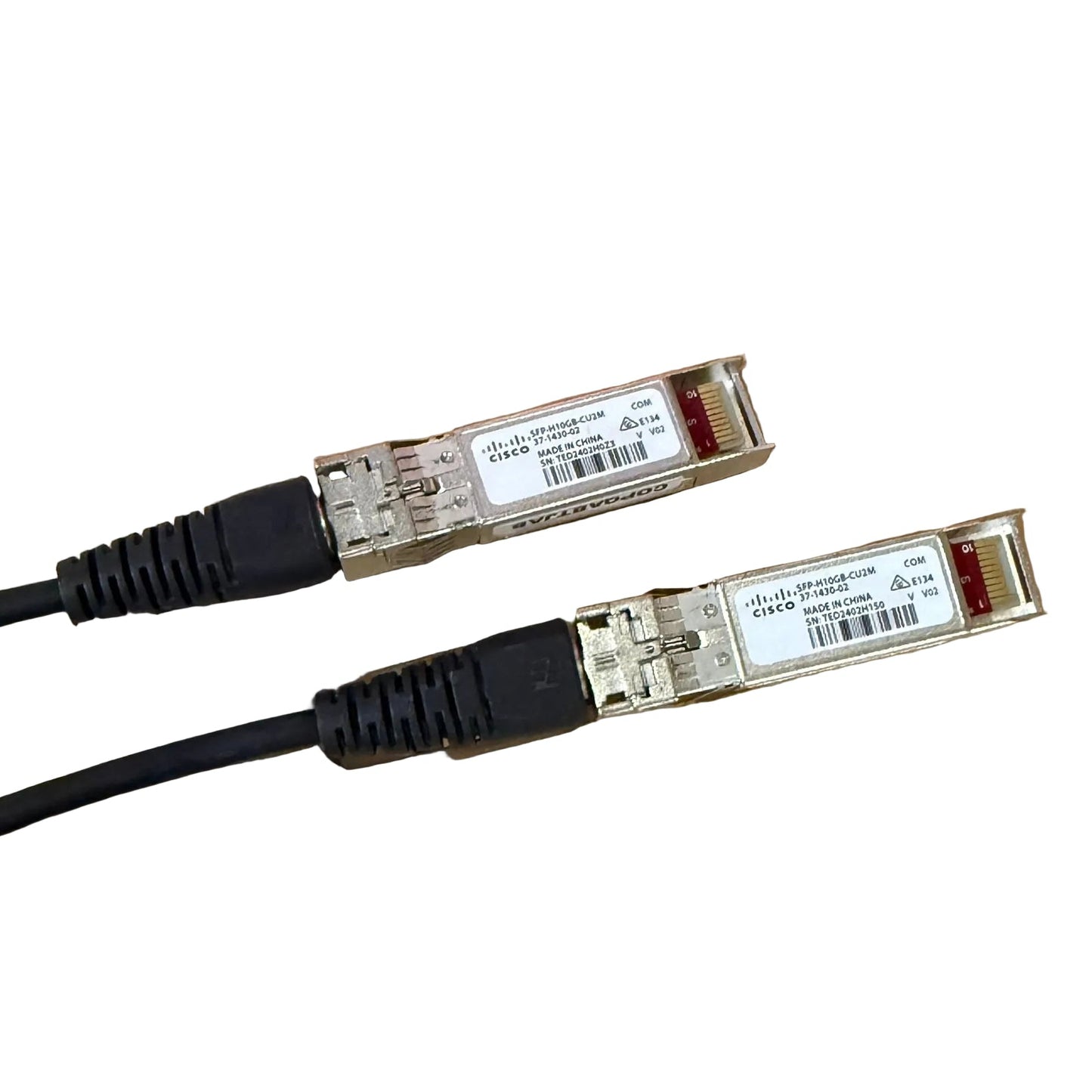

This Cisco 10GBASE-CU SFP+ direct attach cable is a 3 m passive twinax copper assembly with an SFP+ connector at each end. It gives a low-cost 10 Gigabit Ethernet link for top-of-rack server-to-switch connections, links between adjacent racks, enterprise wiring closets and service provider transport.

The cable uses 30 AWG twinax copper and is identified by an orange bail latch. It is passive, so it needs no external power supply and draws about 0.1 W from the host SFP+ port. The SFP+ connector measures 8.5 x 13.4 x 56.5 mm and the cable is rated for 0 to 70 C operation. No licence or subscription is required.

It works with a wide range of Cisco platforms, including Catalyst 2960-S/X/XR, 3560, 3750, 3850 and 4500/4500-X, Nexus 2000/3000/4000/9000, ASR 1000/9000, 7600, CRS, MDS 9000, ME 4500/4900, NCS 6000 and UCS switches. Not every platform supports every module, so check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix. Only Version -02 and later of this cable is qualified on all Cisco platforms.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable SFP+ connectors that plug into SFP+ ports on Cisco switches
- SFP+ form factor gives the greatest port density per chassis
- Cost-effective connectivity within racks and across adjacent racks
- Cisco quality ID lets the host platform identify whether the cable is certified and tested by Cisco
- Passive design with no external power supply required
- Supports a pay-as-you-populate model for investment protection

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product ID: SFP-H10GB-CU3M
- Type: 10GBASE-CU SFP+ to SFP+ direct attach cable
- Cable type: Passive twinax copper, 30 AWG
- Length: 3 m
- Power consumption: 0.1 W
- Bail latch colour: Orange
- Operating temperature range: 0 to 70 C (32 to 158 F)
- Storage temperature range: -40 to 85 C (-40 to 185 F)
- Connector dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Standards: IEEE 802.3 10-Gigabit Ethernet, SFP+ MSA SFF-8431
- Compliance: UL #E116441 cable jacket, ELV, RoHS
- Qualification: Version -02 and later qualified on all Cisco platforms

FAQs

Q: Does this cable need a licence or subscription?
A: No. It is a passive copper cable and needs no licence or subscription.

Q: Does it need external power?
A: No. It is passive and draws about 0.1 W from the host SFP+ port.

Q: Which Cisco platforms is it supported on?
A: It is supported across many Cisco platforms, including Catalyst 2960-S/X/XR, 3560, 3750, 3850 and 4500/4500-X, Nexus 2000/3000/4000/9000, ASR 1000/9000, MDS 9000 and UCS. Check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for your exact platform.

Q: What distance does this cable cover?
A: This SKU is 3 m long, suited to links within a rack or between adjacent racks. Cisco also offers passive twinax in 1, 1.5, 2, 2.5, 4 and 5 m lengths.

Q: What does Version -02 mean for this cable?
A: Only Version -02 and later of this DAC cable is qualified on all Cisco platforms.
