Cisco

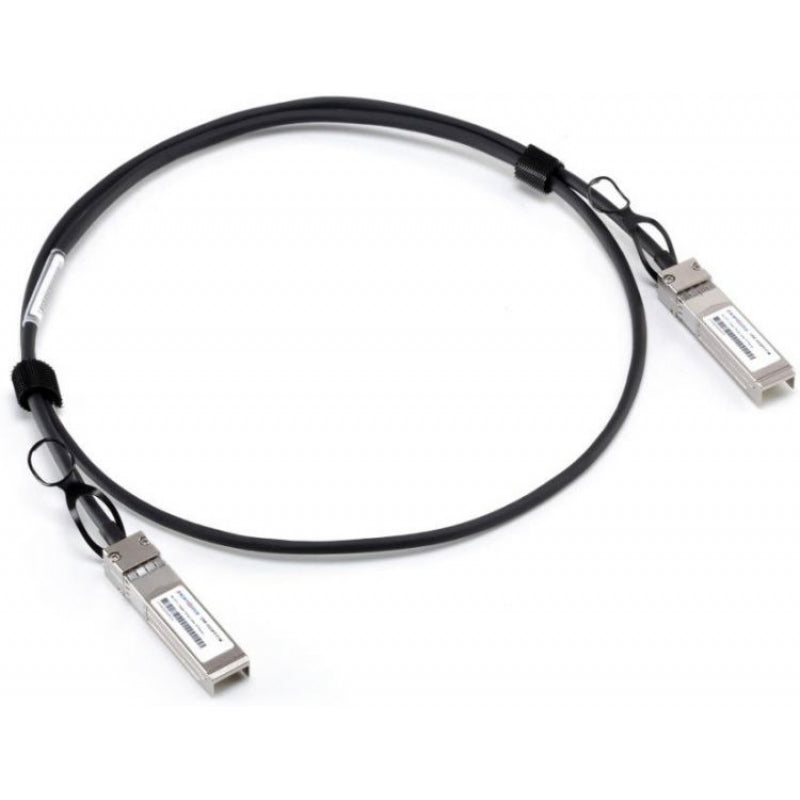

Cisco SFP-H10GB-CU2M | 10G SFP+ Passive DAC Cable, 2m, 30AWG, Brown Bail

SKU:SFP-H10GB-CU2M

$86.90 inc. GST
$79.00 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The SFP-H10GB-CU2M is a passive twinax copper direct-attach cable with SFP+ connectors on both ends, built for 10 Gigabit Ethernet (10GBASE-CU). It suits very short-reach links in data centres and wiring closets, such as server to top-of-rack switch, switch to switch within a rack, and connections across adjacent racks.

This 2 m assembly uses 30 AWG twinax cable with a brown bail latch. Being passive, it needs no external power and draws just 0.1 W from the host SFP+ port, making it a low-cost, low-power alternative to separate optics and fibre for short runs. The transceiver ends are hot-swappable, so a link can be added or moved without powering down the switch.

It fits SFP+ ports across a wide range of Cisco platforms, including Catalyst 2960-S/X/XR, 3560, 3750, 3850 and 4500/4500-X, Nexus 2000/3000/4000/9000, ASR 1000/9000, UCS and MDS 9000. It complies with SFP+ MSA SFF-8431 and IEEE 802.3 10-Gigabit Ethernet. No licence or subscription is required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Compact SFP+ form factor for high port density per chassis
- Hot-swappable, no need to power down the switch to connect or replace
- Passive twinax copper design with no external power requirement
- Cisco quality ID lets the host platform identify the module as certified and tested by Cisco
- Cost-effective very short-reach 10G connectivity within a rack and across adjacent racks
- Supports a pay-as-you-populate approach as port requirements grow

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product number: SFP-H10GB-CU2M
- Type: 10GBASE-CU SFP+ to SFP+ direct-attach cable
- Cable type: Passive twinax copper, 30 AWG cable assembly
- Cable length: 2 m
- Connectors: SFP+ on both ends
- Bail latch colour: Brown
- Wavelength: N/A (copper)
- Power consumption: 0.1 W
- Operating temperature range: 0 to 70 C (32 to 158 F)
- Storage temperature range: -40 to 85 C (-40 to 185 F)
- SFP+ connector dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- SFP+ connector weight: 75 g or less
- Standards: IEEE 802.3 10-Gigabit Ethernet
- Standards: SFP+ MSA SFF-8431
- Safety: cable jacket UL #E116441 compliant
- Environmental: ELV and RoHS compliant

FAQs

Q: Does this cable need a licence or subscription?
A: No. It is a passive copper cable and requires no licence or subscription.

Q: Does it need external power?
A: No. It is a passive cable that draws only 0.1 W from the host SFP+ port.

Q: What is the maximum distance for this cable?
A: This SKU is a 2 m assembly, intended for links within a rack or across adjacent racks.

Q: Which Cisco platforms is it used with?
A: It fits SFP+ ports on platforms including Catalyst 2960-S/X/XR, 3560, 3750, 3850 and 4500/4500-X, Nexus 2000/3000/4000/9000, ASR 1000/9000, UCS and MDS 9000. Check the Cisco transceiver compatibility matrix for your exact host and software release.

Q: How does this differ from other SFP+ DAC lengths?
A: The same passive twinax family is offered in 1, 1.5, 2, 2.5, 3, 4 and 5 m lengths. This SKU is the 2 m, 30 AWG version with a brown bail latch.
