Cisco SFP-H10GB-CU1M-CCL | 10G SFP+ DAC Cable, 1m, Passive, 30AWG
SKU:SFP-H10GB-CU1M-CCL
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

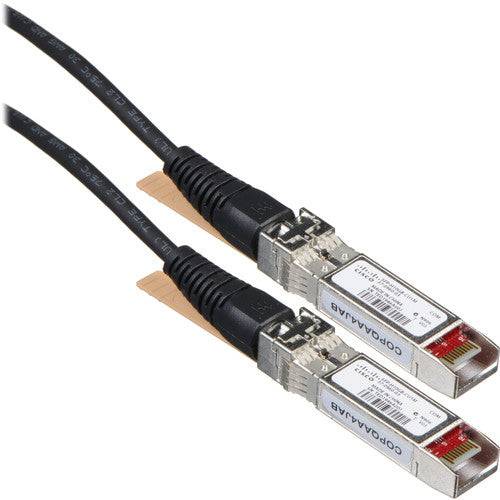

This passive twinax direct attach cable from the Cisco 10GBASE SFP+ range has an SFP+ connector on each end and is 1 metre long. It is built for very short-reach 10 Gigabit Ethernet links within a rack or between adjacent racks, such as top-of-rack switch to server or switch-to-switch connections in data centres, enterprise wiring closets and service provider equipment.
The cable is a 30AWG passive twinax copper assembly that supports 10GBASE-CU over a 1 m run. It draws about 0.1 W from the host SFP+ port and needs no external power, which keeps power use low compared with optical links. It is hot-swappable, so it can be fitted to an SFP+ port without powering down the device. The operating temperature range is 0 to 70 C.
Cisco lists support across Catalyst 2960, 3560, 3750, 3850 and 4500 switches, Nexus 2000, 3000, 4000 and 9000 switches, ASR, CRS and MDS 9000 platforms, and UCS switches. Not every device supports every cable, so check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for your platform. No licence or subscription is required.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Low-cost, low-power 10G connectivity for very short distances within and across adjacent racks
- Passive copper design with no external power required
- Hot-swappable, so it can be fitted to an SFP+ port without powering down
- SFP+ form factor for high port density per chassis
- Cisco quality ID lets the host platform identify the cable as certified and tested by Cisco
- Supports a pay-as-you-populate model for investment protection
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Connectors: 2 x SFP+ (SFP+ to SFP+)
- Data rate: 10 Gigabit Ethernet (10GBASE-CU)
- Cable type: passive twinax copper cable assembly
- Conductor gauge: 30AWG
- Length: 1 m
- Power consumption: 0.1 W
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- SFP+ connector dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Standards: IEEE 802.3 10-Gigabit Ethernet
- Standards: SFP+ MSA SFF-8431 (passive twinax cables)
- Safety: cable jacket UL #E116441 compliant
- Compliance: ELV and RoHS compliant
FAQs
Q: Does this cable need a licence or subscription?
A: No. It is a passive copper cable assembly and needs no licence or subscription.
Q: Does it need external power?
A: No. It is passive and draws about 0.1 W from the host SFP+ port.
Q: Which Cisco platforms does it work with?
A: Cisco lists support on Catalyst 2960, 3560, 3750, 3850 and 4500 switches, Nexus 2000, 3000, 4000 and 9000 switches, ASR, CRS and MDS 9000 platforms, and UCS switches. Check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for your exact device.
Q: How far can this cable reach?
A: This version is 1 metre long, intended for links within a rack or between adjacent racks. Longer lengths in the same family run up to 5 m.
Q: Can it be used for switch-to-switch links?
A: Yes. It suits top-of-rack switch to server connections and switch-to-switch links over very short distances, provided both devices have SFP+ ports.
