Cisco SFP-H10GB-CU1M | 10G SFP+ Passive Twinax DAC Cable, 1m, 30AWG, Beige
SKU:SFP-H10GB-CU1M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

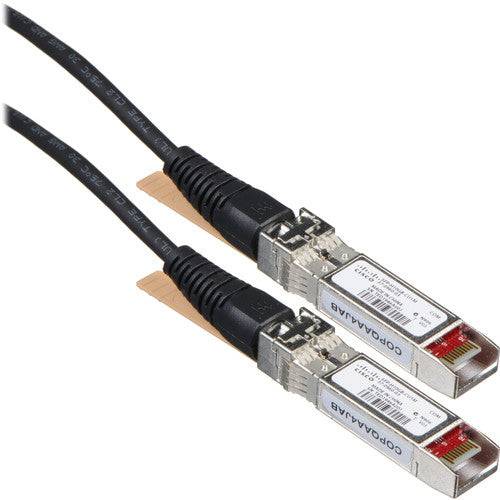

This Cisco 10GBASE-CU SFP+ cable is a 1m passive twinax copper direct-attach assembly with an SFP+ connector at each end. It is built for very short-reach 10 Gigabit Ethernet links within a rack or between adjacent racks, such as top-of-rack switch-to-server and switch-to-switch connections in data centres and enterprise wiring closets. It is a low-cost alternative to optical transceivers where distance is short.
The cable is a 30AWG passive twinax assembly with a beige pull tab, and it draws just 0.1W from the host SFP+ port. Both ends use the SFP+ MSA form factor and the assembly is compliant with IEEE 802.3 10 Gigabit Ethernet and SFP+ MSA SFF-8431 for passive twinax cables. It carries a commercial operating temperature range of 0 to 70 C. No licence or subscription is required.
The cable is supported on a wide range of Cisco platforms, including Catalyst 2960-S/X/XR, 3560, 3750, 3850 and 4500 series, Nexus 2000, 3000, 4000 and 9000 series, UCS, ASR 1000 and 9000, MDS 9000, CRS and 7600. Only Version -02 and later of this cable is qualified on all Cisco platforms.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable SFP+ form factor, so no need to power down when installing or replacing
- Passive twinax copper construction, a cost-effective way to connect within and across adjacent racks
- Cisco quality ID feature lets the host platform identify whether the cable is certified and tested by Cisco
- Supports a pay-as-you-populate model for investment protection
- Compliant with SFP+ MSA SFF-8431 and IEEE 802.3 10GbE
- ELV and RoHS compliant, with a UL-recognised cable jacket
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product type: Passive twinax direct-attach cable, 30AWG
- Cable length: 1 m
- Connector: SFP+ at both ends (SFP+ MSA)
- Data rate: 10 Gigabit Ethernet
- Wavelength: N/A (copper)
- Power consumption: 0.1 W
- Operating temperature: 0 to 70 C (32 to 158 F), commercial range
- Storage temperature: -40 to 85 C (-40 to 185 F)
- SFP+ connector dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- SFP+ connector weight: 75 g or less (typical)
- Pull-tab colour: Beige
- Standards: IEEE 802.3 10-Gigabit Ethernet
- Standards: SFP+ MSA SFF-8431 (passive twinax cables)
- Safety: Cable jacket UL #E116441 compliant
- Environmental: ELV and RoHS compliant
FAQs
Q: Does this cable need a licence or subscription?
A: No. It is a passive cable and requires no licence or subscription.
Q: How is the cable powered?
A: It is a passive cable that draws 0.1 W from the host SFP+ port, so no external power is needed.
Q: Which Cisco platforms support it?
A: It is supported on a wide range of Cisco platforms, including Catalyst 2960-S/X/XR, 3560, 3750, 3850 and 4500, Nexus 2000, 3000, 4000 and 9000, UCS, ASR 1000 and 9000, MDS 9000, CRS and 7600. Not every platform supports every module, so check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for your model.
Q: Which version of this cable is qualified on all Cisco platforms?
A: Only Version -02 and later of this DAC cable is qualified on all Cisco platforms.
Q: How does the 1m cable differ from longer SFP+ DAC lengths?
A: This SKU is the 1m passive 30AWG assembly with a beige pull tab. Other lengths use the same SFP+ twinax design but a different cable length and part number.
