Cisco SFP-H10GB-CU1-5M | 10G SFP+ Direct Attach Cable, 1.5m, Passive, Black
SKU:SFP-H10GB-CU1-5M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

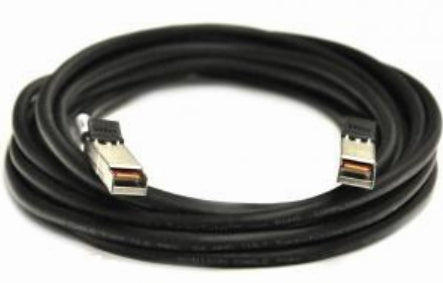

This Cisco 10GBASE-CU SFP+ direct attach cable is a passive twinax copper assembly with an SFP+ connector on each end, built for very short-reach 10 Gigabit Ethernet links. It suits connections within a rack or between adjacent racks in data centre, enterprise wiring closet and service provider environments, and belongs to the Cisco 10GBASE SFP+ range.
The cable is 1.5 m long and uses 30AWG passive twinax, with a black bail latch colour code. It draws a maximum of 0.1 W per SFP+ module, powered from the host SFP+ port, and operates across a commercial temperature range of 0 to 70 C. It meets the SFP+ MSA SFF-8431 specification and IEEE 802.3 10 Gigabit Ethernet.
The cable is supported on a wide range of Cisco platforms, including Catalyst 2960-S/X/XR, 3560, 3750, 3850 and 4500/4500-X switches, Nexus 2000/3000/4000/9000 switches, and ASR 1000/9000 routers. Check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for exact platform and software support.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Industry's smallest 10G form factor for greatest density per chassis
- Hot-swappable: plugs into an Ethernet SFP+ port of a Cisco switch without powering down
- Supports a pay-as-you-populate model for investment protection and ease of technology migration
- Cisco quality ID feature lets a Cisco platform identify whether the module is certified and tested by Cisco
- Cost-effective way to connect within racks and across adjacent racks over very short distances
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details

What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product number: SFP-H10GB-CU1-5M
- Description: 10GBASE-CU SFP+ Cable 1.5 Meter, passive
- Interface: SFP+ to SFP+ direct attach
- Cable type: Passive twinax copper, 30AWG cable assembly
- Cable length: 1.5 m
- Bail latch colour: Black
- Maximum power consumption: 0.1 W per SFP+ module
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- SFP+ connector dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- SFP+ connector weight: 75 g or less
- Standards: SFP+ MSA SFF-8431, IEEE 802.3 10 Gigabit Ethernet
- Safety: Cable jacket of SFP+ copper modules is UL #E116441 compliant
- Environmental: ELV and RoHS compliant
FAQs
Q: Does this cable need external power?
A: No. It is a passive cable powered from the host SFP+ port, with a maximum power consumption of 0.1 W.
Q: Which Cisco platforms support this cable?
A: It is supported on a wide range of Cisco platforms, including Catalyst 2960-S/X/XR, 3560, 3750, 3850 and 4500/4500-X switches, Nexus 2000/3000/4000/9000 switches and ASR 1000/9000 routers. Not every device supports every module, so check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for your platform and software.
Q: What distance can this cable cover?
A: This cable is 1.5 m long, intended for very short links within a rack or between adjacent racks.
Q: How does this differ from other SFP-H10GB-CU lengths?
A: The 1.5 m cable is identified by a black bail latch colour code, and other lengths in the range differ in cable length.
Q: Can it be hot-swapped?
A: Yes. It plugs into an SFP+ port of a Cisco switch without powering the device down.
