Cisco

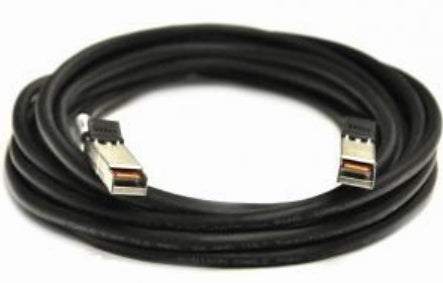

Cisco SFP-H10GB-ACU3M | 10G SFP+ to SFP+ Active Twinax DAC Cable, 3m

SKU:SFP-H10GB-ACU3M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco SFP-H10GB-ACU3M is a 3 metre active copper Twinax direct-attach cable with SFP+ connectors at both ends. It is built for short 10 Gigabit Ethernet links such as top-of-rack server-to-switch connections, switch-to-switch links within a rack or between adjacent racks, and data centre and campus aggregation.

It supports 10 Gigabit Ethernet to IEEE 802.3 10GBASE-CU and the SFP+ MSA. Active cable electronics extend signal quality over copper compared with passive Twinax cables, and the assembly is hot-swappable in the SFP+ form factor. It draws no external power and is powered from the host SFP+ port. The cable carries the Cisco quality identification feature, so the host platform can recognise it as certified and tested by Cisco. Commercial operating temperature is 0 to 70 C.

It is supported across a wide range of Cisco platforms, including Catalyst 2960-S/X/XR, 3560, 3750, 3850 and 4500/4500-X, Nexus 2000/3000/4000/9000, ASR 900/1000/9000, ME 4500/4900, MDS 9000 and UCS switches. Support varies by host platform and software version, so check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for your exact device.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Direct-attach 10G connectivity for very short distances within a rack or across adjacent racks
- Active Twinax copper construction with SFP+ connectors at both ends
- Active electronics extend signal quality over copper compared with passive Twinax cables
- Cisco quality identification feature lets the host platform recognise the cable as certified and tested by Cisco
- Hot-swappable SFP+ form factor
- Powered from the host SFP+ port, with no external power needed
- Supported across a wide range of Cisco Catalyst, Nexus, ASR, MDS and UCS platforms

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Standard: IEEE 802.3 10GBASE-CU, SFP+ MSA
- Data rate: 10 Gigabit Ethernet
- Cable type: Active Twinax copper cable assembly (SFF-8461)
- Connectors: SFP+ at both ends
- Cable length: 3 m
- Power: powered from the host SFP+ port, no external power
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- SFP+ connector dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- SFP+ connector weight: 75 g or less (typical)
- Form factor: hot-swappable SFP+
- Compliance: ELV and RoHS compliant
- Safety: cable jacket UL #E116441 compliant

FAQs

Q: Does this cable need external power?
A: No. It is powered from the host SFP+ port, so no external power supply or adapter is required.

Q: How does an active Twinax cable differ from a passive one?
A: Active Twinax cables include electronics in the connectors that improve signal quality over copper. Passive Twinax cables have no such electronics and are used for shorter runs.

Q: Which Cisco platforms is it supported on?
A: It is supported on many Cisco switches and routers, including Catalyst 2960-S/X/XR, 3560, 3750, 3850 and 4500/4500-X, Nexus 2000/3000/4000/9000, ASR 900/1000/9000, ME 4500/4900, MDS 9000 and UCS switches. Support varies by platform and software version, so check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix.

Q: What is the SFP-H10GB-ACU3M typically used for?
A: It is used for short-reach 10GbE links, such as top-of-rack server-to-switch connections and switch-to-switch links within a rack or between adjacent racks.

Q: What connectors does it use?
A: It has an SFP+ connector at each end, so it plugs directly into SFP+ ports on both devices.
