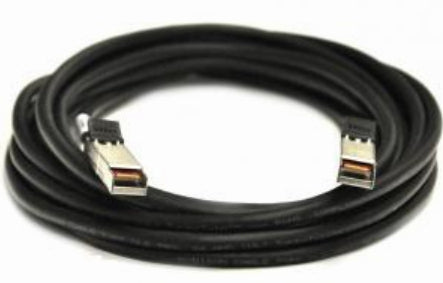

Cisco SFP-H10GB-ACU10M | 10G SFP+ Active DAC Cable, Twinax, 10m, 28 AWG
SKU:SFP-H10GB-ACU10M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This is a Cisco 10GBASE-CU active twinax direct-attach cable with SFP+ connectors on both ends. It gives 10 Gigabit Ethernet links within a rack or between adjacent racks, and is a cost-effective alternative to optical SFP+ modules where the run is short, such as server-to-top-of-rack switch links and switch-to-switch interconnects in data centres and campus wiring closets.
The cable is an active twinax copper assembly, 10 m long and built from 28 AWG cable. The active design extends copper reach to 10 m, beyond the 5 m limit of passive Cisco twinax. It is powered from the host SFP+ port and draws about 1 W, with a commercial operating temperature range of 0 to 70 C. It follows the SFP+ MSA SFF-8431 and SFF-8461 standards for active twinax cables and carries a red connector colour code.
It is supported on a broad range of Cisco platforms, including Catalyst 2960-S/X/XR, 3560, 3750, 3850 and 4500/4500-X, Nexus 2000/3000/4000/9000, ASR 900/1000/9000, 7600, CRS, MDS 9000 and ME 4500/4900. Check the Cisco Transceiver Module Compatibility Matrix for the exact software releases.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Suited to very short distances, within a rack or across adjacent racks
- Cost-effective alternative to optical SFP+ modules for short-reach 10G links
- Active twinax design extends copper reach to 10 m
- Supported on a broad range of Cisco Catalyst, Nexus, ASR, MDS and ME platforms
- Compliant with SFP+ MSA SFF-8461 for active twinax cables
- Powered from the host SFP+ port with no separate power supply
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product type: Direct attach cable (DAC)
- Data rate: 10 Gbps (10GBASE-CU, 10 Gigabit Ethernet)
- Connectors: SFP+ at both ends
- Cable type: Active twinax copper cable assembly
- Cable length: 10 m
- Cable gauge: 28 AWG
- Power consumption: 1 W
- Operating temperature range: 0 to 70 C (32 to 158 F), commercial
- Storage temperature range: -40 to 85 C (-40 to 185 F)
- Connector dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Connector weight: 75 grams or less
- Colour code: Red
- Standards: IEEE 802.3 10-Gigabit Ethernet, SFP+ MSA SFF-8431, SFF-8461
- Compliance: Cable jacket UL #E116441 compliant, ELV and RoHS compliant
FAQs
Q: How does this cable differ from the passive Cisco twinax cables?
A: This is an active twinax assembly, which extends copper reach to 10 m. Passive Cisco twinax cables stop at 5 m.
Q: Does it need a separate power supply?
A: No. It is powered from the host SFP+ port and draws about 1 W.
Q: Which Cisco platforms does it work with?
A: It is supported on Catalyst 2960-S/X/XR, 3560, 3750, 3850 and 4500/4500-X, Nexus 2000/3000/4000/9000, ASR 900/1000/9000, 7600, CRS, MDS 9000 and ME 4500/4900. Check the Cisco Transceiver Module Compatibility Matrix for the exact software releases.
Q: What distance can this cable cover?
A: The cable is 10 m long, suited to links within a rack or between adjacent racks.
Q: What operating temperature range does it support?
A: It has a commercial operating temperature range of 0 to 70 C (32 to 158 F).
