Cisco

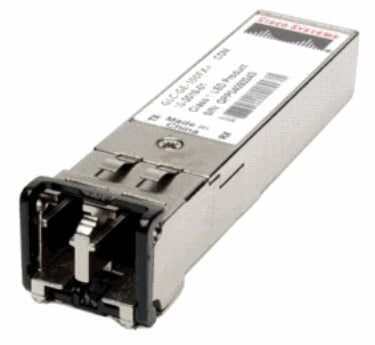

Cisco SFP-CWDM-1590-70 | CWDM SFP Transceiver, 1G, 1590nm, 70km, LC SMF

SKU:SFP-CWDM-1590-70

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The SFP-CWDM-1590-70 is a hot-swappable 1000BASE-CWDM SFP transceiver from the Cisco CWDM SFP range. It operates at a 1590 nm centre wavelength and carries Gigabit Ethernet over single-mode fibre for up to 70 km through a duplex LC connector. It suits enterprise campus links and service provider point-of-presence or hub interconnects across a metro area.

This module is the 1590 nm channel, colour-coded red on the CWDM family, with a 29 dB optical link budget for Gigabit Ethernet. Transmitter output is 0 to +5.0 dBm and receiver input at 1.25 Gbps is -29.0 to -7.0 dBm. It draws power from the host SFP port at 3.3 V, about 220 mA typical. No licence or subscription is required for the transceiver itself.

Eight CWDM wavelengths from 1470 to 1610 nm can be multiplexed over one single-mode fibre pair, so this module is used with a CWDM mux/demux (OADM) passive optical module. The far-end module must use the same 1590 nm wavelength, and the host port must support CWDM optics. Check the Cisco CWDM SFP Compatibility Matrix for host platform support.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable SFP that plugs into an SFP port on a Cisco switch, router or optical transport device
- Supports point-to-point, hub-and-spoke (ring) and mesh CWDM architectures
- Eight CWDM wavelengths (1470 to 1610 nm) can be multiplexed over one single-mode fibre pair
- Up to four channels can be carried over a single fibre strand in a single-fibre configuration
- Colour-coded bail clasp identifies the wavelength, red for 1590 nm
- 70 km reach for longer metro links than the 40 km CWDM variants

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product number: SFP-CWDM-1590-70
- Form factor: SFP (hot-swappable)
- Standard: 1000BASE-CWDM Gigabit Ethernet
- Transmitter centre wavelength: 1590 nm
- Reach: up to 70 km over single-mode fibre
- Connector: Dual LC/PC (PC or UPC patch cords only, APC not supported)
- Colour code: Red (1590 nm)
- Transmitter output power: 0 to +5.0 dBm
- Receiver input power at 1.25 Gbps: -29.0 to -7.0 dBm
- Receiver input wavelength range: 1450 to 1620 nm
- Optical link budget, Gigabit Ethernet: 29 dB
- Side-mode suppression ratio: 30 dB min
- Transmitter extinction ratio: 9 dB min
- Dispersion penalty at 100 km at 1.25 Gbps: 2 dB max
- Supply current: 220 mA typical, 300 mA max
- Input voltage: 3.1 / 3.3 / 3.5 V (min / typ / max)
- Operating temperature: -5 to 70 C
- Storage temperature: -40 to 85 C

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. No licence or subscription is required for the transceiver itself.

Q: What does it need to work at the far end?
A: The matching far-end module must use the same 1590 nm CWDM wavelength, with a CWDM mux/demux (OADM) joining the channels on the link.

Q: Which host ports is it compatible with?
A: It must sit in an SFP port that supports CWDM optics. Check the Cisco CWDM SFP Compatibility Matrix for supported host platforms.

Q: How is it powered?
A: It is powered from the host SFP port at 3.3 V, drawing about 220 mA typical and 300 mA maximum.

Q: What patch cords should I use?
A: Use PC or UPC LC patch cords over single-mode fibre. APC connectors are not supported.

Q: How does it differ from the other CWDM SFPs in the range?
A: This module uses the 1590 nm wavelength (red colour code) with a 70 km reach. Other SFP-CWDM models use different wavelengths, and the 40 km variants have a shorter reach.
