Cisco

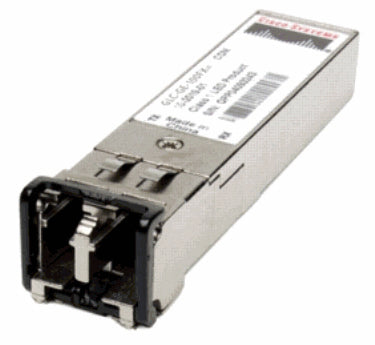

Cisco SFP-CWDM-1530-40 | Optics: 1G SFP, 1000BASE-EX, 1530 nm CWDM, 40 km SMF, LC duplex

SKU:SFP-CWDM-1530-40

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Compact CWDM SFP for Gigabit Ethernet over single-mode fiber. Fixed 1530 nm on the ITU-T CWDM grid, LC duplex interface, and up to 40 km reach (EX). Hot-swappable with DOM/DDM for real-time diagnostics and fully MSA-compliant for broad platform interoperability. Ideal for passive CWDM MUX/DEMUX links, campus distribution, and metro access backhaul.

Features

- 1G CWDM optics with fixed 1530 nm channel for efficient fiber utilization
- Long reach up to 40 km for metro/access and campus backhaul
- LC duplex SMF interface for simple integration
- DOM/DDM for proactive link monitoring
- SFP MSA-compliant for broad platform interoperability
- Hot-swappable design minimizes downtime
- Ideal for passive CWDM MUX/DEMUX deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Can I use this CWDM SFP with a passive CWDM MUX/DEMUX?
A: Yes. It uses a fixed 1530 nm CWDM wavelength aligned to the ITU-T grid and is suitable for passive CWDM multiplexers/demultiplexers.

Q: Is multimode fiber supported?
A: No. This transceiver is designed for single-mode fiber (SMF) with LC duplex connectors.

Q: Does it support digital diagnostics (DOM/DDM)?
A: Yes. It provides DOM/DDM for monitoring parameters such as temperature, supply voltage, TX bias, and optical power.

Q: Is it hot-swappable?
A: Yes. It can be inserted or removed without interrupting chassis operation.

Q: What base standard applies to the 40 km variant?
A: It aligns with 1000BASE-EX reach for up to 40 km over SMF.

Q: Can different CWDM wavelengths interoperate?
A: Yes, when paired through a CWDM MUX/DEMUX. Each end must use matching wavelengths and compatible optics.

Technical Specifications

- Data rate: 1 Gbps (Gigabit Ethernet, 1.25 Gbps line rate)
- Form factor: SFP (MSA-compliant)
- Wavelength: 1530 nm CWDM (ITU-T G.694.2 grid)
- Optical reach: up to 40 km over 9/125 um SMF
- Optical interface: LC duplex
- Fiber type: Single-Mode Fiber (SMF)
- Digital diagnostics: DOM/DDM supported
- Hot-swappable: Yes
- Base standard: 1000BASE-EX (IEEE 802.3z compatible)
- Operating temperature: 0°C to 70°C (commercial)
- Compliance: RoHS, Class 1 laser
