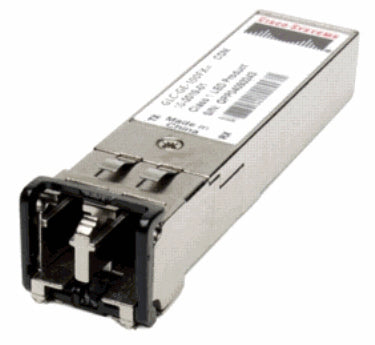

Cisco SFP-CWDM-1510-70 | CWDM 1G SFP Transceiver, 1510nm, 70km, LC SMF
SKU:SFP-CWDM-1510-70
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This Cisco CWDM SFP is a 1 Gigabit Ethernet optic that transmits at 1510 nm over single-mode fibre with a 70 km reach and a duplex LC connector. It is built for adding wavelength channels to an existing fibre pair on the ITU-T CWDM grid, using passive CWDM mux/demux or OADM units for campus, data-centre and metro-access Gigabit Ethernet links.
The 1510 nm wavelength identifies the channel this SKU occupies on the CWDM grid, and the 70 km reach suits long single-mode spans. The family datasheet lists transmitter output power of 0 to +5.0 dBm, receiver sensitivity of -29.0 dBm at 1.25 Gbps and an optical link budget of 29 dB. It fits a standard SFP slot to IEEE 802.3z, draws 220 mA typical from the host at 3.3 V and needs no licence.
It works with Cisco switches, routers and optical transport devices that have SFP ports, and with Cisco CWDM passive mux/demux and OADM units. Check the Cisco CWDM SFP compatibility matrix for supported platforms.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable SFP form factor
- Compliant with the ITU-T G.694.2 CWDM grid
- Needs no configuration and works with passive CWDM mux/demux and OADMs
- Carries up to eight channels over a single-mode fibre pair
- Duplex LC/PC connector for single-mode fibre
- 29 dB optical link budget for long-reach Gigabit Ethernet links
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Type: 1G SFP CWDM transceiver
- Wavelength: 1510 nm CWDM channel
- Reach: 70 km
- Connector: Duplex LC/PC, single-mode fibre
- Host interface: standard SFP slot, IEEE 802.3z
- Transmitter output power: 0 to +5.0 dBm
- Receiver sensitivity at 1.25 Gbps: -29.0 dBm min
- Receiver maximum input: -7.0 dBm
- Receiver input wavelength: 1450 to 1620 nm
- Optical link budget at Gigabit Ethernet: 29 dB
- Dispersion penalty at 100 km, 1.25 Gbps: 2 dB max
- Supply voltage: 3.1 / 3.3 / 3.5 V (min/typ/max)
- Supply current: 220 mA typical, 300 mA max
- Operating temperature: -5 to 70 C
- Storage temperature: -40 to 85 C
FAQs
Q: Does this transceiver need a licence?
A: No. It needs no licence and no configuration, it simply plugs into a compatible SFP slot.
Q: What does it work with?
A: It works with Cisco switches, routers and optical transport devices that have SFP ports, and with Cisco CWDM passive mux/demux and OADM units. Check the Cisco CWDM SFP compatibility matrix for supported platforms.
Q: Can it be used with APC patch cords?
A: No. It uses a dual LC/PC connector, so patch cords with APC connectors are not supported.
Q: How does this SKU differ from other CWDM SFPs?
A: CWDM SFPs share the same form factor and differ by wavelength. This one transmits on the 1510 nm channel with a 70 km reach, so it must be paired with the matching channel on your mux/demux.
Q: How much power does it draw?
A: It is powered by the host SFP slot at 3.3 V, drawing 220 mA typical and 300 mA maximum.
