Cisco

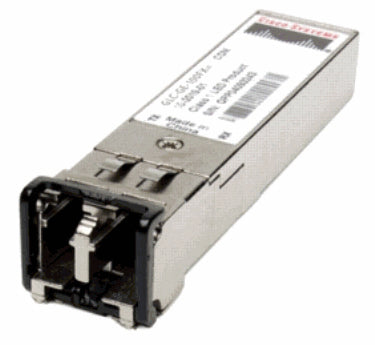

Cisco SFP-CWDM-1510-40 | 1G CWDM SFP Transceiver, 1510nm, 40km, LC SMF

SKU:SFP-CWDM-1510-40

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The SFP-CWDM-1510-40 is a hot-swappable 1000BASE-CWDM SFP transceiver for Gigabit Ethernet over single-mode fibre. It transmits on the 1510 nm channel of the ITU-T G.694.2 CWDM grid and uses a dual LC connector, so it adds a wavelength channel to an existing fibre pair when paired with Cisco CWDM passive mux/demux or OADM modules. It suits enterprise campus links, data-centre interconnect and service provider metro access, POP or hub interconnects.

The optics are rated for up to 40 km over single-mode fibre with a 29 dB optical link budget for Gigabit Ethernet and 28 dB for Fibre Channel. The module is multirate, supporting 1.25 Gbps Gigabit Ethernet as well as 1.06 and 2.12 Gbps Fibre Channel. Transmit power is 0 dBm minimum to 5.0 dBm maximum, and the receiver accepts 1450 to 1620 nm input. It is powered from the host SFP port at 3.3 V with a typical draw of 220 mA, operates from -5 to 70 C, and needs no licence or subscription.

It fits standard SFP ports on supported Cisco switches, routers and optical transport devices. Check the Cisco CWDM SFP compatibility matrix for your platform. Patch cords must be PC or UPC, as APC is not supported, and an inline attenuator may be needed on short fibre runs to avoid overloading the receiver.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports up to eight CWDM channels (1470 to 1610 nm) over a single-mode fibre pair
- Single-fibre point-to-point operation is possible, with up to four channels over one strand
- Works in point-to-point, hub-and-spoke ring and mesh topologies
- Needs no configuration, and the passive CWDM OADMs need no power
- Increases bandwidth on existing fibre without adding new strands
- Can be used alongside other Cisco SFP devices on the same platform

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: Standard SFP, hot-swappable
- Interface: 1000BASE-CWDM Gigabit Ethernet
- Supported rates: Gigabit Ethernet 1.25 Gbps; Fibre Channel 1.06 and 2.12 Gbps
- Standards: IEEE 802.3z; ITU-T G.694.2 CWDM grid
- CWDM wavelength: 1510 nm
- Colour code: Blue
- Reach: Up to 40 km over single-mode fibre
- Connector: Dual LC/PC (APC patch cords not supported)
- Fibre type: Single-mode fibre (SMF)
- Optical link budget: 29 dB (Gigabit Ethernet); 28 dB (Fibre Channel)
- Transmitter output power: 0 dBm min to 5.0 dBm max
- Receiver input power at 1.25 Gbps: -29.0 dBm min to -7.0 dBm max
- Receiver input power at 2.12 Gbps: -28.0 dBm min to -7.0 dBm max
- Receiver optical input wavelength: 1450 to 1620 nm
- Side-mode suppression ratio: 30 dB min
- Transmitter extinction ratio: 9 dB min
- Supply voltage: 3.1 V min / 3.3 V typical / 3.5 V max
- Supply current: 220 mA typical, 300 mA max
- Operating temperature: -5 to 70 C (23 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. It needs no licence or subscription. Install it in a supported SFP port and it needs no configuration.

Q: How is it powered?
A: It draws power from the host SFP port at 3.3 V, with a typical current of 220 mA and a maximum of 300 mA. Cisco CWDM passive mux/demux and OADM modules need no power.

Q: What does it work with?
A: It fits standard SFP ports on supported Cisco switches, routers and optical transport devices, so check the Cisco CWDM SFP compatibility matrix for your platform. Pair it with Cisco CWDM passive mux/demux or OADM modules to combine channels on one fibre pair.

Q: Which patch cords and fibre can I use?
A: Use single-mode fibre with LC duplex patch cords. The connector is PC/UPC and APC patch cords are not supported.

Q: Do I need an attenuator on short links?
A: Possibly. On short fibre runs the received power can exceed the receiver maximum of -7.0 dBm, so an inline attenuator may be needed to avoid overloading it.
