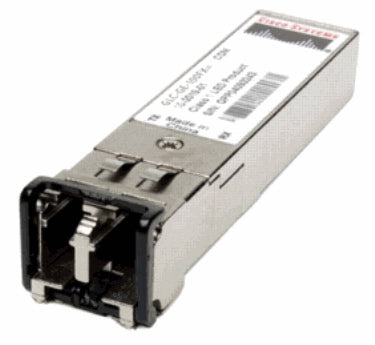

Cisco SFP-CWDM-1470-70 | 1G CWDM SFP Transceiver, 1470nm, SMF, 70km, LC

SKU:SFP-CWDM-1470-70

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco CWDM SFP is a hot-swappable Gigabit Ethernet optical transceiver that transmits at 1470 nm over single-mode fibre with a reach of up to 70 km through a duplex LC connector. It suits enterprise campus links, data-centre interconnect and service-provider metro access, point-of-presence and hub interconnects, in point-to-point, hub-and-spoke, ring and mesh CWDM designs.

The 1470 nm wavelength sits on the ITU-T G.694.2 CWDM grid, so up to eight channels can share a single fibre pair when combined with passive CWDM mux/demux or OADM units. The module uses the standard SFP form factor, is powered from the host port at 3.3 V, and needs no configuration. No licence or subscription is required.

It fits standard SFP ports on supported Cisco switches, routers and optical transport devices, and pairs with Cisco passive CWDM mux/demux and OADM modules on the 1470 to 1610 nm grid. It is also listed as an SFP plug-in option for the Cisco D9900 DCM series. Check the Cisco CWDM SFP Compatibility Matrix for exact platform support.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fits standard SFP ports supporting IEEE 802.3z on supported Cisco platforms
- Compliant with the ITU-T G.694.2 CWDM grid
- Enables up to eight CWDM channels over one single-mode fibre pair
- Works with passive Cisco CWDM mux/demux and OADM units that need no power
- Hot-swappable and requires no configuration
- Can be used alongside other Cisco SFP devices on the same platform

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product number: SFP-CWDM-1470-70
- Description: GbE SFP module 1470 nm (LC, up to 70 km)
- Form factor: Standard SFP (hot-swappable)
- Data rate: 1000BASE Gigabit Ethernet
- Network connector: Dual LC/PC (APC patch cords not supported)
- Fibre type: Single-mode fibre
- Nominal wavelength: 1470 nm (CWDM grid, ITU-T G.694.2)
- Maximum reach: Up to 70 km
- Transmitter centre wavelength range: (x-4) to (x+7) nm, where x = nominal wavelength
- Side-mode suppression ratio: 30 dB min
- Transmitter optical output power: 0 to +5.0 dBm
- Receiver input power at 1.25 Gbps: -29.0 to -7.0 dBm
- Receiver input wavelength: 1450 to 1620 nm
- Transmitter extinction ratio: 9 dB min
- Dispersion penalty at 100 km at 1.25 Gbps: 2 dB max
- Supply voltage: 3.1 to 3.5 V (3.3 V typical)
- Supply current: 220 mA typical, 300 mA max
- Operating temperature: -5 to 70 C (23 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. No licence or subscription is required. It is powered from the host SFP port.

Q: What wavelength and fibre type does it use?
A: It transmits at 1470 nm on the ITU-T G.694.2 CWDM grid and runs over single-mode fibre with a duplex LC connector, up to 70 km.

Q: What does it work with?
A: It works with standard SFP ports on supported Cisco switches, routers and optical transport devices, and pairs with Cisco passive CWDM mux/demux and OADM modules on the 1470 to 1610 nm grid. Check the Cisco CWDM SFP Compatibility Matrix for exact platform support.

Q: Do I need a mux/demux to use it?
A: For a single point-to-point link it is not required, but to run several CWDM channels over one fibre pair you pair it with passive CWDM mux/demux or OADM units. The passive units need no power.

Q: How does it differ from other CWDM SFPs in the range?
A: Each CWDM SFP uses a different nominal wavelength. This one operates at 1470 nm with up to 70 km reach, so each channel on a CWDM link needs its own matching wavelength.
