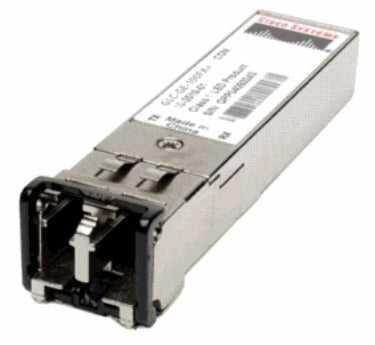

Cisco SFP-CWDM-1470-40 | CWDM 1G SFP Transceiver, 1470nm, 40km, SMF, LC
SKU:SFP-CWDM-1470-40
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This Cisco CWDM SFP transceiver is a hot-swappable 1000BASE-X optic that transmits on the 1470 nm wavelength of the ITU-T G.694.2 CWDM grid over single-mode fibre with an LC connector. It is built for enterprise campus links, data-centre interconnects and service-provider metro access, POP or hub interconnects, where several Gigabit Ethernet channels need to share one fibre pair.
This SKU is the 1470 nm, 40 km variant of the CWDM SFP family. The family supports Gigabit Ethernet at 1.25 Gbps and Fibre Channel at 1.06 and 2.12 Gbps, with a transmitter output power of 0 to +5.0 dBm and a side-mode suppression ratio of 30 dB minimum. It draws 220 mA typical from a 3.3 V supply and operates from -5 to 70 C.
It works with Cisco passive CWDM mux/demux and OADM units, which need no power or configuration, and suits point-to-point, hub-and-spoke ring and mesh topologies. Only PC or UPC patch cords are supported, as APC connectors are not supported.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Carries up to eight CWDM channels (Gigabit Ethernet or Fibre Channel) over one single-mode fibre pair
- Fits standard SFP ports supporting IEEE 802.3z on supported Cisco platforms
- Works with passive Cisco CWDM mux/demux and OADM units that need no power or configuration
- Adds bandwidth on existing fibre without installing new strands
- Can be used alongside other Cisco SFP devices on the same platform
- Supports point-to-point, hub-and-spoke ring and mesh deployments
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: Small Form-Factor Pluggable (SFP), hot-swappable
- Data rate: Gigabit Ethernet 1.25 Gbps; Fibre Channel 1.06 and 2.12 Gbps
- Wavelength: 1470 nm CWDM (ITU-T G.694.2 grid)
- Reach: 40 km
- Fibre type: Single-mode fibre (SMF)
- Connector: Dual LC/PC (PC or UPC patch cords only, APC not supported)
- Transmitter centre wavelength range: (x-4) to (x+7) nm, where x = 1470 nm
- Optical link budget: 29 dB at Gigabit Ethernet; 28 dB at Fibre Channel
- Side-mode suppression ratio: 30 dB min
- Transmitter optical output power: 0 to +5.0 dBm
- Receiver input power at 1.25 Gbps: -29.0 to -7.0 dBm
- Receiver input power at 2.12 Gbps: -28.0 to -7.0 dBm
- Receiver input wavelength: 1450 to 1620 nm
- Transmitter extinction ratio: 9 dB min
- Supply voltage: 3.1 to 3.5 V (3.3 V typical)
- Supply current: 220 mA typical, 300 mA max
- Operating temperature: -5 to 70 C (23 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Standards: ITU-T G.694.2 CWDM grid; IEEE 802.3z 1000BASE-X; FC-PI 10.0
- Safety: Laser Class I (21CFR1040)
FAQs
Q: What does this SFP need on the other end of the link?
A: Pair it with Cisco CWDM mux/demux or OADM passive units on the ITU-T G.694.2 grid, using the matching 1470 nm channel at each end of the multiplexed link.
Q: Does it need external power?
A: No. It is powered from the host SFP port on a 3.3 V supply, drawing 220 mA typical and 300 mA maximum. The Cisco CWDM passive mux and OADM units also require no power.
Q: Which patch cords can I use?
A: Use single-mode patch cords with LC connectors terminated PC or UPC. APC connectors are not supported.
Q: Which host ports does it fit?
A: It fits standard SFP (1000BASE-X) ports on supported Cisco switches, routers and optical transport devices. Check the Cisco CWDM SFP and transceiver compatibility information for your specific host platform.
Q: What is the difference between this SKU and other CWDM SFPs?
A: The CWDM family uses the same optic design across multiple wavelengths. This SKU is the 1470 nm channel, so it must be matched to the 1470 nm port on your mux or OADM.
