Cisco

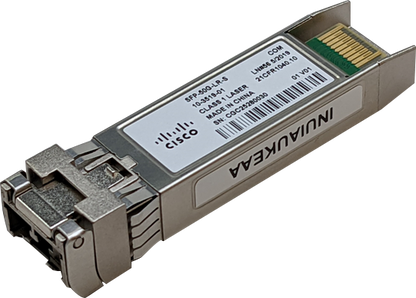

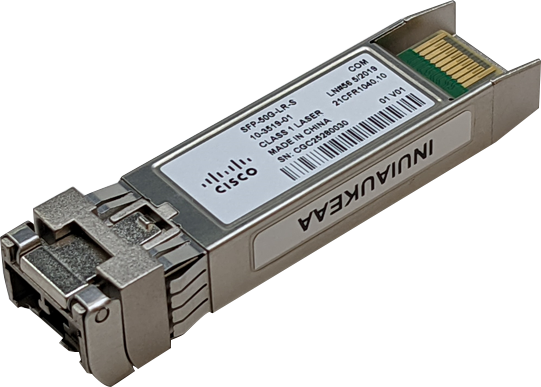

Cisco SFP-50G-LR-S | 50G SFP56 Transceiver, Single-Mode, 10km, LC, LR

SKU:SFP-50G-LR-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco 25/50GBASE-LR SFP56 transceiver carries 50G (PAM4) or 25G (NRZ) traffic over duplex single-mode fibre with LC connectors. It is built for data centre and high-performance computing links, including migration from 25G to 50G, and is part of the Cisco 50GBASE SFP56 module range.

The long-reach (LR) optic operates at 1310 nm and reaches 10 km on standard G.652 single-mode fibre. Links up to 15 km are supported as engineered links where channel insertion loss stays under 8 dB. Maximum power consumption is 1.5 W, drawn from the host SFP56 port. The module supports digital diagnostic monitoring per SFF-8472, with a commercial operating range of 0 to 70 C.

It is supported on Cisco switches with SFP56 ports, and the Cisco Transceiver Module Group Compatibility Matrix lists the specific platforms. 50G mode needs KP1-FEC (RS-FEC 544,514) enabled on the host port, and 25G mode needs KR1-FEC. Use PC or UPC patch cords, as APC connectors are not supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual-rate operation at 50G PAM4 or 25G NRZ on the same optic
- Supports 10 km, or up to 15 km on engineered links, over standard single-mode fibre
- Digital diagnostic monitoring per SFF-8472
- Complies with IEEE 802.3cc, 802.3cn, 802.3cd, 802.3by and CPRI V7.0
- Interoperable with other IEEE-compliant 50G and 25G interfaces where applicable
- Certified and tested on Cisco SFP56 ports for performance, quality and reliability

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: SFP56
- Data rate: 50G (PAM4), also operates at 25G (NRZ)
- Standard: 25/50GBASE-LR
- Fibre type: single-mode, SMF G.652
- Wavelength: 1310 nm
- Reach: 10 km, up to 15 km on engineered links
- Maximum channel insertion loss: 8 dB
- Connector: dual LC/PC (APC patch cords not supported)
- 50G transmit power: +4.2 dBm max / -4.5 dBm min
- 50G receive power: +4.2 dBm max / -12.5 dBm min
- 25G transmit power: +2.0 dBm max / -7.0 dBm min
- 25G receive power: +2.0 dBm max / -14.8 dBm min
- 50G wavelength range: 1304 to 1317 nm
- 25G wavelength range: 1295 to 1325 nm
- Maximum power consumption: 1.5 W
- Bail latch colour: blue
- Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Weight: typically 75 g or less
- Operating temperature (commercial): 0 to 70 C
- Storage temperature: -40 to 85 C
- Safety: Laser Class 1 (IEC 60825-1, 21CFR-1040)
- Compliance: RoHS 6

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. No licence or subscription is required. The module is powered by the host SFP56 port.

Q: What FEC setting does the host port need?
A: In 50G mode the host port needs KP1-FEC (RS-FEC 544,514). In 25G mode it needs KR1-FEC (RS-FEC 528,514).

Q: Which patch cords can I use?
A: Use single-mode patch cords with PC or UPC LC connectors. Patch cords with APC connectors are not supported.

Q: How far can it reach?
A: It reaches 10 km on standard G.652 single-mode fibre. Links up to 15 km are supported as engineered links when channel insertion loss is under 8 dB.

Q: Which Cisco platforms support it?
A: It is supported on Cisco switches with SFP56 ports. Check the Cisco Transceiver Module Group Compatibility Matrix at tmgmatrix.cisco.com for the specific platform and software release.
