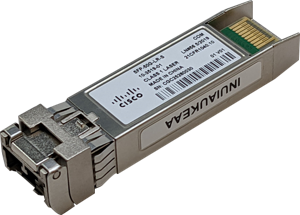

Cisco SFP-50G-ER-I | 25/50GBASE-ER SFP56 Transceiver, SMF, 40km, Industrial

SKU:SFP-50G-ER-I

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a 25G/50G SFP56 optical transceiver from the Cisco 50GBASE SFP56 Modules family. It is built for long-reach links over duplex single-mode fibre, and its industrial temperature rating suits data centre, high-performance computing and harsher environments where standard optics are not specified.

The module operates at 1310 nm over G.652 single-mode fibre with a dual LC/PC connector, and reaches up to 40 km at both 25G and 50G (30 km is also listed as the alternate reach figure). Optical budget is 18 dB maximum channel insertion loss on both speeds. The operating and storage range is -40 to 85 C, and maximum power draw is 2.7 W, supplied by the host SFP56 port. It conforms to IEEE 802.3cc, 802.3cn, 802.3cd and 802.3by.

The host port needs an SFP56 cage with KP1 (RS-FEC) enabled for 50G, or KR1-FEC for 25G. Use PC or UPC patch cords, as APC patch cords are not supported. No licence or subscription is required. Check the Cisco Transceiver Module Group Compatibility Matrix for the specific switch platform before deployment.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports both 25G NRZ and 50G PAM4 optical interfaces from a single module
- Long-reach links of up to 40 km over duplex single-mode fibre
- Industrial temperature range of -40 to 85 C for harsh environments
- Interoperable with other IEEE-compliant 25G and 50G interfaces where applicable
- Certified and tested on Cisco SFP56 ports
- Low maximum power consumption of 2.7 W

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: SFP56
- Standards: 25GBASE-ER / 50GBASE-ER
- Wavelength: 1310 nm
- Fibre type: SMF G.652, duplex
- Reach: 30/40 km
- Connector: dual LC/PC (APC patch cords not supported)
- 25G transmit power: +6 dBm max, -3 dBm min
- 25G receive power: -4 dBm max, -21 dBm min
- 25G max channel insertion loss: 18 dB
- 25G wavelength: 1295 to 1310 / 1295 to 1325 nm
- 50G transmit power: +6.6 dBm max, +0.4 dBm min
- 50G receive power: -3.4 dBm max, -17.6 dBm min
- 50G max channel insertion loss: 18 dB
- 50G wavelength: 1304.5 to 1317.5 nm
- FEC requirement: KP1 (RS-FEC) for 50G, KR1-FEC for 25G
- Maximum power consumption: 2.7 W
- Operating temperature: -40 to 85 C (-40 to 185 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Weight: typically 75 g or less
- Bail latch colour: Red
- Standards: IEEE 802.3cc, 802.3cn, 802.3cd, 802.3by, CPRI V7.0

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. No licence or subscription is required. The module is powered from the host SFP56 port at a maximum of 2.7 W.

Q: What fibre and patch cords does it need?
A: It uses duplex single-mode fibre (G.652) with dual LC/PC connectors at 1310 nm. Use PC or UPC patch cords only, as APC patch cords are not supported.

Q: What does the host port need to support?
A: The host needs an SFP56 port with KP1 (RS-FEC) enabled for 50G operation, or KR1-FEC for 25G. Check the Cisco Transceiver Module Group Compatibility Matrix for your specific switch platform.

Q: What reach does it support at 25G and 50G?
A: It supports links of up to 40 km at both 25G and 50G over single-mode fibre, with a maximum channel insertion loss of 18 dB on each speed.

Q: How does this differ from a standard-temperature version?
A: This industrial-temperature SKU is rated for -40 to 85 C operation and storage, making it suited to harsher environments than standard-range optics.
