Cisco SFP-50G-CU5M | 50G SFP56 Passive DAC Cable, 50GBASE-CR, 5m, 24 AWG
SKU:SFP-50G-CU5M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

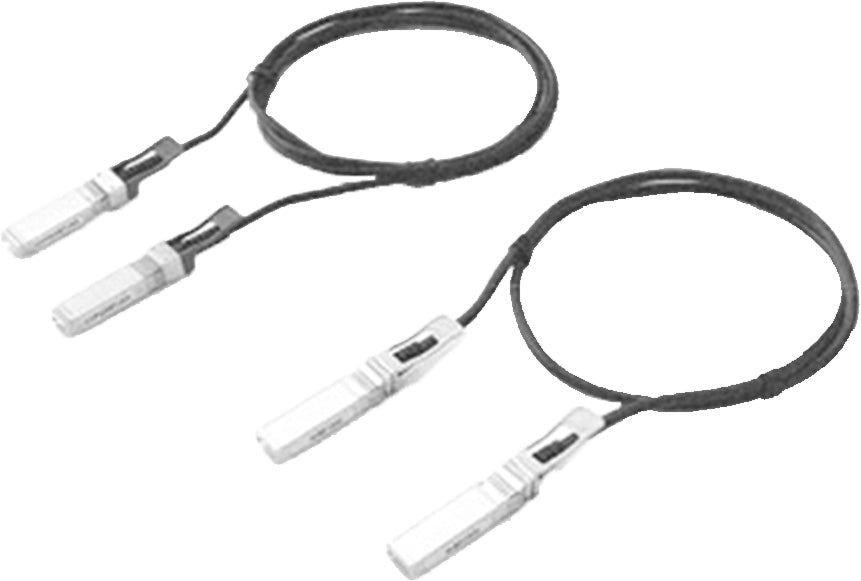

This Cisco 50G SFP56 passive direct-attach copper cable links SFP56 ports on switches, routers and other platforms over very short distances. At 5 m it suits connections within a rack or across adjacent racks in data centre and high-performance computing networks.
It is a 25/50GBASE-CR1 SFP56 to SFP56 passive assembly built from 24 AWG copper with a black LSZH (low smoke zero halogen) jacket and a gray pull tab. As a passive cable it needs no external power, with a stated maximum power consumption of 1/10 W. It supports 50G PAM4 and 25G NRZ interfaces and is a cost-effective alternative to optics for short-reach links. No licence or subscription is required.
In 50G mode the host port must support RS-FEC (544,514), also known as KP1-FEC. In 25G mode the 5 m cable needs RS-FEC (528,514), also known as KR1-FEC. It is supported on Cisco switches with SFP56 ports, so check the Cisco Transceiver Module Group Compatibility Matrix for your platform.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Passive direct-attach copper design with no external power required
- Supports 50G PAM4 and 25G NRZ interfaces
- LSZH (low smoke zero halogen) cable jacket
- Interoperable with other IEEE-compliant 50G and 25G interfaces where applicable
- Certified and tested on Cisco SFP56 ports for performance, quality and reliability
- Cost-effective short-reach 25G/50G connectivity within and across adjacent racks
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Type: 25/50GBASE-CR1 SFP56 to SFP56 passive copper DAC
- Cable length: 5 m
- Conductor: 24 AWG
- Jacket material: LSZH
- Jacket colour: Black
- Pull tab colour: Gray
- Maximum power consumption: 1/10 W
- SFP end diameter: 5 mm
- Bend radius: 45 mm
- Face plate distance: 70 mm
- Module dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Weight: 275 g
- FEC requirement (50G mode): RS-FEC (544,514), also known as KP1-FEC, on host ports
- FEC requirement (25G mode): RS-FEC (528,514), also known as KR1-FEC, on host ports
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Standards: IEEE 802.3by, 802.3cd, 802.3cn, 802.3cc, 802.3bj, 802.3bm; SFF-8402; SFF-8472; CPRI V7.0
- Compliance: RoHS 6, UL E116441 cable jacket, ELV compliant
FAQs
Q: Does this cable need a licence or subscription?
A: No. It is a passive copper cable and requires no licence or subscription.
Q: Does it need external power?
A: No. It is a passive cable with no external power, and its maximum power consumption is listed as 1/10 W.
Q: What does the host port need to support?
A: In 50G mode the host port must support RS-FEC (544,514), also known as KP1-FEC. In 25G mode the 5 m cable needs RS-FEC (528,514), also known as KR1-FEC.
Q: Which Cisco platforms is it supported on?
A: It is supported on Cisco switches with SFP56 ports. Check your exact platform in the Cisco Transceiver Module Group (TMG) Compatibility Matrix at tmgmatrix.cisco.com.
Q: How does this differ from other lengths of the same cable?
A: This SKU is the 5 m version with 24 AWG conductors, an LSZH jacket and a gray pull tab. Other SKUs in the family differ by cable length.
