Cisco

Cisco SFP-50G-CU3M | 50G SFP56 Passive DAC Cable, 3m, 26/28 AWG, LSZH

SKU:SFP-50G-CU3M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

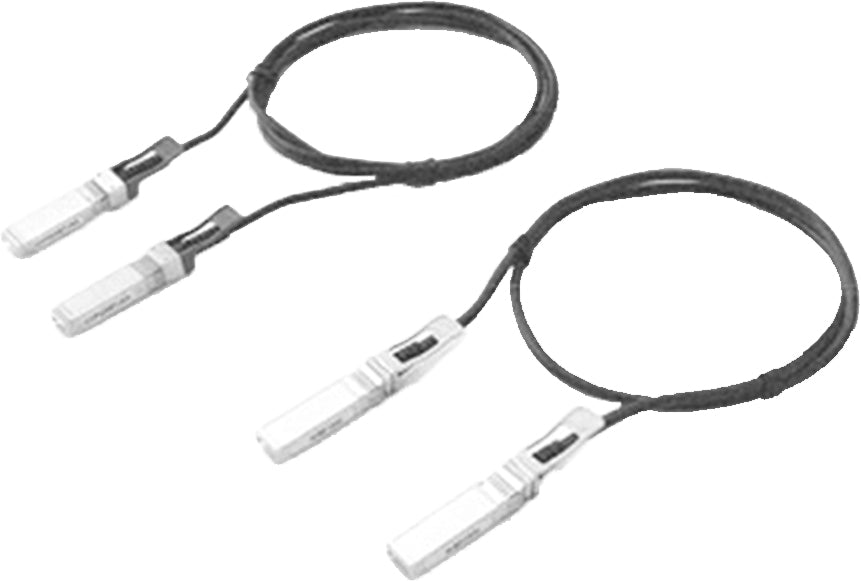

The SFP-50G-CU3M is a passive copper SFP56-to-SFP56 direct-attach cable from the Cisco 50GBASE SFP56 DAC range. It carries 25G and 50G Ethernet (25/50GBASE-CR1) over a 3 m run, making it suited to short links between switches, routers and other SFP56 platforms within a rack or across adjacent racks in data centre and high-performance computing networks.

The 3 m assembly uses 26/28 AWG copper with an orange pull tab and a black low-smoke zero-halogen (LSZH) jacket, and weighs 170 g. It supports 25G (NRZ) and 50G (PAM4) operation with a maximum power consumption of 1 W. As a passive cable it needs no external power and no licence or subscription.

For 50G operation the host ports must support RS-FEC (544,514) / KP1-FEC, and for 25G operation the host ports must support BASE-R FEC (FC-FEC). It is intended for Cisco switches with SFP56 ports, so check the Cisco Transceiver Module Group (TMG) Compatibility Matrix for your specific platform before ordering.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Passive copper design with no external power requirement
- Supports both 25G and 50G Ethernet over the same cable
- Interoperable with other IEEE-compliant 50G and 25G interfaces where applicable
- Certified and tested on Cisco SFP56 ports for performance, quality and reliability
- Cost-effective 25G/50G connectivity within a rack and across adjacent racks
- Low-smoke zero-halogen (LSZH) jacket
- Compliant with IEEE 802.3cc, 802.3cn, 802.3cd, 802.3by and CPRI V7.0

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product number: SFP-50G-CU3M
- Description: 25/50GBASE-CR1 SFP56 passive copper cable, 3-meter, LSZH
- Cable type: Direct-attach copper cable assembly (passive)
- Cable length: 3 m
- Connectors: SFP56 to SFP56
- Supported speeds: 25G (NRZ) and 50G (PAM4)
- Cable gauge: 26/28 AWG
- Maximum power consumption: 1 W
- Pull tab colour: Orange
- Jacket material: LSZH
- Jacket colour: Black
- Weight: 170 g
- SFP end diameter: 5 mm
- Bend radius: 45 mm
- Face plate distance: 70 mm
- FEC requirement (50G mode): RS-FEC (544,514) / KP1-FEC on host ports
- FEC requirement (25G mode): BASE-R FEC (FC-FEC) on host ports
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Standards: IEEE 802.3by, 802.3cd, 802.3cn, 802.3bj, 802.3bm, SFF-8402, SFF-8472, CPRI V7.0, RoHS 6
- Safety: Cable jacket UL E116441 compliant; ELV compliant

FAQs

Q: Does this cable need a licence or subscription?
A: No. It is a passive copper cable and requires no licence, subscription or external power.

Q: Can it run at both 25G and 50G?
A: Yes. It supports 25G (NRZ) and 50G (PAM4) operation. The speed depends on what the connected SFP56 ports are configured for.

Q: What FEC does the host port need to support?
A: For 50G operation the host port must support RS-FEC (544,514) / KP1-FEC. For 25G operation the host port must support BASE-R FEC (FC-FEC).

Q: Which devices is it compatible with?
A: It is supported on Cisco switches with SFP56 ports. Check the Cisco Transceiver Module Group (TMG) Compatibility Matrix for your specific platform before ordering.

Q: How does it differ from the other cable lengths in this range?
A: This SKU is the 3 m version, using 26/28 AWG copper with an orange pull tab and a weight of 170 g. Other SKUs in the range differ in length.
