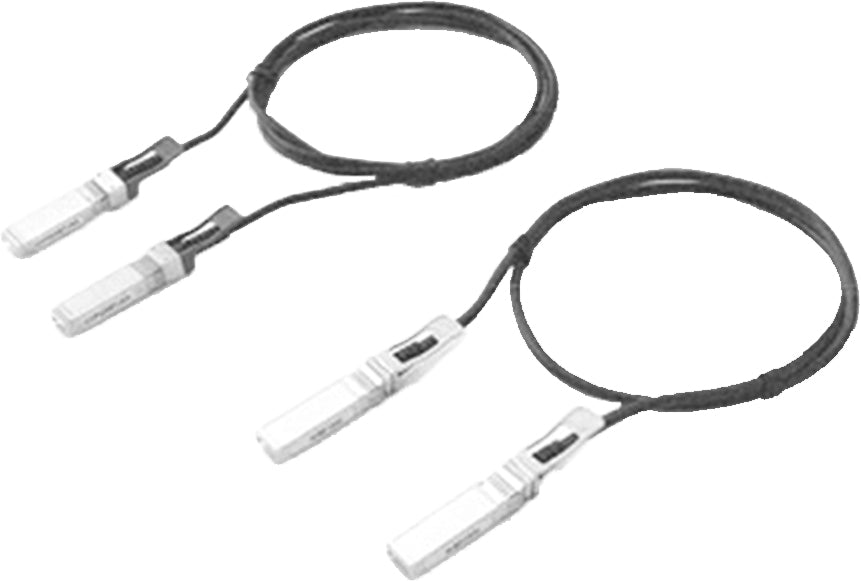

Cisco SFP-50G-CU2M | 50G SFP56 Passive DAC Cable, 2m, Brown Pull Tab

SKU:SFP-50G-CU2M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 50G SFP56 passive direct-attach copper cable links two Cisco SFP56 ports over a short run, making it a practical choice for top-of-rack and in-rack connections in data centre and high-performance computing networks. It carries 50G PAM4 or 25G NRZ Ethernet and is part of the Cisco 50GBASE SFP56 range.

The assembly is 2 m long with an SFP56 connector at each end, 26/28 AWG conductors and a black LSZH (low smoke zero halogen) jacket. This SKU has a brown pull tab and weighs 130 g, which separates it from other lengths in the same family. It is a passive cable, so it needs no external power and no licence or subscription. The SFP end diameter is 5 mm with a 45 mm bend radius.

It is intended for Cisco switches with SFP56 ports. Confirm the exact platforms and software versions in the Cisco Transceiver Module Group (TMG) Compatibility Matrix before deployment.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Passive design with no external power required
- Carries 50G PAM4 or 25G NRZ Ethernet over a single cable
- Compliant with IEEE 802.3cc, 802.3cn, 802.3cd, 802.3by and CPRI V7.0
- Interoperable with other IEEE-compliant 50G and 25G interfaces where applicable
- Certified and tested on Cisco SFP56 ports for performance, quality and reliability
- LSZH jacket (low smoke zero halogen) for enclosed data centre environments
- Brown pull tab for easy identification and removal

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product type: Direct-attach copper cable assembly
- Standard: 25/50GBASE-CR1 SFP56 passive copper DAC
- Cable length: 2 m
- Connectors: SFP56 at both ends
- Speed: 50G PAM4 / 25G NRZ
- Conductor: 26/28 AWG
- Jacket material: LSZH
- Jacket colour: Black
- Pull tab colour: Brown
- SFP end diameter: 5 mm
- Bend radius: 45 mm
- Face plate distance: 70 mm
- Weight: 130 g
- Connector module dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Standards: IEEE 802.3by, 802.3cd, 802.3cn, 802.3bj, 802.3bm, SFF-8402, SFF-8472, CPRI V7.0
- Compliance: RoHS 6, UL E116441 jacket, ELV

FAQs

Q: Does this cable need a licence or subscription?
A: No. It is a passive copper cable, so no licence or subscription is required.

Q: Does it need external power?
A: No. It is a passive cable and draws no external power. It operates from the host SFP56 port.

Q: Which switches is it compatible with?
A: It is supported on Cisco switches with SFP56 ports. Check the Cisco Transceiver Module Group (TMG) Compatibility Matrix for the exact platforms and software versions.

Q: Can it run at 25G as well as 50G?
A: Yes. It supports 50G PAM4 and 25G NRZ signalling, so it can connect to 25G or 50G SFP56 interfaces that support those rates.

Q: What is it designed for?
A: Short-reach 25G/50G links such as top-of-rack and in-rack connections in data centre and high-performance computing networks.
