Cisco SFP-50G-CU2.5M | 50GBASE SFP56 Passive DAC Cable, 2.5m, 26/28 AWG
SKU:SFP-50G-CU2.5M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

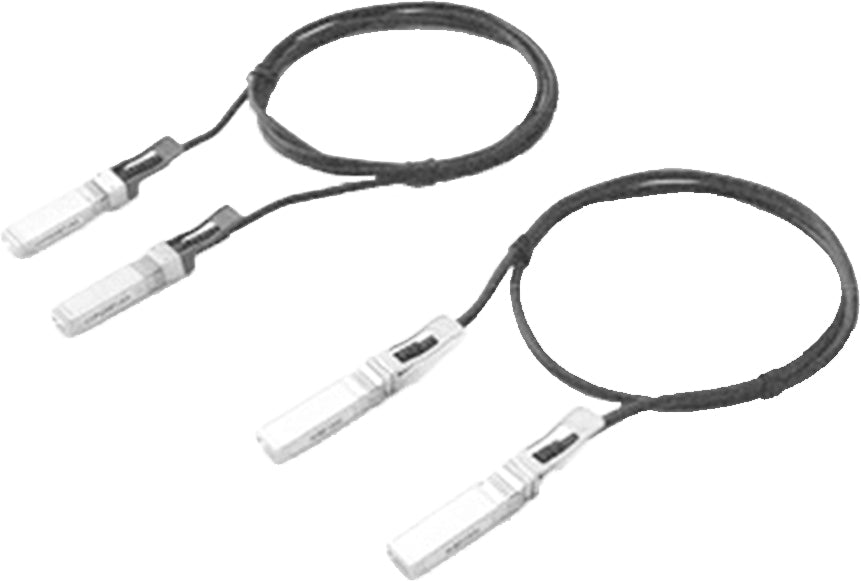

This Cisco 50GBASE SFP56 passive copper direct-attach cable has an SFP56 connector at each end and measures 2.5 m. It is built for very short links between SFP56 ports on switches, routers and other platforms, either within a rack or across adjacent racks in data centre and high-performance computing environments.
The assembly is a 25/50GBASE-CR1 cable using 26/28 AWG copper conductors, with a yellow pull tab and a black LSZH (low smoke zero halogen) jacket. It runs at 50G or 25G, and listed power consumption is 1/10 W as printed in the datasheet. For 50G, host ports must support RS-FEC (544,514), also known as KP1-FEC. For 25G operation on this 2.5 m cable, host ports need BASE-R (FC) FEC enabled.
The cable is certified and tested on Cisco SFP56 ports. Compatibility with specific Cisco switches can be confirmed in the Cisco TMG Compatibility Matrix.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Passive copper direct-attach design with SFP56 connectors at both ends
- Supports 50G and 25G links between SFP56 ports
- Suited to short links within a rack and across adjacent racks
- Low-cost way to establish a 25G or 50G link
- LSZH (low smoke zero halogen) jacket
- Certified and tested on Cisco SFP56 ports
- Works with other IEEE-compliant 50G and 25G interfaces where applicable
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Type: 25/50GBASE-CR1 SFP56 to SFP56 passive copper DAC
- Cable length: 2.5 m
- Conductor gauge: 26/28 AWG
- Pull tab colour: Yellow
- Jacket material: LSZH
- Jacket colour: Black
- Maximum power consumption: 1/10 W (as printed in the datasheet)
- SFP end diameter: 5 mm
- Bend radius: 45 mm
- Face plate distance: 70 mm
- Cable weight: 150 grams
- SFP module dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- FEC at 50G: RS-FEC (544,514), also called KP1-FEC, required on host ports
- FEC at 25G: BASE-R FEC (FC-FEC) required on host ports
- Standards: IEEE 802.3by, 802.3cd, 802.3cn, 802.3cc, SFF-8402, SFF-8472, CPRI V7.0
- Compliance: RoHS 6, ELV compliant, cable jacket UL E116441
FAQs
Q: Does this cable need external power?
A: No. It is a passive cable and draws no external power. Maximum power consumption is listed as 1/10 W in the datasheet.
Q: What FEC must the host ports support?
A: For 50G, host ports must support RS-FEC (544,514), also called KP1-FEC. For 25G operation on this 2.5 m cable, host ports need BASE-R (FC) FEC.
Q: Which devices does it work with?
A: It is supported on Cisco switches with SFP56 ports. Confirm your platform in the Cisco TMG Compatibility Matrix at tmgmatrix.cisco.com.
Q: How far can it reach?
A: This cable is 2.5 m long, intended for very short links within a rack or between adjacent racks.
Q: How does this differ from the other SFP-50G DAC lengths?
A: This SKU is the 2.5 m version with a yellow pull tab and 26/28 AWG conductors. The same family is also offered in 0.5, 1, 1.5, 2, 3, 4 and 5 m lengths.
