Cisco

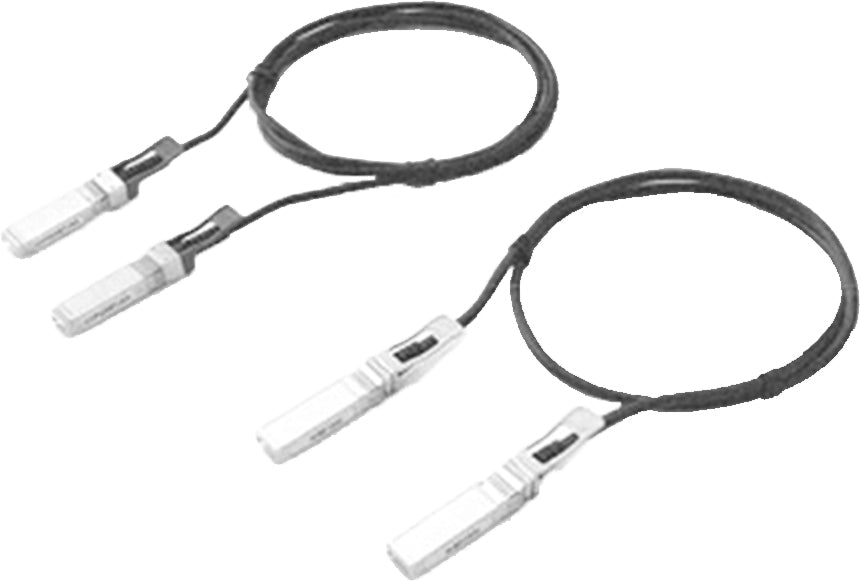

Cisco SFP-50G-CU1M | 50G SFP56 Passive DAC Cable, 1m, 30 AWG, LSZH

SKU:SFP-50G-CU1M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco 50G SFP56 to SFP56 passive copper direct-attach cable is built for very short 25G and 50G Ethernet links within a rack or between adjacent racks. It suits data centre and high-performance computing networks where switches, routers and other platforms with SFP56 ports need a low-cost short-reach connection.

The cable is 1 m long, uses 30 AWG copper and has a beige pull tab with an LSZH (low smoke zero halogen) jacket. It supports 50G PAM4 and 25G NRZ signalling and is a passive assembly, so it needs no external power. In 50G mode the host ports must have RS-FEC (544,514), also known as KP1-FEC, enabled. In 25G mode a 1 m cable needs no FEC on the host port.

It works with Cisco switches that have SFP56 ports, and it is tested on Cisco SFP56 ports for performance, quality and reliability. Platform support can be checked in the Cisco Transceiver Module Group Compatibility Matrix.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Interoperable with other IEEE-compliant 50G and 25G interfaces where applicable
- Certified and tested on Cisco SFP56 ports for performance, quality and reliability
- Supports 50G PAM4 and 25G NRZ connectivity
- Cost-effective short-reach link between SFP56 ports in the same rack or adjacent racks
- LSZH (low smoke zero halogen) cable jacket
- Passive assembly that needs no external power

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product number: SFP-50G-CU1M
- Description: 25/50GBASE-CR1 SFP56 Copper Cable 1-meter, LSZH
- Cable type: Direct-attach copper cable assembly
- Cable length: 1 m
- Cable gauge: 30 AWG
- Connectors: SFP56 to SFP56
- Max power consumption: 1/10 W
- Pull tab colour: Beige
- Jacket material: LSZH
- Jacket colour: Black
- SFP end diameter: 5 mm
- Bend radius: 45 mm
- Face plate distance: 70 mm
- Weight: 70 g
- FEC requirement (50G mode): RS-FEC (544,514), also known as KP1-FEC, on host ports
- FEC requirement (25G mode): none required on host ports for 1 m
- Module dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Standards: IEEE 802.3by, 802.3cd, 802.3cn, 802.3cc, 802.3bj, 802.3bm, SFF-8402, SFF-8472, CPRI V7.0
- Compliance: RoHS 6, cable jacket UL E116441, ELV compliant

FAQs

Q: Does this cable need a licence or external power?
A: No. It is a passive copper cable with no external power needed and no licence required.

Q: Which ports does it work with?
A: It works with Cisco switches that have SFP56 ports. Platform support can be confirmed in the Cisco Transceiver Module Group Compatibility Matrix at tmgmatrix.cisco.com.

Q: Is FEC required on the host port?
A: In 50G mode the host port must have RS-FEC (544,514), also known as KP1-FEC, enabled. In 25G mode a 1 m cable needs no FEC on the host port.

Q: How far can this cable reach?
A: It is a 1 m cable, intended for very short links within a rack or between adjacent racks.

Q: What does the LSZH jacket mean?
A: LSZH stands for low smoke zero halogen. The jacket is designed to produce limited smoke and no halogens if it burns, which suits enclosed data centre spaces.
