Cisco SFP-50G-CU1.5M | 50G SFP56 Passive DAC Cable, 1.5m, 30 AWG, LSZH
SKU:SFP-50G-CU1.5M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

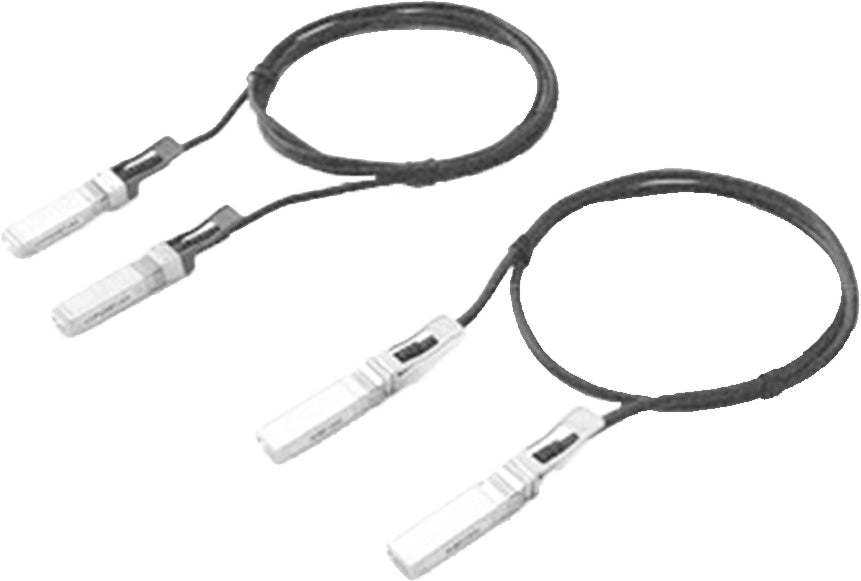

This is a passive 25/50GBASE-CR1 SFP56-to-SFP56 direct-attach copper cable from the Cisco 50GBASE SFP56 family. At 1.5 m it suits very short 25G or 50G links between SFP56 ports on switches, routers and other platforms, within a rack or across adjacent racks in data centre and high-performance computing networks.
The cable uses 30 AWG copper with a black pull tab and a black low-smoke zero-halogen (LSZH) jacket. It supports 50G PAM4 and 25G NRZ signalling and is a passive assembly, so it needs no external power and no licence or subscription. The connector ends are 5 mm in diameter with a 45 mm bend radius, and the cable weighs 100 grams.
In 50G mode the host port must support RS-FEC (544,514), also called KP1-FEC. In 25G mode a 1.5 m cable does not require FEC on the host port. It is intended for Cisco SFP56 ports, and supported platforms can be checked in the Cisco Transceiver Module Group Compatibility Matrix.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Supports both 50G PAM4 and 25G NRZ connectivity on a single cable
- Passive design with no external power needed
- Low smoke zero halogen (LSZH) jacket
- Tested on Cisco SFP56 ports for performance, quality and reliability
- Compliant with IEEE 802.3cc, 802.3cn, 802.3cd, 802.3by and CPRI V7.0
- Interoperable with other IEEE-compliant 50G and 25G interfaces where applicable
- Low-cost option for short links within a rack or between adjacent racks
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Type: Passive direct-attach copper cable (DAC)
- Interface: 25/50GBASE-CR1 SFP56 to SFP56
- Cable length: 1.5 m
- Wire gauge: 30 AWG
- Jacket material: LSZH
- Jacket colour: Black
- Pull tab colour: Black
- Maximum power consumption: 1/10 W
- SFP end diameter: 5 mm
- SFP end bend radius: 45 mm
- Face plate distance: 70 mm
- Connector module dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Weight: 100 grams
- FEC in 50G mode: RS-FEC (544,514), also called KP1-FEC, required on host ports
- FEC in 25G mode: not required on host ports for 1.5 m cable
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Standards: IEEE 802.3by, 802.3cd, 802.3cn, 802.3cc, SFF-8402, SFF-8472, CPRI V7.0, RoHS 6
- Safety: cable jacket UL E116441 compliant, ELV compliant
FAQs
Q: Does this cable need a licence or subscription?
A: No. It is a passive copper cable, so no licence or subscription is required.
Q: Does it need external power?
A: No. It is a passive assembly with no external power. The datasheet lists maximum power consumption as 1/10 W.
Q: What FEC does the host port need?
A: In 50G mode the host port must support RS-FEC (544,514), also called KP1-FEC. In 25G mode, a 1.5 m cable does not require FEC on the host port.
Q: Which ports is it designed for?
A: It is intended for Cisco SFP56 ports. Supported platforms can be confirmed in the Cisco Transceiver Module Group Compatibility Matrix at tmgmatrix.cisco.com.
Q: Can it run at both 25G and 50G?
A: Yes. The 25/50GBASE-CR1 cable supports 25G NRZ and 50G PAM4 signalling, depending on the speed the connected ports run at.
