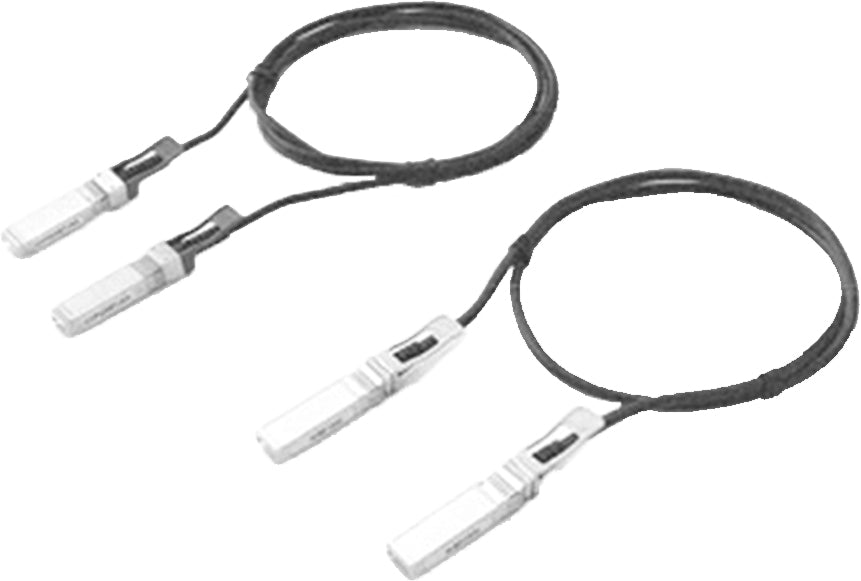

Cisco SFP-50G-CU0.5M | 50G SFP56 Passive DAC Cable, 0.5 m, 30/32 AWG, LSZH
SKU:SFP-50G-CU0.5M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The SFP-50G-CU0.5M is a passive SFP56 to SFP56 direct-attach copper cable that carries a 25G or 50G Ethernet link between SFP56 ports. At 0.5 m it suits switches, routers and other platforms within a rack or across adjacent racks in data centre and high-performance computing networks.
The assembly is a 25/50GBASE-CR1 cable that supports 50G PAM4 or 25G NRZ operation and is built from 30/32 AWG copper with a black LSZH (low smoke zero halogen) jacket and a beige pull tab. The SFP ends are 5 mm in diameter, the cable weighs 40 g and the minimum bend radius is 45 mm. It is a passive cable, so it needs no external power, licence or subscription.
For 50G operation the host ports must support RS-FEC (544,514), also known as KP1-FEC. In 25G mode no FEC is required on the host ports at this length. The cable is interoperable with other IEEE-compliant 25G and 50G interfaces and is compliant with IEEE 802.3cd, 802.3cn, 802.3by and 802.3cc.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Passive copper design with no external power required
- Supports 50G PAM4 or 25G NRZ interfaces
- Interoperable with IEEE-compliant 25G and 50G interfaces
- Certified and tested on Cisco SFP56 ports for performance and reliability
- Cost-effective for very short links within a rack or across adjacent racks
- LSZH (Low Smoke Zero Halogen) jacket
- Compliant with IEEE 802.3cc, 802.3cn, 802.3cd, 802.3by and CPRI V7.0
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product type: 25/50GBASE-CR1 SFP56 to SFP56 passive copper DAC
- Cable length: 0.5 m
- Data rate: 25G / 50G Ethernet (50G PAM4 or 25G NRZ)
- Conductor gauge: 30/32 AWG
- Jacket material: LSZH
- Jacket colour: Black
- Pull tab colour: Beige
- Cable weight: 40 g
- SFP end diameter: 5 mm
- Bend radius: 45 mm
- Face plate distance: 70 mm
- Connector module dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- FEC requirement, 50G mode: RS-FEC (544,514) / KP1-FEC on host ports
- FEC requirement, 25G mode: none required for 0.5 m on host ports
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Standards: IEEE 802.3cd, 802.3cn, 802.3by, 802.3cc, 802.3bj, 802.3bm, SFF-8402, SFF-8472, CPRI V7.0
- Compliance: RoHS 6, ELV, cable jacket UL E116441
FAQs
Q: Does this cable need a licence or external power?
A: No. It is a passive copper cable, so it needs no external power, licence or subscription.
Q: What do the host ports need for 50G operation?
A: The host ports must support RS-FEC (544,514), also known as KP1-FEC. In 25G mode at 0.5 m, no FEC is required on the host ports.
Q: What does it connect to?
A: It connects SFP56 ports on Cisco switches, routers and other platforms, and is interoperable with IEEE-compliant 25G and 50G interfaces. Check the Cisco TMG Compatibility Matrix for supported devices.
Q: How far can this cable reach?
A: This cable is 0.5 m long, designed for very short links within a rack or across adjacent racks.
Q: What lengths does this cable family come in?
A: The family is available in 0.5, 1, 1.5, 2, 2.5, 3, 4 and 5 m lengths. This SKU is the 0.5 m version.
