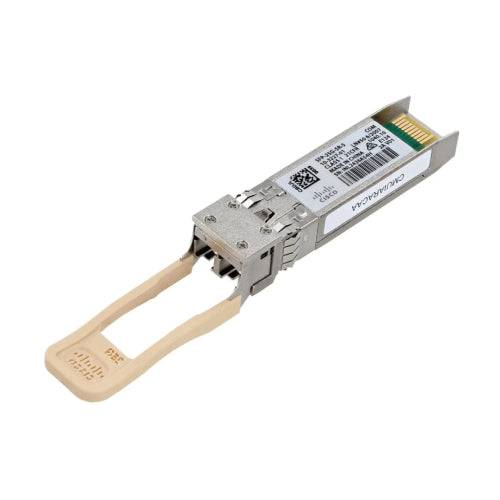

Cisco SFP-25G-SR-S | 25G SFP28 Transceiver, 25GBASE-SR, 850nm MMF, 100m

SKU:SFP-25G-SR-S

$654.00 USD
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 25GBASE-SR SFP28 transceiver is a short-reach 25 Gigabit Ethernet optic for multimode fibre links. It suits 25G connections between switches and servers or other equipment within data centres and high-performance computing networks.

It operates at 850nm and reaches 70m on OM3 and 100m on OM4 or OM5 fibre, using a dual LC/PC connector. It meets IEEE 802.3by 25GBASE-SR, with a transmit power range of -8.4 to +2.4 dBm and a maximum power draw of 1.2 W. The module is powered from the host SFP28 port and supports SFF-8472 digital diagnostics. No licence or subscription is required.

It is designed for Cisco SFP28 host ports, and the host port must support RS-FEC. Use patch cords with PC or UPC connectors, as APC connectors are not supported. Fibre Channel over Ethernet is supported with appropriate host software support.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Compliant with IEEE 802.3by and IEEE 802.3cc for 25G Ethernet
- Interoperable with other IEEE-compliant 25G interfaces where applicable
- Certified and tested on Cisco SFP28 ports for performance, quality and reliability
- Low-power SFP28 optic suited to high-density deployments
- Supports Fibre Channel over Ethernet with appropriate host software support
- Digital diagnostics monitoring via SFF-8472

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Form factor: SFP28
- Standard: IEEE 802.3by 25GBASE-SR
- Wavelength: 850 nm (840 to 860 nm range)
- Cable type: MMF, 50.0 micron core
- Reach on OM3: 70 m (2000 MHzkm)
- Reach on OM4: 100 m (4700 MHzkm)
- Reach on OM5: 100 m (4700 MHzkm)
- Connector: Dual LC/PC
- Transmit power: -8.4 dBm min, +2.4 dBm max (average)
- Receive power: -10.3 dBm min, +2.4 dBm max (average)
- Max power consumption: 1.2 W
- FEC requirement: RS-FEC required on host ports
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Digital diagnostics: SFF-8472
- Pull tab colour: Beige
- Laser safety: Class 1 (IEC 60825-1, 21CFR-1040)
- RoHS: RoHS 6

Also Known As

SFP-25G-SR-S=

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. It does not require a licence or subscription and is powered from the host SFP28 port.

Q: What distance does it support?
A: It reaches 70m on OM3 multimode fibre and 100m on OM4 or OM5 fibre at 850nm.

Q: What does the host port need to support?
A: The host SFP28 port must support RS-FEC. It is designed for Cisco SFP28 (25G) ports, so check the switch's transceiver compatibility matrix for supported platforms.

Q: What connector and patch cords should I use?
A: It uses a dual LC/PC connector. Use patch cords with PC or UPC connectors, as APC connectors are not supported.

Q: How much power does it draw?
A: Maximum power consumption is 1.2 W, drawn from the host SFP28 port.
