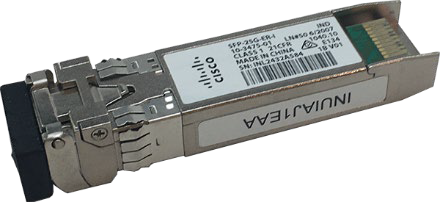

Cisco SFP-25G-ER-I | 25G SFP28 Transceiver, SMF, 40km, 1310nm, Industrial Temp

SKU:SFP-25G-ER-I

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 25GBASE-ER SFP28 transceiver is an industrial-temperature optical module for long-reach 25G links over standard G.652 single-mode fibre. It suits Carrier Ethernet, enterprise and mobile fronthaul or midhaul applications where a link of up to 40 km is needed in a harsh or outdoor-cabinet environment.

The module transmits and receives at a nominal 1310 nm (1295 to 1310 nm range) through a dual LC/PC connector. Transmit power ranges from -3.0 to +6.0 dBm and receive power from -21.0 to -4.0 dBm. Links beyond 30 km are engineered links, and RS-FEC must be enabled on the host port to reach the full 40 km at 25G. Maximum power draw is 1.5 W, supplied by the host SFP28 port, and the operating range is -40 to 85 C. It does not require a licence or subscription.

It is supported on Cisco switches with SFP28 ports that provide RS-FEC at 25G. Check the Cisco Transceiver Module Group Compatibility Matrix for supported platforms and software versions. Patch cords with APC connectors are not supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports a 40 km link length on standard single-mode fibre at 25G
- Industrial temperature range of -40 to 85 C for harsh or outdoor-cabinet deployments
- Duplex LC single-mode design for Carrier Ethernet, enterprise and mobile fronthaul or midhaul
- Digital diagnostic monitoring per SFF-8472
- Low power draw of 1.5 W maximum
- Class 1 laser safety and RoHS 6 compliant

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: SFP28 (25GBASE-ER)
- Data rate: 25G
- Fibre type: Single-mode, SMF G.652
- Connector: Dual LC/PC
- Reach: 40 km (links over 30 km are engineered links)
- Nominal wavelength: 1310 nm
- Transmit and receive wavelength: 1295 to 1310 nm
- Transmit power: -3.0 to +6.0 dBm
- Receive power: -21.0 to -4.0 dBm
- Maximum power consumption: 1.5 W
- FEC: RS-FEC required on host port for full reach at 25G
- Operating temperature: -40 to 85 C (-40 to 185 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Pull tab colour: Red
- Standards: SFF-8402, SFF-8472, IEEE 802.3by, IEEE 802.3cc, RoHS 6
- Laser safety: Class 1 (21CFR-1040, IEC60825-1)

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. It does not require a licence or subscription and is powered directly from the host SFP28 port.

Q: Does the host port need RS-FEC?
A: Yes. RS-FEC must be enabled on the host port to achieve the full 40 km reach at 25G.

Q: Which switches is it compatible with?
A: It works with Cisco switches that have SFP28 ports and RS-FEC support at 25G. Check the Cisco Transceiver Module Group Compatibility Matrix for supported platforms and software versions.

Q: What fibre and connectors does it use?
A: It uses standard G.652 single-mode fibre with a dual LC/PC connector. Patch cords with APC connectors are not supported.

Q: How does it differ from a standard-temperature 25G optic?
A: This module is rated for -40 to 85 C and supports a 40 km reach at 1310 nm, making it suitable for harsh environments and long-reach links.
