Cisco

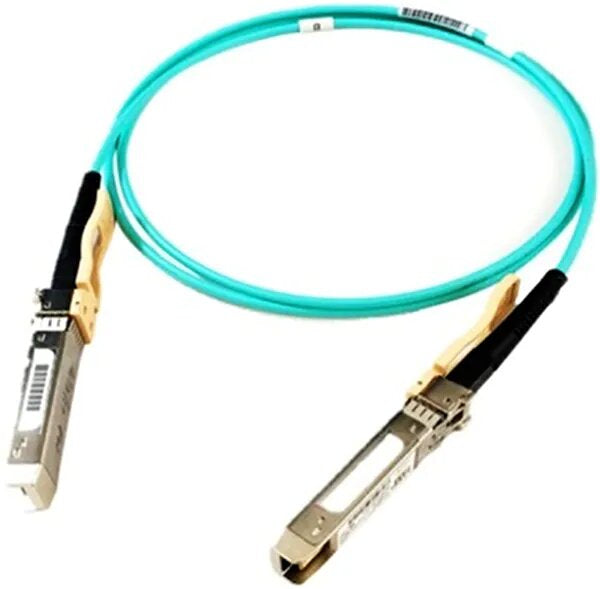

Cisco SFP-25G-AOC4M | 25G SFP28 Active Optical Cable, 850nm MMF, 4m

SKU:SFP-25G-AOC4M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco 25GBASE-AOC SFP28 active optical cable is a direct-attach fibre assembly with SFP28 connectors at both ends. It provides a low-cost 25 Gigabit Ethernet link over very short distances, within a rack or between adjacent racks, so it suits data centre and high-performance computing networks that need high-density, low-power connectivity without separate optics.

This SKU is the 4 m length, identified by a green pull tab. It runs at 25 Gbps over 850 nm multimode fibre and draws a maximum of 1 W from the host SFP28 port, so no external power supply is needed. The commercial operating temperature range is 0 to 70 C. The host ports must have BASE-R FEC or RS-FEC enabled, and the cable supports the SFF-8472 digital diagnostic monitoring interface.

It is supported on Cisco switches with SFP28 ports. Check the Cisco Transceiver Module Group (TMG) Compatibility Matrix for supported platforms and software versions.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Direct-attach fibre assembly with SFP28 connectors at both ends, with no separate optics needed
- Cost-effective 25G connectivity within racks and across adjacent racks
- Suited to high-density, low-power 25 Gigabit Ethernet in data centre and high-performance computing networks
- Supports FCoE with appropriate host software
- Digital diagnostic monitoring interface per SFF-8472
- Colour-coded pull tab identifies the cable length (green for 4 m)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product type: 25GBASE-AOC SFP28 Active Optical Cable assembly
- Connectors: SFP28 to SFP28
- Cable length: 4 m
- Data rate: 25 Gbps
- Fibre type: 850 nm multimode fibre (MMF)
- Max power consumption: 1 W
- Pull tab colour: Green
- Host FEC requirement: BASE-R FEC or RS-FEC required on host ports
- FCoE support: Supported with appropriate host software support
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Standards: SFF-8402 (SFP28), SFF-8472 (Diagnostic Monitoring), IEEE 802.3-2015, IEEE 802.3by-2016
- Environmental compliance: RoHS 6
- Laser safety: Class 1 per 21CFR-1040 and IEC 60825-1

FAQs

Q: Does this cable need an external power supply?
A: No. It draws a maximum of 1 W from the host SFP28 port, so no external power is required.

Q: Do I need to configure anything on the host ports?
A: Yes. The host ports must have BASE-R FEC or RS-FEC enabled for the link to operate correctly.

Q: Which devices does it work with?
A: It is supported on Cisco switches with SFP28 ports. Check the Cisco Transceiver Module Group (TMG) Compatibility Matrix for supported platforms and software versions.

Q: What distance can this cable cover?
A: This SKU is a fixed 4 m assembly, intended for links within a rack or between adjacent racks.

Q: How does it differ from other SFP-25G-AOC lengths?
A: The electrical and optical design is the same. The difference is the cable length, which is 4 m here and is identified by a green pull tab.
