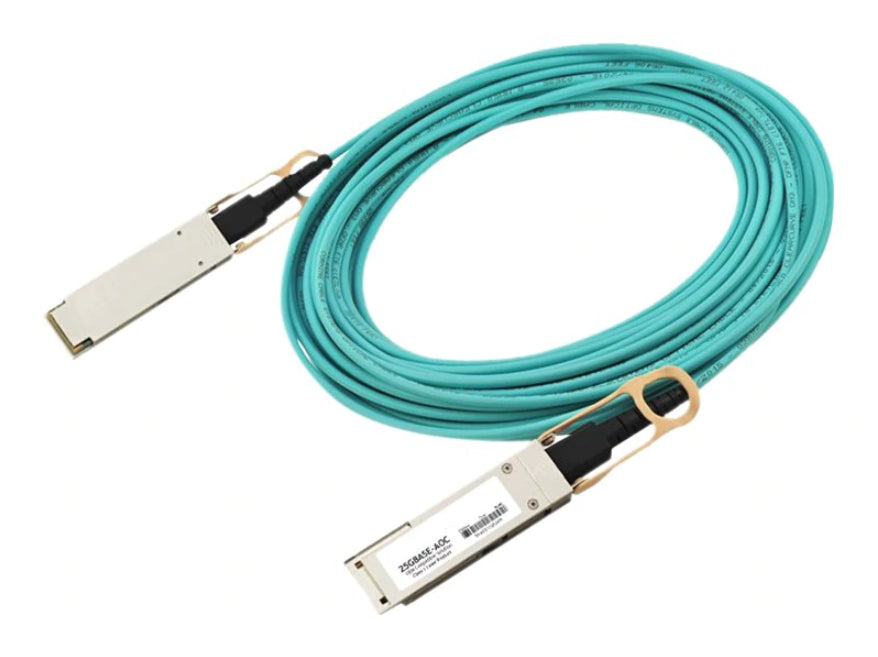

Cisco SFP-25G-AOC3M | 25G SFP28 Active Optical Cable, 850nm, 3m, Orange Tab

SKU:SFP-25G-AOC3M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The SFP-25G-AOC3M is a fixed-length 3 m SFP28-to-SFP28 active optical cable for 25 Gigabit Ethernet. It is built for very short links within a rack or between adjacent racks in data centre and high-performance computing networks, where a low-power, high-density connection is needed between SFP28 ports.

The cable is a direct-attach fibre assembly with SFP28 connectors at both ends and 850nm multimode fibre. It draws a maximum of 1 W, powered from the host SFP28 port, and carries an orange pull tab for easy identification. It meets IEEE 802.3by and IEEE 802.3cc, includes diagnostic monitoring per SFF-8472, and operates from 0 to 70 C. The host ports must support BASE-R FEC or RS-FEC. No licence or subscription is required.

It is supported on Cisco switches with SFP28 ports. Confirm specific platform support in the Cisco Transceiver Module Group Compatibility Matrix before deployment.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Certified and tested on Cisco SFP28 ports for performance, quality and reliability
- High-speed 25GbE connectivity compliant with IEEE 802.3by and IEEE 802.3cc
- Low-power, high-density connectivity for data centre and HPC networks
- Cost-effective links within racks and across adjacent racks
- Diagnostic monitoring per SFF-8472
- Interoperable with other IEEE-compliant 25G interfaces where applicable
- Fixed assembly with no separate connectors to manage

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product type: 25GBASE-AOC SFP28 Active Optical Cable
- Cable length: 3 m
- Form factor: SFP28 to SFP28 (SFP connectors both ends)
- Fibre: 850nm multimode
- Maximum power consumption: 1 W
- Pull tab colour: Orange
- FEC requirement: BASE-R FEC (FC-FEC) or RS-FEC on host ports
- FCoE: Supported with appropriate host software
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Standards: IEEE 802.3by, IEEE 802.3cc, IEEE 802.3-2015, SFF-8402, SFF-8472
- Compliance: RoHS 6, Laser Class 1 (21CFR-1040, IEC60825-1)

FAQs

Q: Does this cable need a licence or subscription?
A: No. It is a passive-to-host assembly powered from the SFP28 port and requires no licence or subscription.

Q: What do the host ports need to support?
A: The host SFP28 ports must support BASE-R FEC (FC-FEC) or RS-FEC. The cable draws a maximum of 1 W from the port.

Q: Which devices does it work with?
A: It is supported on Cisco switches with SFP28 ports. Confirm your specific platform in the Cisco Transceiver Module Group Compatibility Matrix.

Q: How long is this cable and what is the orange pull tab for?
A: This SKU is a fixed 3 m length. The orange pull tab identifies the 3 m variant and is used to release the connector.

Q: Can it carry Fibre Channel over Ethernet?
A: Yes, FCoE is supported when the host has the appropriate software support.
