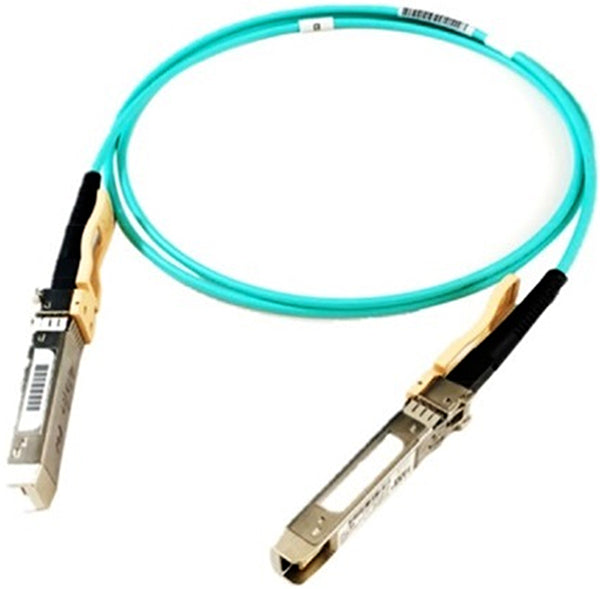

Cisco SFP-25G-AOC1M | 25G SFP28 Active Optical Cable, 1m, SFP28 to SFP28

SKU:SFP-25G-AOC1M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The SFP-25G-AOC1M is a 25GBASE-AOC SFP28 active optical cable assembly with fixed fibre and SFP28 connectors on both ends. It gives 25 Gigabit Ethernet connectivity over a 1 m span, making it well suited to server-to-top-of-rack switch links within a rack or between adjacent racks in data centre and high-performance computing networks.

This 1 m length is one of several available in the range, which also includes 2, 3, 4, 5, 7 and 10 m cables. The assembly has an SFP28 form factor at both ends, a beige pull tab, and a maximum power consumption of 1 W drawn from the host SFP28 port. The host ports must provide BASE-R FEC or RS-FEC, and FCoE is supported with appropriate host software.

It operates over the commercial temperature range of 0 to 70 C and follows SFF-8402, SFF-8472, IEEE 802.3 2015 and IEEE 802.3by-2016. Cisco 25G transceivers and cables are supported on Cisco switches, and host support can be checked in the Cisco Transceiver Module Group (TMG) Compatibility Matrix.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Direct-attach fibre assembly with SFP28 connectors, suited to very short distances
- Cost-effective for connections within racks and across adjacent racks
- Supports 25 Gigabit Ethernet for data centre and HPC networks
- Supports FCoE with appropriate host software
- Low 1 W maximum power consumption, powered from the host SFP28 port
- Also available in 2, 3, 4, 5, 7 and 10 m lengths

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product number: SFP-25G-AOC1M
- Description: 25GBASE-AOC SFP28 Active Optical Cable, 1-meter
- Cable type: Active Optical Cable assembly
- Cable length: 1 m
- Form factor: SFP28 to SFP28
- Maximum power consumption: 1 W
- Pull tab / bail latch colour: Beige
- Host FEC requirement: BASE-R FEC or RS-FEC on host ports
- FCoE: Supported with appropriate host software support
- Operating temperature range (commercial): 0 to 70 C (32 to 158 F)
- Storage temperature range: -40 to 85 C (-40 to 185 F)
- Standards: SFF-8402 (SFP28), SFF-8472 (diagnostic monitoring), IEEE 802.3 2015, IEEE 802.3by-2016
- Safety: Laser Class 1 (21CFR-1040, IEC60825-1)
- RoHS: RoHS 6

FAQs

Q: Does this cable need a licence or separate power?
A: No licence is required. The cable is powered from the host SFP28 port and draws a maximum of 1 W.

Q: What must the host port support?
A: The host ports must provide BASE-R FEC or RS-FEC. Host support for this part should be confirmed in the Cisco Transceiver Module Group (TMG) Compatibility Matrix.

Q: What is it designed to connect?
A: It links two SFP28 ports at 25 Gigabit Ethernet over 1 m, typically a server to a top-of-rack switch within a rack or across adjacent racks.

Q: How does it differ from the other SFP-25G-AOC cables?
A: The cables share the same specification and differ only by length. This SKU is the 1 m version, and the range also includes 2, 3, 4, 5, 7 and 10 m lengths.

Q: Does it support FCoE?
A: Yes, FCoE is supported when the host has appropriate software support.
