Cisco

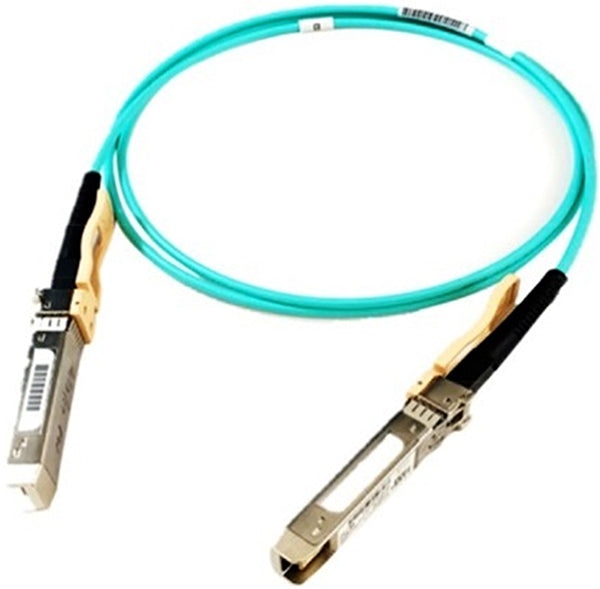

Cisco SFP-25G-AOC10M | 25G SFP28 Active Optical Cable, 10m, Red Pull Tab

SKU:SFP-25G-AOC10M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The SFP-25G-AOC10M is a fixed-length 10 m SFP28-to-SFP28 active optical cable with integrated SFP connectors. It delivers 25 Gigabit Ethernet links within a rack or between adjacent racks, and suits top-of-rack server-to-switch connections in data centre and high-performance computing networks. It is also a fit for short-reach links between 25G SFP28 server NICs and Cisco 10/25G switches.

This AOC runs at 25 Gbps to IEEE 802.3by and draws a maximum of 1 W from the host SFP28 port. The 10 m length with a red pull tab separates it from the shorter lengths in the Cisco AOC range, which covers 1, 2, 3, 4, 5, 7 and 10 m. It reaches further than a passive 25G copper DAC, which tops out at 5 m. No licence or subscription is required.

The host port must support BASE-R FEC or RS-FEC. Check the Cisco Transceiver Module Group Compatibility Matrix for supported platforms. Cisco documents it as supported on, for example, the Catalyst CW9800M wireless controller and the Cisco Campus Gateway.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- High-speed 25G connectivity compliant with IEEE 802.3by
- Interoperable with other IEEE-compliant 25G interfaces where applicable
- Certified and tested on Cisco SFP28 ports for performance, quality and reliability
- Cost-effective way to connect within racks and across adjacent racks
- Longer reach than passive copper DACs, which top out at 5 m
- Supports Fibre Channel over Ethernet (FCoE) with appropriate host software support
- Low power draw of 1 W maximum per cable assembly

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product type: 25GBASE-AOC SFP28 to SFP28 Active Optical Cable
- Cable length: 10 m
- Data rate: 25 Gbps (IEEE 802.3by)
- Form factor: SFP28 to SFP28 with integrated SFP connectors
- Wavelength: 850 nm
- Pull tab / bail latch colour: Red
- Maximum power consumption: 1 W
- FEC requirement: BASE-R FEC or RS-FEC on the host port
- FCoE: Supported with appropriate host software support
- Operating temperature (commercial): 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Standards: IEEE 802.3by, IEEE 802.3, SFF-8402, SFF-8472
- Safety: Laser Class 1 (21CFR-1040, IEC60825-1)
- Compliance: RoHS 6

FAQs

Q: Does this cable need a licence or subscription?
A: No. It is a passive-licence item with no licence or subscription requirement. It works once connected to a compatible SFP28 port.

Q: What does the host port need to support?
A: The host SFP28 port must support BASE-R FEC or RS-FEC. Without one of these on the port, the 25G link will not operate correctly.

Q: How much power does it draw?
A: It draws a maximum of 1 W per cable assembly, supplied by the host SFP28 port. No separate power connection is needed.

Q: How does the 10 m AOC differ from a passive DAC?
A: A passive 25G copper DAC reaches up to 5 m, while this active optical cable reaches 10 m. This makes it better for links between adjacent racks.

Q: Which platforms is it supported on?
A: It works with Cisco SFP28 ports. Check the Cisco Transceiver Module Group Compatibility Matrix (tmgmatrix.cisco.com) for your platform. Cisco documents support on, for example, the Catalyst CW9800M wireless controller and the Cisco Campus Gateway.
