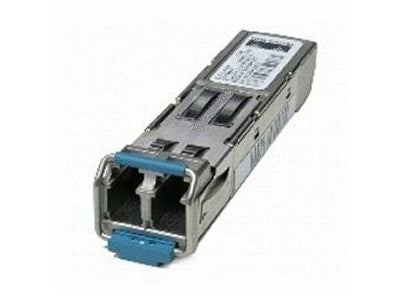

Cisco SFP-1G-LH | 1G SFP Transceiver, 1000BASE-LX/LH, 10km SMF, DOM
SKU:SFP-1G-LH
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The SFP-1G-LH is a Cisco 1000BASE-LX/LH SFP transceiver that provides 1G connectivity over single-mode fibre for up to 10 km. It is designed for Cisco switches and routers that only have 10G-capable ports, so you can run a 1G fibre link from an SFP+ port without changing the host hardware. It suits 1G single-mode uplinks and campus or enterprise links to existing 1000BASE-LX/LH infrastructure.
The module uses a dual LC/PC connector and a 1310 nm wavelength, with a transmit power range of -3 to -9.5 dBm and a receive power range of -3 to -20 dBm. It reaches 10 km on G.652 single-mode fibre, or 550 m on multimode fibre when a mode-conditioning patch cord is used. Digital Optical Monitoring (DOM) is supported, the commercial operating range is 0 to 70 C, and power draw is up to 2 W per module. No licence or subscription is required.
The SFP-1G-LH works only in 10G-capable ports, including SFP+, 10/25G and 10/25/50G multi-rate ports, and it does not work in 1G-only ports. It interoperates with other standard 1000BASE-LX/LH modules at the far end of the link.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Provides 1G connectivity in 10G, 10/25G dual-rate and 10/25/50G tri-rate ports
- Interoperates with standard 1000BASE-LX/LH SFP modules
- Supports single-mode fibre up to 10 km
- Supports multimode fibre up to 550 m with a mode-conditioning patch cord
- Digital Optical Monitoring (DOM) for link diagnostics
- Hot-swappable SFP form factor
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Standard: IEEE 802.3z 1000BASE-LX/LH, IEEE 802.3ah
- Data rate: 1 Gbps
- Host ports: 10G, 10/25G and 10/25/50G ports (not 1G-only ports)
- Wavelength: 1310 nm
- Connector: Dual LC/PC (APC patch cords not supported)
- Single-mode fibre reach: 10,000 m on G.652 SMF
- Multimode fibre reach: 550 m on 62.5 um and 50 um MMF with a mode-conditioning patch cord
- Minimum cable distance: 2 m
- Transmit power range: -3 to -9.5 dBm
- Receive power range: -3 to -20 dBm
- Maximum channel insertion loss: 2.4 dB (any MMF), 6 dB (G.652 SMF)
- Transmit and receive wavelength range: 1270 to 1355 nm
- Digital Optical Monitoring (DOM): Supported
- Power consumption: Up to 2 W
- Operating temperature: 0 to 70 C (commercial)
- Storage temperature: -40 to 85 C
- Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Weight: 75 g or less
- Laser safety: Class I, 21CFR1040 and IEC 60825-1
FAQs
Q: Does this transceiver need a licence or subscription?
A: No. The SFP-1G-LH requires no licence or subscription.
Q: Will it work in a 1G-only SFP port?
A: No. It works only in 10G-capable ports, including SFP+ and 10/25G or 10/25/50G multi-rate ports on Cisco switches and routers.
Q: Does it need external power?
A: No. It draws up to 2 W from the host port and needs no external power supply.
Q: Can I use it over multimode fibre?
A: Yes, up to 550 m on 62.5 um or 50 um multimode fibre, but a mode-conditioning patch cord is required. Over G.652 single-mode fibre it reaches 10 km.
Q: What can it connect to at the far end?
A: It interoperates with other standard 1000BASE-LX/LH modules, so the far end can be any compatible 1000BASE-LX/LH SFP.
