Cisco

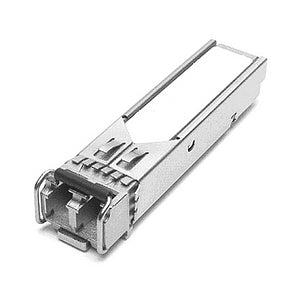

Cisco SFP-10G-ZR-S | 10G SFP+ Transceiver, ZR, S-Class, 80km, 1550nm, LC

SKU:SFP-10G-ZR-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This S-Class (Enterprise-Class) 10GBASE-ZR SFP+ transceiver carries 10 Gigabit Ethernet over standard G.652 single-mode fibre at 1550 nm, with a dual LC/PC connector and a reach of up to 80 km. It suits long-haul links such as campus, metro and inter-site connections between Cisco switches and routers.

The module is a hot-swappable SFP+ with a maximum power draw of 1.5 W, supplied by the host port. Transmitter output power is 0 dBm minimum to +4.0 dBm maximum, with a receiver sensitivity of -24 dBm minimum on 10GE LAN/WAN links. It operates over the commercial temperature range of 0 to 70 C and supports digital optical monitoring of output power, input power, temperature, laser bias current and supply voltage. This S-Class variant is 10GBASE-ZR only, with no ZW or OTU2 support, and does not support FCoE. No licence or subscription is required.

It plugs into SFP+ ports on supported Cisco platforms. Use single-mode fibre with PC or UPC LC patch cords, and fit an inline optical attenuator on links shorter than 40 km to avoid overloading the receiver.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable SFP+ form factor for high-density 10 Gigabit Ethernet ports
- Digital optical monitoring of output power, input power, temperature, laser bias current and supply voltage
- 80 km reach on standard single-mode fibre
- Optical interoperability with 10GBASE XENPAK, X2 and XFP interfaces on the same link
- Cisco quality ID feature so the host platform can identify genuine Cisco modules
- S-Class (Enterprise-Class) variant of the 10GBASE-ZR module for enterprise use

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: SFP+
- Standard: 10GBASE-ZR (built to Cisco specifications, not part of IEEE 10GbE standards)
- Class: S-Class (Enterprise-Class)
- Wavelength: 1550 nm (transmitter 1530 to 1565 nm)
- Cable type: SMF G.652
- Maximum cable distance: 80 km
- Connector: Dual LC/PC (APC patch cords not supported)
- Transmitter output power: 0 dBm min to +4.0 dBm max (average)
- Side-mode suppression ratio: 30 dB min
- Transmitter extinction ratio: 9 dB min
- Receiver input wavelength: 1260 to 1565 nm
- Receiver sensitivity (10GE LAN/WAN, non-FEC): -24 dBm min
- Receiver overload: -7 dBm
- Receiver damage threshold: +5 dBm
- Maximum chromatic dispersion: 1600 ps/nm
- Chromatic dispersion penalty at 1600 ps/nm: 3 dB max
- Power consumption: 1.5 W max
- Operating temperature: 0 to 70 C (commercial)
- Storage temperature: -40 to 85 C
- Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Weight: 75 g or less
- Bail latch colour: Green
- FCoE: Not supported

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. No licence or subscription is required. The module is powered by the host SFP+ port.

Q: How much power does it draw?
A: It draws 1.5 W maximum from the host SFP+ port. No external power is needed.

Q: What fibre and connectors should I use?
A: Use G.652 single-mode fibre with PC or UPC LC patch cords. Patch cords with APC connectors are not supported. For links shorter than 40 km, fit an inline optical attenuator to avoid overloading the receiver.

Q: How does SFP-10G-ZR-S differ from SFP-10G-ZR?
A: The S-Class module supports 10GBASE-ZR only. The non-S SFP-10G-ZR also supports 10GBASE-ZW and OTU2/OTU2e. This S-Class module is not multirate and does not support FCoE.

Q: Which Cisco devices does it work with?
A: It fits SFP+ ports on supported Cisco platforms. Check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for supported devices and software versions.
