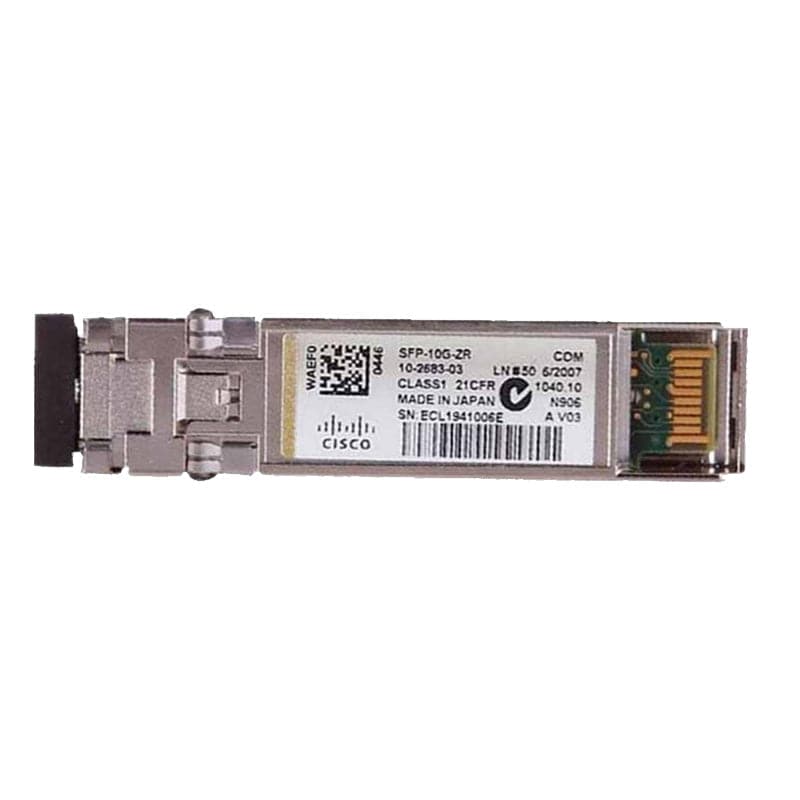

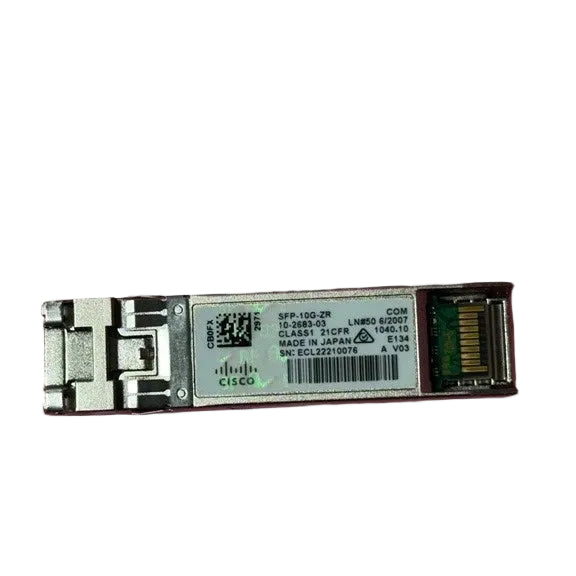

Cisco SFP-10G-ZR | 10GBASE-ZR SFP+ Transceiver, 1550nm SMF, 80km
SKU:SFP-10G-ZR
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The SFP-10G-ZR is a multirate 10GBASE-ZR SFP+ optical transceiver from the Cisco 10GBASE SFP+ module family, built for long-haul single-mode links. It supports 10GBASE-ZR, 10GBASE-ZW and OTU2/OTU2e operation, which suits metro and campus-to-campus interconnects between SFP+ ports on Cisco switches and routers.
It transmits at 1550 nm (1530 to 1565 nm) over standard G.652 single-mode fibre and reaches approximately 80 km through a dual LC/PC connector. Transmit power is 0 to +4.0 dBm and receive power is -24 to -7 dBm, with a 1.5 W maximum power draw taken from the host port. This is the commercial-temperature version, rated 0 to 70 C, and it supports digital optical monitoring of optical power, temperature, laser bias current and supply voltage.
Use dual LC/PC patch cords only, as APC connectors are not supported. Host support varies by platform and software version, so check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for your switch or router.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Multirate support for 10GBASE-ZR, 10GBASE-ZW and OTU2/OTU2e
- About 80 km reach on standard G.652 single-mode fibre
- Digital optical monitoring of power, temperature, laser bias current and supply voltage
- Hot-pluggable SFP+ form factor
- Dual LC/PC connector for standard single-mode patch cords
- Low 1.5 W maximum power consumption, powered from the host SFP+ port
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
Also Known As
FAQs
Technical Specifications
- Form factor: SFP+
- Standard: 10GBASE-ZR (Cisco specification), multirate 10GBASE-ZW and OTU2/OTU2e
- Wavelength: 1530 to 1565 nm (1550 nm nominal)
- Fibre type: SMF G.652
- Maximum link length: approx. 80 km
- Connector: Dual LC/PC
- Transmit power: 0 dBm minimum, +4.0 dBm maximum (average)
- Receive power: -24 dBm minimum, -7 dBm maximum (average)
- Receiver overload: -7 dBm
- Receiver damage threshold: +5 dBm
- Receiver input wavelength: 1260 to 1565 nm (sensitivity specified over 1530 to 1565 nm only)
- Side-mode suppression ratio: 30 dB minimum
- Transmitter extinction ratio: 9 dB minimum
- Maximum chromatic dispersion: 1600 ps/nm
- Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Weight: 75 g or less
- Power consumption: 1.5 W
- Operating temperature (commercial): 0 to 70 C (32 to 158 F)
- Diagnostics: Digital optical monitoring (DOM) of optical power, temperature, laser bias current and supply voltage
Also Known As
SFP-10G-ZR=
FAQs
Q: What fibre and connector does the SFP-10G-ZR use?
A: It uses standard G.652 single-mode fibre with a dual LC/PC connector. Patch cords with APC connectors are not supported.
Q: How does this differ from SFP-10G-ZR-I?
A: This is the commercial-temperature module with about 80 km reach and a 0 to 70 C operating range. The SFP-10G-ZR-I is the industrial-temperature sibling, with 70 km reach and a -40 to 85 C range.
Q: Does it need external power?
A: No. It draws around 1.5 W from the host SFP+ port and needs no separate power supply.
Q: Is it supported on my switch or router?
A: Host support varies by platform and software version. Check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for your exact model.
Q: Can I monitor the optical link?
A: Yes. It supports digital optical monitoring of optical power, temperature, laser bias current and supply voltage.
