Cisco

Cisco SFP-10G-T-X | 10GBASE-T SFP+ Transceiver, RJ-45, 30m Cat6a/7

SKU:SFP-10G-T-X

$678.81 inc. GST
$617.10 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

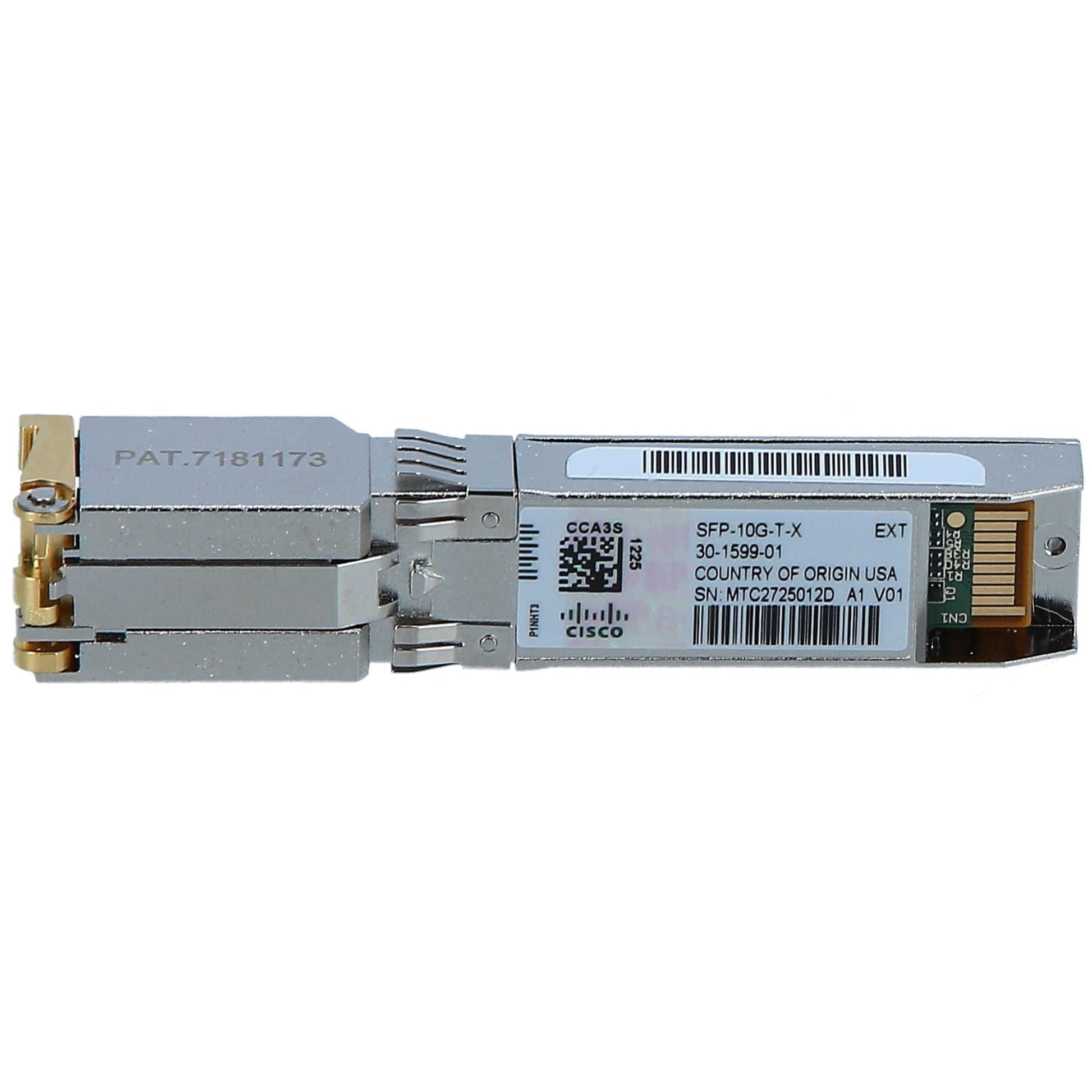

The SFP-10G-T-X is a hot-swappable SFP+ copper transceiver from the Cisco 10G SFP+ module range. It provides 10GBASE-T connectivity over standard RJ-45 structured cabling, so existing copper runs can connect SFP+ ports on switches to servers and other 10GBASE-T devices without moving to fibre.

At 10 Gbps the module reaches up to 30 m over Cat6a or Cat7 or better cabling. It is also multi-rate and runs at 100 Mbps and 1 Gbps over Cat5e or better, with a reach of up to 100 m at those speeds. This makes it practical for mixed environments where older and newer devices share the same switch. It follows IEEE 802.3an (10GBASE-T), 802.3ab (1000BASE-T) and 802.3u (100BASE-TX).

Power is drawn from the host SFP+ port, at roughly 2.5 W at 10G over 30 m and 1.0 W at 100M or 1G. Supported platforms include the Nexus 9000 Series and Industrial Ethernet switches such as the IE-3300.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable SFP+ module
- Multi-rate operation at 100M, 1G and 10G over copper
- Interoperates with any device supporting 10GBASE-T, 1000BASE-T or 100BASE-TX
- Uses standard structured copper cabling with RJ-45, so no fibre is needed
- Powered from the host SFP+ port, no PoE involved

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Form factor: SFP+ (hot-swappable)
- Connector: RJ-45
- Supported data rates: 100 Mbps / 1 Gbps / 10 Gbps
- Standards: IEEE 802.3an (10GBASE-T), 802.3ab (1000BASE-T), 802.3u (100BASE-TX)
- Cable type at 10G: Cat6a / Cat7 or better
- Cable type at 100M/1G: Cat5e or better
- Maximum reach at 10 Gbps: 30 m
- Maximum reach at 100M/1G: 100 m
- Power consumption at 10G (30 m): approx. 2.5 W
- Power consumption at 100M/1G: approx. 1.0 W

Also Known As

SFP-10G-T-X=

FAQs

Q: What cabling does it need at 10G?
A: For 10 Gbps operation use Cat6a or Cat7 or better cabling, with a maximum reach of 30 m. At 100M and 1G, Cat5e or better is suitable for up to 100 m.

Q: Does it also run at 1G and 100M?
A: Yes. It is a multi-rate module that supports 100 Mbps, 1 Gbps and 10 Gbps, so it interoperates with 10GBASE-T, 1000BASE-T and 100BASE-TX devices.

Q: How much power does it draw?
A: It draws about 2.5 W at 10G over 30 m and about 1.0 W at 100M or 1G. Power comes from the host SFP+ port.

Q: Which Cisco platforms support it?
A: It is supported on a range of Cisco platforms, including the Nexus 9000 Series and Industrial Ethernet switches such as the IE-3300. Check the Cisco optics compatibility matrix for per-platform support and minimum software versions.
