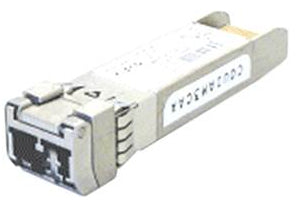

Cisco SFP-10G-SR-X | 10G SFP+ SR Transceiver, MMF 300m, Extended Temp
SKU:SFP-10G-SR-X
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The SFP-10G-SR-X is a multirate 10GBASE-SR, 10GBASE-SW and OTU2/OTU2e SFP+ transceiver for multimode fibre, aimed at short-reach 10 Gigabit Ethernet links in data centres, enterprise wiring closets and service provider transport. It differs from the standard SFP-10G-SR by its extended operating temperature range of -5 to 85 C, which suits installations where the host environment runs warmer or colder than a typical equipment room.
It operates at 850 nm over a dual LC connector and reaches 300 m on OM3 and 400 m on OM4 or OM5. Shorter distances apply on older fibre, including 82 m on OM2 and 33 m on OM1, with a minimum cabling distance of 2 m. Transmit power is -7.3 dBm to -1.2 dBm, receive power is -9.9 dBm to -1.0 dBm, and power consumption is 1 W. Digital optical monitoring is built in for link diagnostics, and the module is hot-swappable.
It is supported across a wide range of Cisco platforms, including Catalyst 2960-X/XR, 3560-X, 3750-X, 3850 and 4500/4500-X, Nexus 2000/3000/9000, ASR 900/1000/9000 and MDS 9000. Not every device supports every module, so check the Cisco Optics-to-Device Compatibility Matrix for your platform and software version.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Multirate support for 10GBASE-SR, 10GBASE-SW and OTU2/OTU2e
- Extended operating temperature range compared with the standard SFP-10G-SR
- Digital optical monitoring for link diagnostics
- Hot-swappable, no need to power down to install or replace
- SFP+ form factor for high port density per chassis
- Optical interoperability with 10GBASE XENPAK, X2 and XFP interfaces on the same link
- Cisco quality ID lets the host platform identify the module as certified and tested by Cisco
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: SFP+
- Standards: 10GBASE-SR, 10GBASE-SW, OTU2/OTU2e (multirate)
- Data rate: 10 Gbps
- Wavelength: 850 nm (840 to 860 nm window)
- Fibre type: Multimode fibre (MMF)
- Connector: Dual LC/PC
- Reach on OM3 (2000 MHzkm): 300 m
- Reach on OM4 and OM5 (4700 MHzkm): 400 m
- Reach on OM2 (500 MHzkm): 82 m
- Reach on OM1 (200 MHzkm): 33 m
- Reach on 62.5 micron FDDI (160 MHzkm): 26 m
- Minimum cabling distance: 2 m
- Transmit power: -7.3 dBm min to -1.2 dBm max (average)
- Receive power: -9.9 dBm min to -1.0 dBm max (average)
- Power consumption: 1 W
- Operating temperature: -5 to 85 C (23 to 185 F), extended
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Weight: 75 g or less
- Bail latch colour: Beige
- Standards compliance: IEEE 802.3ae, SFP+ MSA SFF-8431, ITU-T G.709 OTN
FAQs
Q: Does this transceiver need a licence?
A: No. It is a passive pluggable optic powered by the host SFP+ port and needs no licence or subscription.
Q: How is the SFP-10G-SR-X different from the SFP-10G-SR?
A: The optical specifications and reach are the same. The -X version is rated for an extended operating temperature range of -5 to 85 C and supports multirate 10GBASE-SR, 10GBASE-SW and OTU2/OTU2e.
Q: What fibre and distance does it support?
A: It runs over multimode fibre with dual LC connectors. Reach is 300 m on OM3 and 400 m on OM4 or OM5, and 82 m on OM2 and 33 m on OM1.
Q: Which Cisco platforms support it?
A: It is supported on many platforms, including Catalyst 2960-X/XR, 3560-X, 3750-X, 3850 and 4500/4500-X, Nexus 2000/3000/9000, ASR 900/1000/9000 and MDS 9000. Check the Cisco Optics-to-Device Compatibility Matrix for your exact platform and software version.
Q: Can I use APC patch cords with it?
A: No. The module uses dual LC/PC connectors, and patch cords with APC connectors are not supported.
