Cisco

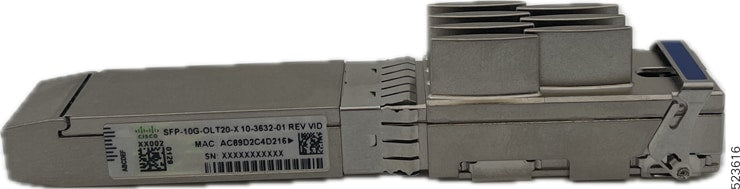

Cisco SFP-10G-OLT20-X | Routed PON XGS-PON OLT SFP+ Transceiver, 20km, EML

SKU:SFP-10G-OLT20-X

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 10G Routed PON XGS-PON OLT SFP+ module is a complete Optical Line Terminal in a hot-pluggable SFP+ form factor. It combines a 10G Ethernet-to-XGS-PON OLT MAC bridge with an optical transceiver, so a multiservice router can deliver PON services without a dedicated OLT chassis. It suits service-provider FTTH and broadband access deployments where Ethernet transport and PON residential and business services are converged on one platform.

This SFP-10G-OLT20-X variant uses an EML transmitter and supports a maximum reach of 20 km over single-fibre G.652 single-mode fibre. It operates to ODN Class N2 with a maximum split ratio of 1:128, transmits at 1577 nm and receives at 1270 nm. Transmit power is 4 to 7 dBm and receive power is -7 to -28 dBm, with DOM support. Operating temperature is -20 to 75 C. Each XGS-PON OLT port requires the XGS-PON RTU licence, R-PON-10G-RTU, which is ordered separately.

The module plugs into SFP+ ports on Cisco NCS 540, NCS 5500 and NCS 5700 routers, including N540-24Z8Q2C-SYS, NCS-55A1-24Q6H-SS, NCS-55A2-MOD-S and NCS-57C1-48Q6D. It works with Cisco ENC-10G-ONT-10, ENC-10G-ONT-14A and ENC-10G-ONT-01PR ONTs and with most third-party ONTs and ONUs.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Complete XGS-PON OLT in a hot-pluggable SFP+ form factor that plugs into Ethernet SFP+ ports
- Lets a multiservice router replace a dedicated PON OLT chassis, reducing footprint and power consumption
- Works with most third-party ONTs and ONUs
- Managed through Cisco PON Manager and PON Controller with NETCONF/YANG support (TR-383 and TR-385 models)
- MEF 3.0 compliant services with Class B/C timing support
- Segment Routing and SRv6 support on the host router
- Port-by-port PON upgrade path for investment protection

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: SFP+ (hot-pluggable)
- Product type: XGS-PON OLT SFP+ module
- Maximum distance: 20 km
- Media: Single-mode fibre (SMF), single fibre
- Fibre grade: G.652, 9 micron core
- Connector: SC/APC
- ODN class: N2
- Maximum split ratio: 1:128
- Transmit wavelength: 1577 nm (typical)
- Receive wavelength: 1270 nm (typical)
- Transmit power: 4 to 7 dBm
- Receive power: -7 to -28 dBm
- DOM capable: Yes
- Operating temperature: -20 to 75 C
- Storage temperature: -40 to 85 C
- Typical power consumption: 2.475 W
- Dimensions (H x W x D): 8.55 x 13.4 x 80.65 mm
- Bail-latch colour: Blue
- Standards: ITU-T G.9807.1 and G.988 (XGS-PON), GR-468 Issue 2, GR-326, RoHS6
- Safety and EMC: Class 1 laser product (EN60825-1), Class B EMI (FCC part 15B, EN55032)

FAQs

Q: Does this module need a licence?
A: Yes. Each XGS-PON OLT port needs the XGS-PON RTU licence, R-PON-10G-RTU, which is ordered separately. The module is also managed through the Cisco PON Manager and PON Controller software running on IOS-XR.

Q: Which routers can host this OLT module?
A: It plugs into SFP+ ports on Cisco NCS 540, NCS 5500 and NCS 5700 platforms, including N540-24Z8Q2C-SYS, N540-ACC-SYS, NCS-55A1-24Q6H-SS, NCS-55A2-MOD-S, NCS-57C1-48Q6D and NCS-57C3-MODS-SYS.

Q: Which ONTs does it work with?
A: It pairs with Cisco ENC-10G-ONT-10, ENC-10G-ONT-14A and ENC-10G-ONT-01PR ONTs and with most third-party ONTs and ONUs.

Q: How does SFP-10G-OLT20-X differ from SFP-10G-OLT20-I?
A: The -X suffix is the 20 km EML XGS-PON OLT module for an operating range of -20 to 75 C. The -I variant is the industrial-temperature version of the same module.

Q: How far can it reach and how many subscribers can it serve?
A: Maximum reach is 20 km over G.652 single-mode fibre, with ODN Class N2 and a split ratio of up to 1:128. Reach beyond 20 km is possible when the distance between the closest and farthest ONTs is no more than 20 km.
