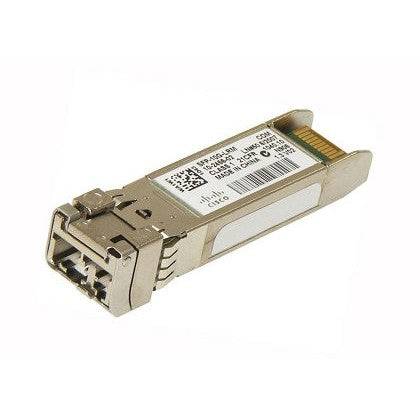

Cisco SFP-10G-LRM | 10G SFP+ Transceiver, LRM, 1310nm, 220m MMF, LC
SKU:SFP-10G-LRM
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco SFP-10G-LRM is a hot-swappable 10GBASE-LRM SFP+ optical transceiver from Cisco's 10GBASE SFP+ module family. It is built for 10 Gigabit Ethernet links in data centres, enterprise wiring closets and service provider transport, especially where legacy FDDI-grade, OM1 or OM2 multimode fibre is already installed and needs to be reused.
It operates at 1310 nm and reaches up to 220 m on 62.5 um and 50 um multimode fibre at 500 MHzkm, or up to 100 m on 50 um multimode fibre at 400 MHzkm. Over standard G.652 single-mode fibre it reaches up to 300 m. The module uses a dual LC/PC connector, draws 1 W maximum from the host port and includes digital optical monitoring. Over FDDI-grade, OM1 and OM2 fibre a mode conditioning patch cord is required, while OM3 and OM4 do not need one. No licence or subscription is required.
It is supported on a wide range of Cisco platforms, including Catalyst 2960, 3560, 3750, 3850 and 4500 series, Nexus 2000, 3000, 4000 and 9000 series, and ASR, 7600, CRS, MDS 9000 and UCS platforms. It also interoperates with 10GBASE XENPAK, X2 and XFP interfaces on the same link. Not every platform supports every module, so check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for your host.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Small SFP+ form factor for high 10G port density per chassis
- Hot-swappable, so the switch does not need to be powered down to install or replace the module
- Digital optical monitoring for link diagnostics
- Works over both legacy multimode and single-mode fibre, suiting upgrades of installed fibre plant
- Optical interoperability with 10GBASE XENPAK, X2 and XFP interfaces on the same link
- Cisco quality ID lets the host platform identify the module as certified and tested by Cisco
- Pay-as-you-populate model for investment protection and easier technology migration
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
Also Known As
FAQs
Technical Specifications
- Standard: IEEE 802.3 10GBASE-LRM
- Form factor: SFP+ (MSA SFF-8431)
- Wavelength: 1310 nm (transmit and receive 1260 to 1355 nm)
- Reach, 62.5 um MMF (500 MHzkm): 220 m
- Reach, 50 um MMF (500 MHzkm): 220 m
- Reach, 50 um MMF (400 MHzkm): 100 m
- Reach, G.652 SMF: 300 m
- Minimum cabling distance: 2 m
- Transmit power: -6.5 dBm min, 0.5 dBm max
- Receive power max: 0.5 dBm
- Receive power min: -8.4 dBm (average) and -6.4 dBm (OMA), both must be met
- Connector: Dual LC/PC (APC patch cords not supported)
- Mode conditioning patch cord: required over FDDI-grade, OM1 and OM2 fibre, not required for OM3 or OM4
- Power consumption: 1 W max
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Weight: 75 g or less
- Bail latch colour: Orange
- Digital optical monitoring: Yes
- Safety: Laser Class 1 (21CFR-1040 LN#50 7/2001, IEC60825-1)
Also Known As
SFP-10G-LRM=
FAQs
Q: Does the SFP-10G-LRM need a licence or subscription?
A: No. No licence or subscription is required. The module simply plugs into a compatible SFP+ port.
Q: Do I need a mode conditioning patch cord?
A: A mode conditioning patch cord is required when running over FDDI-grade, OM1 or OM2 multimode fibre. It is not required over OM3 or OM4 fibre.
Q: What power does it draw?
A: It draws 1 W maximum from the host SFP+ port. No external power is needed.
Q: Which Cisco platforms support it?
A: It is supported on many platforms, including Catalyst 2960, 3560, 3750, 3850 and 4500 series, Nexus 2000, 3000, 4000 and 9000 series, ASR, 7600, CRS, MDS 9000 and UCS. Not every platform supports every module, so check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix.
Q: How does it differ from other 10G SFP+ optics?
A: The LRM variant runs at 1310 nm and is designed to reuse legacy multimode fibre for up to 220 m, while also reaching up to 300 m over single-mode fibre. SR optics need newer OM3 or OM4 multimode and LR optics need single-mode fibre.
