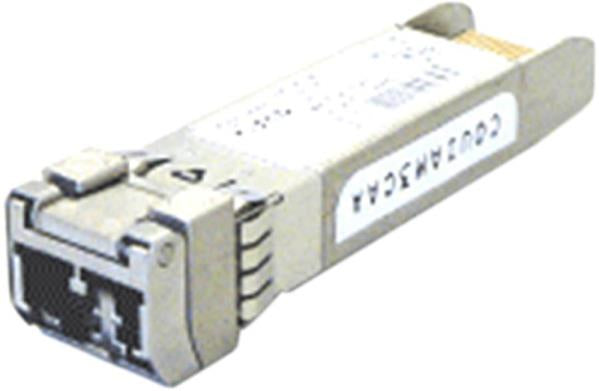

Cisco SFP-10G-LR-X | 10G SFP+ Transceiver, Single-Mode, 10km, Extended Temp
SKU:SFP-10G-LR-X
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The SFP-10G-LR-X is a multirate 10GBASE-LR SFP+ optical transceiver for single-mode fibre links up to 10 km. It is the extended-temperature version of the SFP-10G-LR, suited to 10G uplinks and long-reach connections, particularly where the equipment sits in warmer or harsher thermal environments.
It operates at 1310 nm over standard G.652 single-mode fibre using a duplex LC connector. Transmit power is -8.2 to +0.5 dBm and receive power is -14.4 to +0.5 dBm, with NRZ signalling. The extended operating temperature range of -5 to 85 C is what separates it from the standard SFP-10G-LR. Beyond 10GBASE-LR it also supports 10GBASE-LW and OTU2/OTU2e.
It is listed for use with Cisco Catalyst 9300 Series switches and the C9300-NM-8X network module.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Multirate support for 10GBASE-LR, 10GBASE-LW and OTU2/OTU2e
- Extended temperature operation for harsher thermal environments
- Up to 10 km reach on standard single-mode fibre
- Duplex LC connector for standard single-mode patching
- Suited to Catalyst 9300 Series switches and the C9300-NM-8X network module
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Type: 10GBASE-LR SFP+ transceiver, multirate
- Wavelength: 1310 nm
- Fibre type: Single-mode fibre (SMF, G.652)
- Connector: Duplex LC
- Maximum link length: 10 km
- Operating temperature: Extended range (eTemp), -5 to 85 C
- Transmit power: -8.2 to +0.5 dBm
- Receive power: -14.4 to +0.5 dBm
- DSP technology: NRZ
- Standards supported: 10GBASE-LR, 10GBASE-LW, OTU2/OTU2e
FAQs
Q: What fibre type does the SFP-10G-LR-X need?
A: It runs over standard single-mode fibre (G.652) with duplex LC connectors, at 1310 nm, for links up to 10 km.
Q: How does the SFP-10G-LR-X differ from the SFP-10G-LR?
A: It is the extended-temperature version. It operates across -5 to 85 C, which suits harsher thermal environments, while keeping the same 10GBASE-LR reach and fibre requirements.
Q: What equipment does it work with?
A: It is listed for Cisco Catalyst 9300 Series switches and the C9300-NM-8X network module. Check your switch's transceiver compatibility list for other platforms.
Q: Which standards does it support?
A: It is a multirate module supporting 10GBASE-LR, 10GBASE-LW and OTU2/OTU2e.
