Cisco SFP-10G-ER-S | 10GBASE-ER SFP+ Transceiver, SMF 1550nm, 40km, S-Class
SKU:SFP-10G-ER-S
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

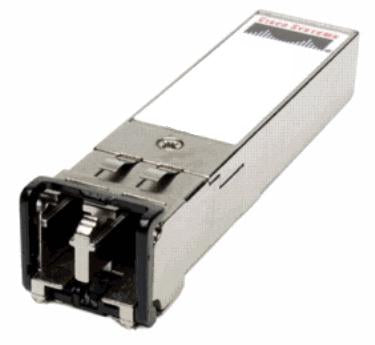

The SFP-10G-ER-S is an S-Class 10GBASE-ER SFP+ optical transceiver from the Cisco 10GBASE SFP+ module range. It carries 10 Gigabit Ethernet over standard single-mode fibre (G.652) at 1550nm, reaching links of up to 40 km. It suits data centre, enterprise wiring closet and service provider transport applications that need 10GbE over long single-mode runs.
The module uses a dual LC/PC connector and the SFP+ form factor, and draws a maximum of 1.5 W from the host port. The transmit and receive wavelength range is 1530 to 1565 nm, with transmit power between -4.7 dBm and 4.0 dBm. As an S-Class, commercial temperature part it operates from 0 to 70 C and does not support FCoE. It is hot-swappable and supports digital optical monitoring for link diagnostics. A 5 dB fixed LC attenuator is required for links under 20 km.
The module is supported across a wide range of Cisco platforms, including Catalyst 2960, 3560, 3750, 3850 and 4500 series switches, Nexus 2000, 3000, 4000 and 9000 series, ASR 900, 1000 and 9000, ME 4900, CRS, NCS 6000, MDS 9000 and UCS. Not every device supports every module, so check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for your hardware.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable SFP+ module that plugs into an Ethernet SFP+ port
- Compact SFP+ form factor for high port density per chassis
- Digital optical monitoring for strong diagnostic capabilities
- Optical interoperability with 10GBASE XENPAK, X2 and XFP interfaces on the same link
- Cisco quality ID feature lets a Cisco platform identify whether the module is certified and tested by Cisco
- Compliant with IEEE 802.3 10-Gigabit Ethernet, SFP+ MSA SFF-8431, ITU-T G.709, G.975 and G.975.1
- Supports a pay-as-you-populate model for ease of technology migration
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Standard: 10GBASE-ER, 10 Gbps
- Form factor: SFP+
- Connector: Dual LC/PC (APC patch cords not supported)
- Wavelength: 1550 nm
- Wavelength range: 1530 to 1565 nm
- Cable type: Single-mode fibre (SMF G.652)
- Maximum distance: 40 km (links over 30 km are engineered links per IEEE 802.3ae)
- Minimum cabling distance: 2 m
- Transmit power: -4.7 dBm min, 4.0 dBm max
- Receive power: -15.8 dBm min, -1 dBm max
- Attenuator: 5 dB 1550nm fixed loss attenuator required for links under 20 km (15216-ATT-LC-5=)
- Power consumption: 1.5 W max
- Operating temperature: 0 to 70 C (commercial)
- Storage temperature: -40 to 85 C
- Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Weight: 75 grams or less
- FCoE support: No
- Digital optical monitoring: Supported
- Bail latch colour: Red
- Laser safety: Class 1 (21CFR-1040, IEC60825-1)
FAQs
Q: Does this transceiver need a licence or subscription?
A: No. The SFP-10G-ER-S is a passive optical module and needs no licence or subscription. It is powered by the host SFP+ port and draws a maximum of 1.5 W.
Q: Do I need an attenuator for short links?
A: Yes, for links under 20 km. A 5 dB 1550nm fixed loss LC attenuator (Cisco part 15216-ATT-LC-5=) is required to avoid overloading the receiver.
Q: Which fibre and connector does it use?
A: It uses standard single-mode fibre (G.652) with a dual LC/PC connector. APC patch cords are not supported.
Q: Which Cisco platforms support it?
A: It is supported on a wide range of Cisco platforms, including Catalyst 2960, 3560, 3750, 3850 and 4500, Nexus 2000, 3000, 4000 and 9000, ASR 900, 1000 and 9000, ME 4900, CRS, NCS 6000, MDS 9000 and UCS. Not every device supports every module, so check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix.
Q: What does S-Class mean for this module?
A: The S-Class version is a commercial temperature module (0 to 70 C) that does not support FCoE. Choose it for standard 10GbE links over single-mode fibre.
