Cisco

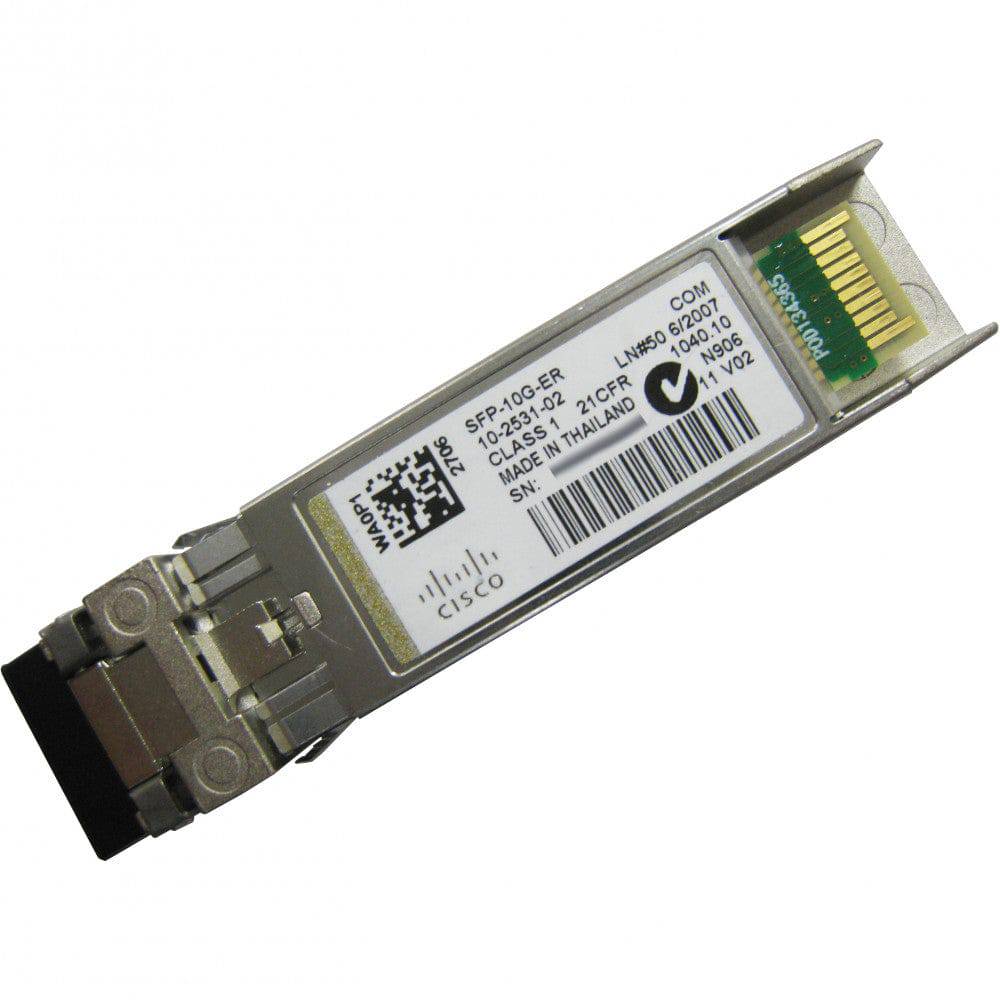

Cisco SFP-10G-ER | 10G SFP+ Transceiver, Single-Mode, 40km, LC

SKU:SFP-10G-ER

$9,766.08 inc. GST
$8,878.25 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 10GBASE-ER SFP+ optical transceiver from the Cisco 10GBASE SFP+ module range carries 10 Gigabit Ethernet over standard single-mode fibre at 1550nm with dual LC connectors. It is built for long-reach campus backbone, metro and data centre interconnect links, as well as enterprise or service provider aggregation where distance is the main requirement.

The module supports links up to 40 km over G.652 single-mode fibre. Transmit power ranges from -4.7 dBm to 4.0 dBm, and receive sensitivity is -15.8 dBm. Links under 20 km require a 5 dB 1550nm fixed loss attenuator (Cisco spare 15216-ATT-LC-5=). Maximum power consumption is 1.5 W, and the commercial temperature class covers 0 to 70°C. It is the standard commercial-temperature SFP-10G-ER, distinct from the S-Class and industrial-temperature variants. No licence or subscription is required.

The module plugs into SFP+ ports on supported Cisco switches and platforms, including Catalyst, Nexus, UCS fabric interconnects and ASR or ISR routers. Support varies by platform and software version, so check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix. It is optically interoperable with 10GBASE-ER XENPAK, X2 and XFP interfaces on the same link.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable, no need to power down the host to install or replace
- Compact SFP+ form factor for high port density per chassis
- Digital optical monitoring for link diagnostics
- Interoperates optically with 10GBASE XENPAK, X2 and XFP interfaces on the same link
- Supports a pay-as-you-populate deployment model
- Cisco Quality ID lets the host platform identify the module as Cisco certified and tested

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Standard: 10GBASE-ER
- Form factor: SFP+
- Data rate: 10 Gbps Ethernet
- Wavelength: 1550 nm (1530 to 1565 nm range)
- Fibre type: single-mode (SMF, G.652)
- Maximum distance: 40 km
- Connector: dual LC/PC
- Transmit power: -4.7 dBm to 4.0 dBm
- Receive power maximum: -1 dBm
- Receive sensitivity: -15.8 dBm
- Attenuation: 5 dB 1550nm fixed loss attenuator required for links under 20 km
- Power consumption: 1.5 W maximum
- Operating temperature: 0 to 70°C (commercial class)
- Storage temperature: -40 to 85°C
- Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Weight: 75 grams or less
- Bail latch colour: red
- Digital optical monitoring: supported

Also Known As

SFP-10G-ER=

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. It is powered by the host SFP+ port and needs no licence or subscription.

Q: Do I need an attenuator for shorter links?
A: Yes, for links under 20 km a 5 dB 1550nm fixed loss attenuator is required. Cisco part 15216-ATT-LC-5= is the matching spare.

Q: Which devices does it work with?
A: It fits SFP+ ports on supported Cisco Catalyst and Nexus switches, UCS fabric interconnects and ASR or ISR routers. Support varies by platform and software version, so check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix.

Q: Can it link to older XENPAK, X2 or XFP modules?
A: Yes. It is optically interoperable with 10GBASE-ER XENPAK, X2 and XFP interfaces, provided both ends are 10GBASE-ER.

Q: How does this differ from SFP-10G-ER-S and SFP-10G-ER-I?
A: SFP-10G-ER is the standard commercial-temperature module covering 0 to 70°C. SFP-10G-ER-S is the S-Class version without FCoE support, and SFP-10G-ER-I is the industrial-temperature multirate version.
