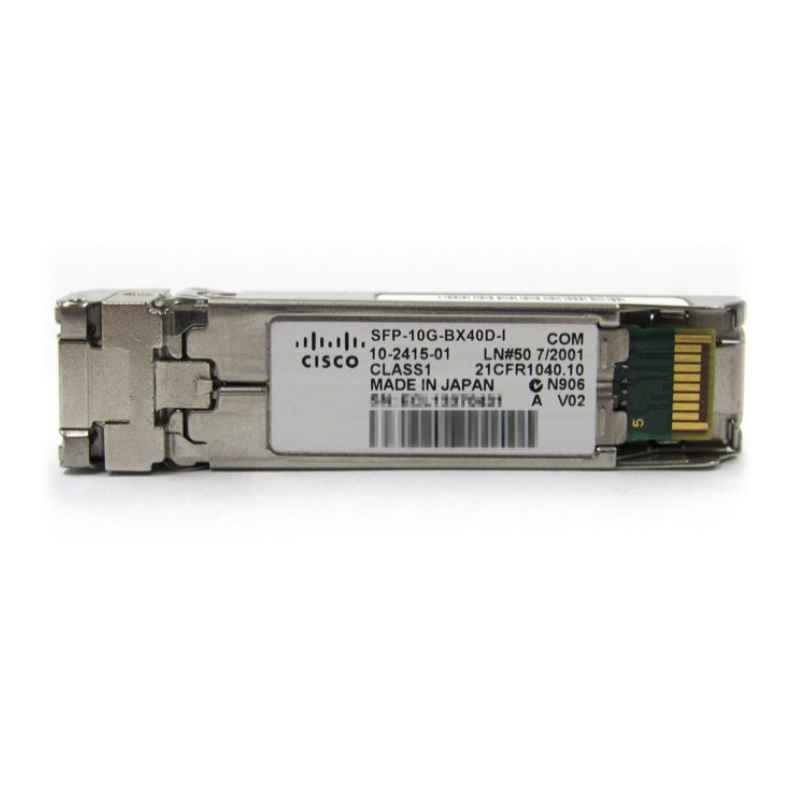

Cisco SFP-10G-BX40D-I | 10G SFP+ BiDi Transceiver, BX40-D, 40km, Industrial
SKU:SFP-10G-BX40D-I
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The SFP-10G-BX40D-I is a 10GBASE-BX40-D single-fibre bidirectional SFP+ transceiver from the Cisco 10GBASE SFP+ module range. It carries 10 Gigabit Ethernet over a single strand of standard G.652 single-mode fibre for up to 40 km, which suits point-to-point links where fibre is scarce and equipment sits in industrial or harsh-temperature environments such as Cisco IE industrial switches.
This is the downstream end of a BX40 pair. It transmits at 1330 nm (1320 to 1340 nm) and receives at 1270 nm (1260 to 1280 nm), with transmit power from -2.7 to 4.5 dBm and receive power from -21.2 to -9 dBm. The industrial temperature class covers -40 to 85 C, power draw is 1.2 W, and Digital Optical Monitoring to SFF-8472 reports Tx and Rx power, temperature, laser bias current and supply voltage. For links shorter than 5 km, a 15 dB attenuator is required.
It must be paired with an SFP-10G-BX40U-I at the far end of the link. Listed host platforms include Cisco Industrial Ethernet 5000, Catalyst IE3300 Rugged and Catalyst 6800 Supervisor Engine 6T, and the wider SFP+ platform list covers Catalyst 2960-X/XR, 3850 and 4500, Nexus 2000/3000/9000 and ASR 900/1000/9000. Not every device supports every module, so check the Cisco transceiver compatibility matrix for your host and software release.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Single-strand single-mode operation halves fibre usage compared with duplex optics
- Industrial operating temperature range suits harsh environments
- Digital Optical Monitoring reports Tx/Rx power, temperature, laser bias current and supply voltage
- Compliant with IEEE 802.3 10-Gigabit Ethernet and SFP+ MSA SFF-8431
- Class 1 laser safety compliance
- Powered from the host SFP+ port, no external supply needed
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Standard: 10GBASE-BX40-D, IEEE 802.3 10-Gigabit Ethernet
- Form factor: SFP+ (SFP+ MSA SFF-8431)
- Transmit wavelength: 1330 nm (1320 to 1340 nm)
- Receive wavelength: 1270 nm (1260 to 1280 nm)
- Cable type: single-mode fibre, G.652, single strand
- Maximum distance: 40 km
- Transmit power: -2.7 to 4.5 dBm
- Receive power: -21.2 to -9 dBm
- Power consumption: 1.2 W
- Operating temperature: -40 to 85 C (industrial class)
- Storage temperature: -40 to 85 C
- Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Weight: 75 g or less
- Digital Optical Monitoring: SFF-8472 MSA
- Laser safety: Class 1 (21CFR-1040, IEC60825-1)
- Bail colour: Red
- Attenuator: 15 dB required for links under 5 km
- Far-end pairing: SFP-10G-BX40U-I
FAQs
Q: Which module does this need at the other end of the link?
A: It must be paired with a Cisco SFP-10G-BX40U-I. The BX40-D transmits at 1330 nm and receives at 1270 nm, so the far end must do the opposite.
Q: Does it need a licence or subscription?
A: No. No licence or subscription is required. The module is powered from the host SFP+ port and draws 1.2 W.
Q: Can I use it on links shorter than 5 km?
A: Yes, but a 15 dB attenuator (15216 ATT LC 15=) is required on links under 5 km to avoid overloading the receiver.
Q: Which switches and routers is it listed for?
A: Cisco lists it on Industrial Ethernet 5000, Catalyst IE3300 Rugged and Catalyst 6800 Supervisor Engine 6T. Support also extends across many Catalyst, Nexus and ASR SFP+ platforms, so check the Cisco transceiver compatibility matrix for your host and software release.
Q: How does it differ from the SFP-10G-BX40U-I?
A: The BX40-D is the downstream end, transmitting at 1330 nm and receiving at 1270 nm. The BX40U-I is the upstream end of the pair, and both ends are needed to form a link.
