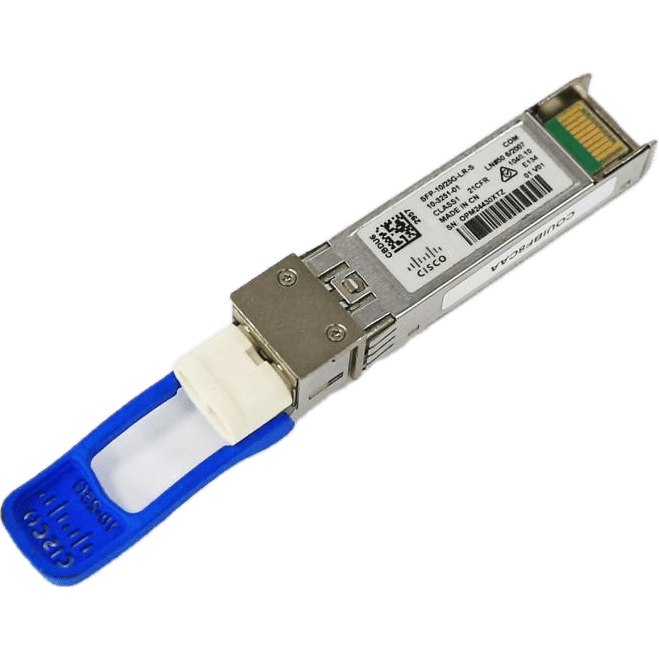

Cisco SFP-10/25G-LR-S | SFP28 10/25G-LR Transceiver, SMF 10km, 1310nm, 0-70C
SKU:SFP-10/25G-LR-S
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This is a dual-rate 10G/25G SFP28 long-reach optical transceiver from the Cisco 25GBASE SFP28 range. It suits data centre and high-performance computing links, including mixed 10G/25G migration on SFP28 ports, over single-mode fibre up to 10 km.
It operates as 10GBASE-LR or 25GBASE-LR over standard G.652 single-mode fibre, with a 1310 nm laser and a dual LC/PC connector. Reach is 10 km at both speeds. The commercial temperature range is 0 to 70 C and maximum power consumption is 1.3 W, drawn from the host port. The host port must support RS-FEC for 25G operation. Use patch cords with PC or UPC connectors only, as APC connectors are not supported.
The module is supported on Cisco switches with SFP28 ports, so check the Cisco Transceiver Module Group Compatibility Matrix for platform and software support. No licence or subscription is required.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Dual-rate operation at 10G and 25G over standard single-mode fibre
- Compliant with IEEE 802.3by and IEEE 802.3cc for high-speed connectivity
- Interoperable with other IEEE-compliant 25G interfaces where applicable
- Certified and tested on Cisco SFP28 ports for performance, quality and reliability
- Digital diagnostic monitoring per SFF-8472
- Supports FCoE with appropriate host software
- Laser Class 1 safety and RoHS 6 compliant
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
Also Known As
FAQs
Technical Specifications
- Form factor: SFP28
- Data rate: 10G and 25G (dual-rate)
- Standard: 10GBASE-LR / 25GBASE-LR
- Cable type: SMF G.652
- Wavelength: 1310 nm
- Maximum cable distance: 10 km (10G and 25G)
- Connector: Dual LC/PC (APC patch cords not supported)
- Max power consumption: 1.3 W
- Pull tab / bail latch colour: Blue
- 10G transmit power: +0.5 dBm max / -8.2 dBm min
- 10G receive power: +0.5 dBm max / -14.4 dBm min
- 10G transmit and receive wavelength: 1260 to 1355 nm
- 25G transmit power: +2.0 dBm max / -7.0 dBm min
- 25G receive power: +2.0 dBm max / -13.3 dBm min
- 25G transmit and receive wavelength: 1295 to 1325 nm
- FEC: RS-FEC required on host ports for 25G operation
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- FCoE: Supported with appropriate host software support
- Standards: SFF-8402, SFF-8472, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3-2015
- Safety: Laser Class 1 (21CFR-1040, IEC60825-1)
- RoHS: RoHS 6
Also Known As
SFP-10/25G-LR-S=
FAQs
Q: Does this transceiver need a licence or subscription?
A: No. No licence or subscription is required. It is powered from the host SFP28 port and draws a maximum of 1.3 W.
Q: Which ports and platforms is it compatible with?
A: It is supported on Cisco switches with SFP28 ports. Check the Cisco Transceiver Module Group Compatibility Matrix for platform and software support.
Q: Does the host port need any special support for 25G?
A: Yes. The host port must support RS-FEC for 25G operation.
Q: What fibre and patch cords should I use?
A: Use standard G.652 single-mode fibre with dual LC patch cords that have PC or UPC connectors. APC connectors are not supported.
Q: How does it differ from other SFP28 transceivers?
A: This is the dual-rate 10/25GBASE-LR version for single-mode fibre, with 10 km reach at both speeds, a 1310 nm laser and a commercial 0 to 70 C temperature range.
