Cisco

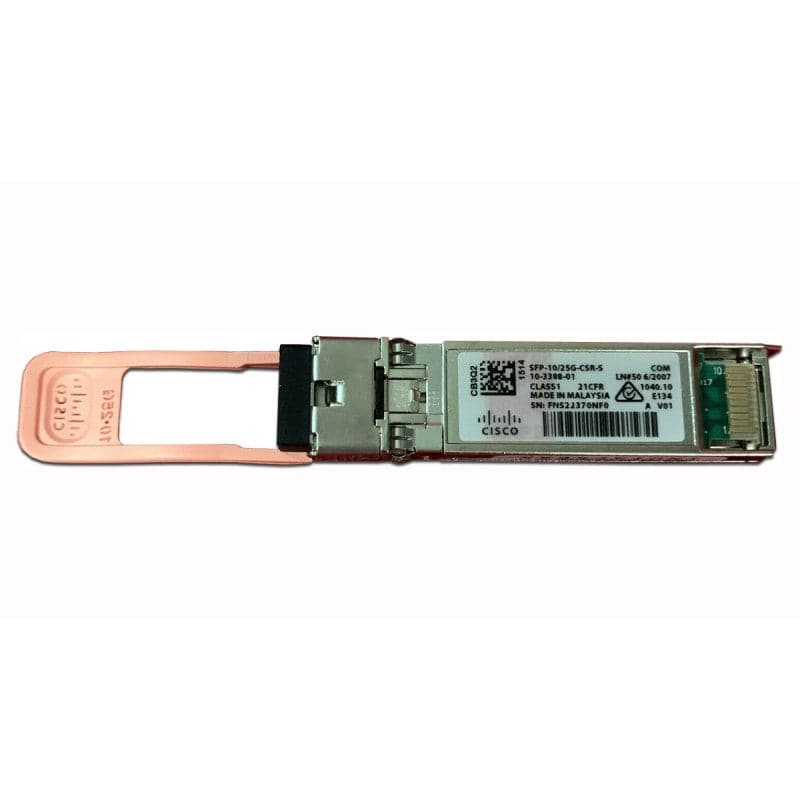

Cisco SFP-10/25G-CSR-S | 10/25G SFP28 Transceiver, MMF 850nm, 300/400m, LC

SKU:SFP-10/25G-CSR-S

$725.00 USD
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 10/25GBASE-CSR is a dual-rate SFP28 optical transceiver for multimode fibre, built for data centre and high-performance computing links. A single module runs at either 10G or 25G, so it suits server-to-switch and switch-to-switch connections and makes migrating from 10G to 25G straightforward without changing optics.

It uses an 850 nm laser (840 to 860 nm range) with a dual LC/PC connector over 50 micron multimode fibre. Reach is 300m on OM3 and 400m on OM4, depending on fibre quality, with 82m at 10G and 70m at 25G on OM2. Maximum power consumption is 1.2 W, drawn from the host SFP28 port. Operating temperature is 0 to 70 C, and digital diagnostics monitoring follows SFF-8472. No licence or subscription is required.

It is supported on Cisco switches with SFP28 ports. At 25G, RS-FEC should be enabled on the host port for full reach. Only patch cords with PC or UPC connectors are supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual-rate operation: supports both 10G and 25G on the same SFP28 module
- Compliant with IEEE 802.3by (25G) and IEEE 802.3cc
- Supports FCoE with appropriate host software
- Digital diagnostics monitoring per SFF-8472
- Low power draw of 1.2 W maximum from the host port
- Interoperable with other IEEE-compliant 25G interfaces where applicable

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Form factor: SFP28
- Data rate: 10G / 25G dual-rate
- Standard: 10/25GBASE-CSR
- Wavelength: 850 nm
- Transmit and receive wavelength range: 840 to 860 nm
- Fibre type: Multimode (OM2/OM3/OM4/OM5)
- Fibre core size: 50.0 microns
- Reach OM2: 82m at 10G, 70m at 25G
- Reach OM3: 300m
- Reach OM4: 400m
- Reach OM5: 400m
- Connector: Dual LC/PC
- Transmit power at 10G: -7.3 to +2.4 dBm
- Receive power at 10G: -9.9 to +2.4 dBm
- Transmit power at 25G: -6 to +2.4 dBm
- Receive power at 25G: -8.7 to +2.4 dBm
- Max power consumption: 1.2 W
- Pull tab colour: Peach
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Standards: IEEE 802.3by, IEEE 802.3, SFF-8402, SFF-8472
- Laser safety: Class 1
- RoHS: RoHS 6

Also Known As

SFP-10/25G-CSR-S=

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. It requires no licence or subscription and is drawn entirely from the host SFP28 port.

Q: Is FEC required at 25G?
A: Full reach at 25G needs RS-FEC enabled on the host port. With BASE-R FEC reach is 70m on OM3 and 100m on OM4, and without FEC it is 30m on OM3 and 50m on OM4. FEC is not required at 10G.

Q: What cable connectors are supported?
A: It uses a dual LC/PC connector. Patch cords with APC connectors are not supported, so use PC or UPC connectors only.

Q: Which platforms does it work with?
A: It is supported on Cisco switches with SFP28 ports. Check the Cisco Transceiver Module Group (TMG) Compatibility Matrix for supported platforms and software versions.

Q: Can I link it to a 10G-SR optic on the other end?
A: Interoperating with an IEEE 10G-SR optic may overload the receiver. Check the Cisco Optics-to-Optics interoperability matrix before pairing them.
