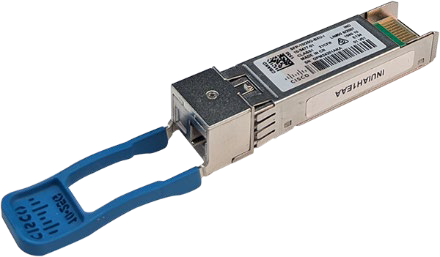

Cisco SFP-10/25G-BXU-I | 10/25G SFP28 BiDi Transceiver, 10km, Tx 1270nm, iTemp

SKU:SFP-10/25G-BXU-I

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is an industrial-temperature 10/25G SFP28 bidirectional transceiver for point-to-point links over a single strand of standard single-mode fibre. It suits sites where fibre is scarce, industrial and outdoor-cabinet installations, and mobile fronthaul (CPRI) applications, with a -40 to 85 C operating range.

The module runs 10GBASE-LR/BR10 or 25GBASE-BR10 over SMF G.652 for up to 10 km, and up to 15 km as an engineered link with insertion loss below 8 dB and RS-FEC. It is the upstream end of a BiDi pair, transmitting at 1270 nm (1260 to 1280 nm) and receiving at 1330 nm (1320 to 1340 nm). Maximum power consumption is 1.5 W, drawn from the host port, and it uses a dual LC/PC connector. No licence or subscription is required.

It must be paired with an SFP-10/25G-BXD-I at the far end of the link. The host SFP28 ports need RS-FEC for full 25G reach, and only PC or UPC patch cords are supported, not APC. Check the Cisco Transceiver Module Group Compatibility Matrix for supported platforms and software releases.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Single-fibre BiDi operation halves fibre strand usage versus a duplex link
- Supports both 10G and 25G operation from one module
- Industrial temperature range (-40 to 85 C) for harsh environments
- Supports CPRI data rate options 7 to 10 for fronthaul applications
- Diagnostic monitoring per SFF-8472
- Certified and tested on Cisco SFP28 ports for performance, quality and reliability
- Interoperable with other IEEE-compliant 25G interfaces where applicable

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: SFP28, single-fibre bidirectional (BiDi)
- Data rates: 10G (10GBASE-LR/BR10) and 25G (25GBASE-BR10)
- Cable type: SMF G.652
- Reach: 10 km (up to 15 km as an engineered link with insertion loss below 8 dB and RS-FEC)
- Wavelength: Tx 1270 nm / Rx 1330 nm
- Tx wavelength range: 1260 to 1280 nm
- Rx wavelength range: 1320 to 1340 nm
- 10G transmit power: +0.5 dBm max / -8.2 dBm min
- 10G receive power: +0.5 dBm max / -16.2 dBm min
- 25G transmit power: +2.0 dBm max / -7.0 dBm min
- 25G receive power: +2.0 dBm max / -15.0 dBm min
- Connector: Dual LC/PC (APC patch cords not supported)
- Max power consumption: 1.5 W
- Operating temperature: -40 to 85 C
- Storage temperature: -40 to 85 C
- Pull tab colour: Blue
- Standards: IEEE 802.3by, IEEE 802.3cc, IEEE 802.3cp, SFF-8402, SFF-8472 (DOM)
- Safety: Laser Class 1 (IEC 60825-1, 21CFR-1040)
- Compliance: RoHS 6

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. No licence or subscription is required.

Q: Which module does it pair with?
A: It is the upstream end of a BiDi pair and must connect to an SFP-10/25G-BXD-I at the far end over a single strand of single-mode fibre.

Q: Does it need external power?
A: No. It draws a maximum of 1.5 W from the host SFP28 port and needs no external power.

Q: What FEC does the host port need for 25G?
A: Host ports need RS-FEC for full 25G reach. With BASE-R FEC the reach is 3.5 km, and without FEC it is 1.5 km, depending on the application.

Q: Which patch cords can I use?
A: It uses dual LC connectors with PC or UPC patch cords. APC patch cords are not supported.

Q: How do I confirm platform compatibility?
A: Check the Cisco Transceiver Module Group (TMG) Compatibility Matrix for supported platforms and software releases.
